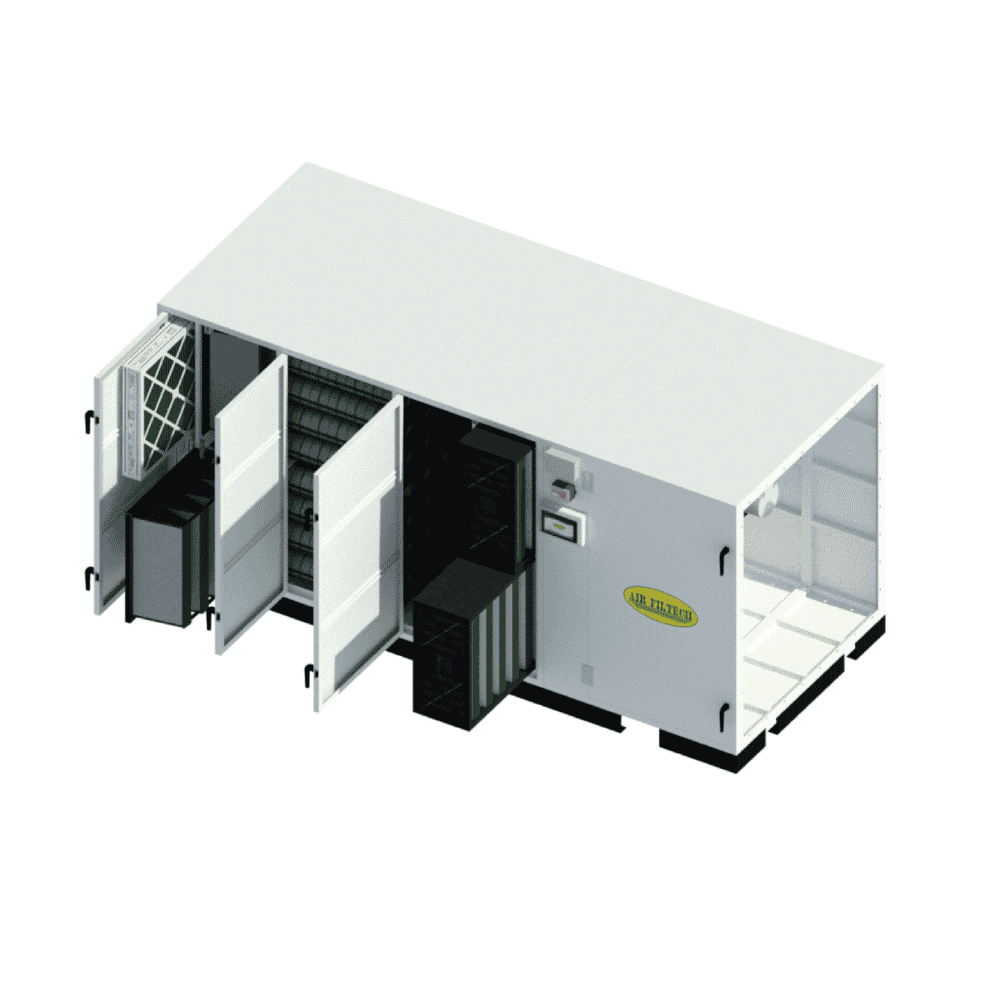

AP-GFCH (GFCH/GF0H/GFC0/GF00) – AHU Air purifiers

Name: AP-GFCH (GFCH/GF0H/GFC0/GF00) - AHU Air purifiers - Airfiltech
SKU: AP-EN

In Stock

Modular industrial air purifier with 2-4 filtration stages (pre-filter/fine filter/carbon/HEPA), specialized in removing acids, corrosive gases, VOC, ozone, formaldehyde, and fine dust for large-scale facilities.

Download Catalogue

Category: Industrial Tag: Air Filtech SKU: AP-EN

Description

• 2–4 stage air purifier (pre-filter, fine filter, Carbon filter, HEPA/EPA filter depending on configuration).
• Reduces bacteria, viruses, PM2.5, PM1, and harmful gases (VOC, Formaldehyde, SO2…).
• Applications: removal of acids, corrosive gases, VOC, ozone, formaldehyde and fine dust for dusty environments and large-scale facilities such as pharmaceutical, food, heavy industry, paper mills, welding shops, control rooms, data centers & switchgear rooms, IVF clinics, healthcare facilities.
• Advanced options: control and monitoring via TouchPAD HMI, flexible control via potentiometer/sensor/constant value, BMS connectivity, on/off scheduling.
• Differential pressure alarm for filter inspection and replacement; energy-efficient, low-noise EC fan.

Technical Specifications

Advantages:

4 giai stage filter: filter coarse, filter tinh, filter Carbon, filter HEPA.

Reduce bacteria, virus, PM2.5, PM1, Khi toxic (VOC, Formaldehyde, SO2…)

Options upgrade high: Easy easy control and monitor vent via TouchPAD HM. Functions control flexible operation via Potentiometer pressure, Sensor sensor or value value space constant.

Construction connect BMS. Che air time: setting setting time on/off.
Indicator dynamic differential pressure: test tra and replace filter air.
EC fan: motor ultra energy saving, air noise low than.

Applications:

Specialized air purifier designed to remove acids, corrosive gases, VOCs, ozone, formaldehyde, and fine particulate matter (PM) for the dusty environments and large-scale facilities such as facility facility pharmaceuticals, food plants, heavy industry, paper mills, welding workshops, control rooms, data centers & switchgear rooms, IVF clinics, healthcare facilities,…

Specification Table

AP-GFCH (4 giai stage filter, equipped 176)

Model	*Dimensions (WxHxL) mm**	Airflow/differential pressure (m3/h/Pa)**	Room area* (m2)**	Filter G4 44/46mm 24×12	Filter G4 44/46mm 24×24	Filter tinh 292/380mm 24×12	Filter tinh 292/380mm 24×24	Filter Carbon Med CB-C 600mm	Filter HEPA 292mm 24×12	Filter HEPA 292mm 24×24
AP-GFCH-1005-SS430-UV*s	620x550x3790	1700/570	121	1		1		8	1
AP-GFCH-0510-SS430-UV*s	450x720x3790	1700/570	121	1		1		8	1
AP-GFCH-1010-SS430-UV*s	620x720x3790	3400/570	243		1		1	16		1
AP-GFCH-1510-SS430-UV*s	930x720x3790	5100/570	364	1	1	1	1	24	1	1
AP-GFCH-2010-SS430-UV*s	1240x720x4020	6800/570	486		2		2	32		2
AP-GFCH-1020-SS430-UV*s	630x1340x4020	6800/570	486	2	2		2	32		2
AP-GFCH-1520-SS430-UV*s	930x1340x4020	10200/570	729	2	2	2	2	48	2	2
AP-GFCH-2020-SS430-UV*s	1240x1340x4020	13600/570	971	2	4		4	64		4
AP-GFCH-2520-SS430-UV*s	1550x1340x4020	17000/570	1214		4	2	4	80	2	4
AP-GFCH-3020-SS430-UV*s	1860x1340x4020	20400/570	1457		6		6	112		6
AP-GFCH-2030-SS430-UV*s	1240x1960x4020	20400/570	1457	3	6	3	6	112		6
AP-GFCH-2530-SS430-UV*s	1550x1960x4020	25500/570	1821		6		6	136	3	6
AP-GFCH-3030-SS430-UV*s	1860x1960x4020	30600/570	2186		9		9	114		9

AP-GF0H (3 giai stage filter – G4+Tinh+HEPA, equipped 177)

Model	*Dimensions (WxHxL) mm**	Airflow/differential pressure (m3/h/Pa)**	Room area* (m2)**	Filter G4 44/46mm 24×12	Filter G4 44/46mm 24×24	Filter tinh 600mm 24×12	Filter tinh 600mm 24×24	Filter HEPA 292mm 24×12	Filter HEPA 292mm 24×24
AP-GF0H-1005-SS430-UV*s	620x550x3370	1700/485	121	1		1		1
AP-GF0H-0510-SS430-UV*s	450x720x3370	1700/485	121	1		1		1
AP-GF0H-1010-SS430-UV*s	620x720x3370	3400/485	243		1		1		1
AP-GF0H-1510-SS430-UV*s	930x720x3370	5100/485	364	1	1	1	1	1	1
AP-GF0H-2010-SS430-UV*s	1240x720x3600	6800/485	486		2		2		2
AP-GF0H-1020-SS430-UV*s	630x1340x3600	6800/485	486		2		2		2
AP-GF0H-1520-SS430-UV*s	930x1340x3600	10200/485	729	2	2	2	2	2	2
AP-GF0H-2020-SS430-UV*s	1240x1340x3600	13600/485	971		4		4		4
AP-GF0H-2520-SS430-UV*s	1550x1340x3600	17000/485	1214	2	4	2	4	2	4
AP-GF0H-3020-SS430-UV*s	1860x1340x3600	20400/485	1457		6		6		6
AP-GF0H-2030-SS430-UV*s	1240x1960x3600	20400/485	1457		6		6		6
AP-GF0H-2530-SS430-UV*s	1550x1960x3600	25500/485	1821	3	6	3	6	3	6
AP-GF0H-3030-SS430-UV*s	1860x1960x3600	30600/485	2186		9		9		9

AP-GFC0 (3 giai stage filter – G4+Tinh+Filter VG 440, equipped 177)

Model	*Dimensions (WxHxL) mm**	Airflow/differential pressure (m3/h/Pa)**	Room area* (m2)**	Filter G4 44/46mm 24×12	Filter G4 44/46mm 24×24	Filter tinh 370mm 24×12	Filter tinh 370mm 24×24	Filter VG 440
AP-GFC0-1005-SS430-UV*s	620x550x3030	1700/255	121	1		1		8
AP-GFC0-0510-SS430-UV*s	450x720x3030	1700/255	121	1		1		8
AP-GFC0-1010-SS430-UV*s	620x720x3030	3400/255	243		1		1	16
AP-GFC0-1510-SS430-UV*s	930x720x3030	5100/255	364	1	1	1	1	24
AP-GFC0-2010-SS430-UV*s	1240x720x3260	6800/255	486		2		2	32
AP-GFC0-1020-SS430-UV*s	630x1340x3260	6800/255	486		2		2	32
AP-GFC0-1520-SS430-UV*s	930x1340x3260	10200/255	729	2	2	2	2	48
AP-GFC0-2020-SS430-UV*s	1240x1340x3260	13600/255	971		4		4	64
AP-GFC0-2520-SS430-UV*s	1550x1340x3260	17000/255	1214	2	4	2	4	80
AP-GFC0-3020-SS430-UV*s	1860x1340x3260	20400/255	1457		6		6	96
AP-GFC0-2030-SS430-UV*s	1240x1960x3260	20400/255	1457		6		6	96
AP-GFC0-2530-SS430-UV*s	1550x1960x3260	25500/255	1821	3	6	3	6	120
AP-GFC0-3030-SS430-UV*s	1860x1960x3260	30600/255	2186		9		9	144

AP-GFC0 (3 giai stage filter – G4+Tinh+Filter CG 3500, equipped 178)

Model	*Dimensions (WxHxL) mm**	Airflow/differential pressure (m3/h/Pa)**	Room area* (m2)**	Filter G4 44/46mm 24×12	Filter G4 44/46mm 24×24	Filter tinh 370mm 24×12	Filter tinh 370mm 24×24	Filter CG 3500
AP-GFC0-1005-D3250-SS430-UV*s	620x550x3190	1700/255	121	1		1		8
AP-GFC0-0510-D3250-SS430-UV*s	450x720x3190	1700/255	121	1		1		8
AP-GFC0-1010-D3250-SS430-UV*s	620x720x3190	3400/255	243		1		1	16
AP-GFC0-1510-D3250-SS430-UV*s	930x720x3190	5100/255	364	1	1	1	1	24
AP-GFC0-2010-D3350-SS430-UV*s	1240x720x3420	6800/255	486		2		2	32
AP-GFC0-1020-D3350-SS430-UV*s	630x1340x3420	6800/255	486		2		2	32
AP-GFC0-1520-D3350-SS430-UV*s	930x1340x3420	10200/255	729	2	2	2	2	48
AP-GFC0-2020-D3550-SS430-UV*s	1240x1340x3420	13600/255	971		4		4	64
AP-GFC0-2520-D3550-SS430-UV*s	1550x1340x3420	17000/255	1214	2	4	2	4	80
AP-GFC0-3020-D3550-SS430-UV*s	1860x1340x3420	20400/255	1457		6		6	96
AP-GFC0-2030-D3550-SS430-UV*s	1240x1960x3420	20400/255	1457		6		6	96
AP-GFC0-2530-D3550-SS430-UV*s	1550x1960x3420	25500/255	1821	3	6	3	6	120
AP-GFC0-3030-D3550-SS430-UV*s	1860x1960x3420	30600/255	2186		9		9	144

AP-GF00 (2 giai stage filter – G4+Tinh, equipped 178)

Model	*Dimensions (WxHxL) mm**	Airflow/differential pressure (m3/h/Pa)**	Room area* (m2)**	Filter G4 44/46mm 24×12	Filter G4 44/46mm 24×24	Filter tinh 600mm 24×12	Filter tinh 600mm 24×24
AP-GF00-1005-SS430-UV*s	600x500x2720	1700/255	121	1		1
AP-GF00-0510-SS430-UV*s	450x700x2720	1700/255	121	1		1
AP-GF00-1010-SS430-UV*s	600x700x2720	3400/255	243		1		1
AP-GF00-1510-SS430-UV*s	900x700x2720	5100/255	364	1	1	1	1
AP-GF00-2010-SS430-UV*s	1200x700x2950	6800/255	486		2		2
AP-GF00-1020-SS430-UV*s	630x1300x2950	6800/255	486		2		2
AP-GF00-1520-SS430-UV*s	900x1300x2950	10200/255	729	2	2	2	2
AP-GF00-2020-SS430-UV*s	1200x1300x2950	13600/255	971		4		4
AP-GF00-2520-SS430-UV*s	1500x1300x2950	17000/255	1214	2	4	2	4
AP-GF00-3020-SS430-UV*s	1800x1300x2950	20400/255	1457		6		6
AP-GF00-2030-SS430-UV*s	1200x1900x2950	20400/255	1457		6		6
AP-GF00-2530-SS430-UV*s	1500x1900x2950	25500/255	1821	3	6	3	6
AP-GF00-3030-SS430-UV*s	1800x1900x2950	30600/255	2186		9		9
