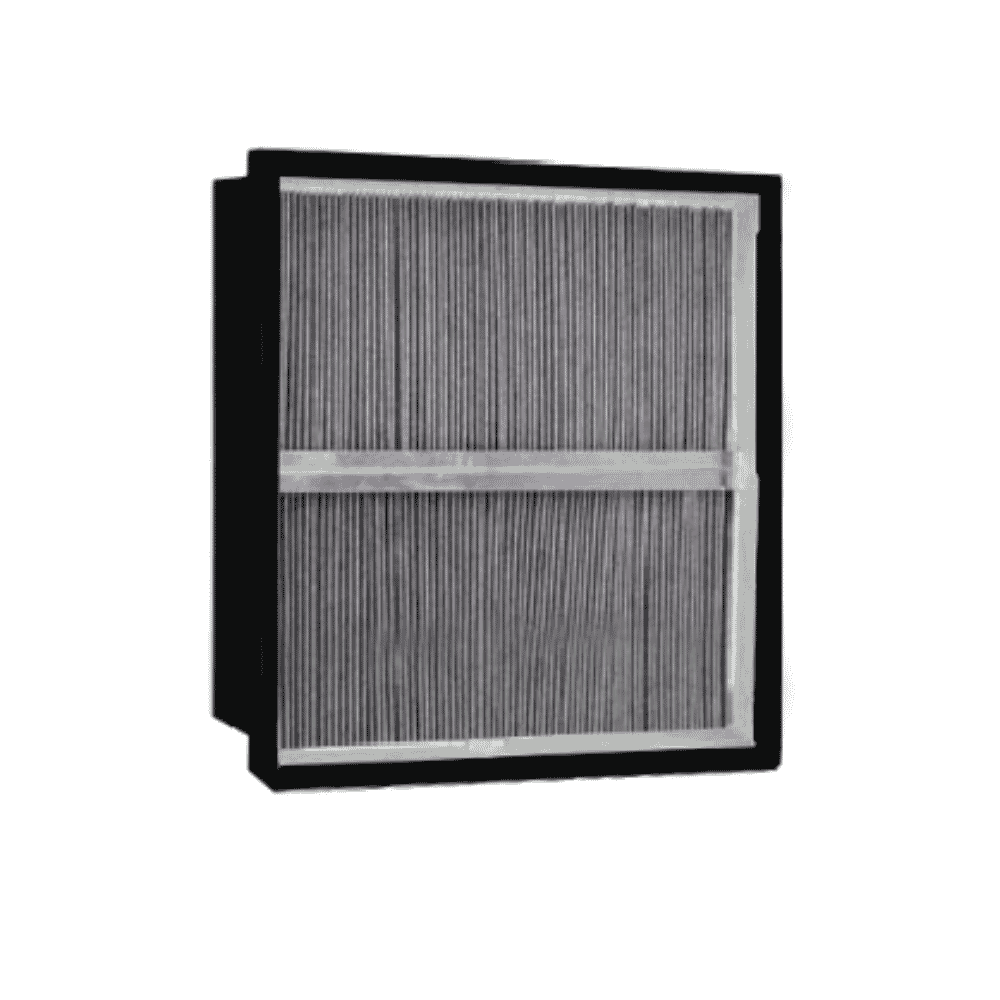

Light CB-HF-F7

Availability: In Stock

Pleated activated carbon odor-removal filter with Header Frame, adsorbing gaseous pollutants and odors for residential and industrial supply/exhaust air systems.

Category: Tag: SKU: Light CB-HF-F7-EN

Description

• Adsorbs gaseous pollutants and odors, installed in supply and exhaust air systems for both residential and engineered buildings.
• Simple modular construction, allowing multiple base frames to be combined into large-capacity filter banks.
• Various types of impregnated carbon can be used depending on specific odor/gas treatment requirements.
• Suitable for large-scale areas such as airports, hospitals, hotels, manufacturing plants and shopping centers thanks to high airflow capacity.
• Large filter surface area provides low pressure drop; an economical, single-use, easy-to-install and easy-to-remove solution for odor removal and corrosion control.
• Gas-phase and chemical adsorption media are available on request.

Technical Specifications

  1. Specification
  • Frame: Plastic
  • Filter media: Carbon (type fold pleat, type Header Frame)
  • Frame depth HF: simplify 25 mm
  • Protective mesh: grille air out
  • Gasket type: Polyurethane; position position gasket: grille air out
  • Maximum temperature: 50°C; air humidity relative relative: 50%
  • Filtration stage: II – III
  • Filter class F7 (EN 779:2012), area filter media: 3 – 6 m2
  • Airflow: 1.500 – 3.000 m3/h; differential pressure initial initial: 110 Pa
  • Weight: 3,00 – 5,00 kg
  1. Other options available upon request
  • Frame: Galvanized steel, SS304, SS316, Aluminum
  • Filter media: Rolled hot (Melt Laminated)
  • Type khung HF: None, double 20/25 mm, simplify 20 mm, dimensions dimensions depending adjust
  • Protective mesh: both two grille
  • Gasket type: None, Rubber, EPDM
  • Gasket position: None, grille air into

Specification Table

Model Code MGT Code Dimensions WxLxD (mm) Filter class Filter media area (m2) Airflow (m3/h) Initial pressure drop (Pa) Weight (kg)
LCH-F7-287x592x130-PC-3 512001M CL7PC03T1PC 0287x0592x130 F7 3,00 1500 110 3,00
LCH-F7-490x592x130-PC-5 512002M CL7PC05T1PC 0490x0592x130 F7 5,00 2800 110 4,00
LCH-F7-592x592x130-PC-6 512003M CL7PC06T1PC 0592x0592x130 F7 6,00 3000 110 5,00
