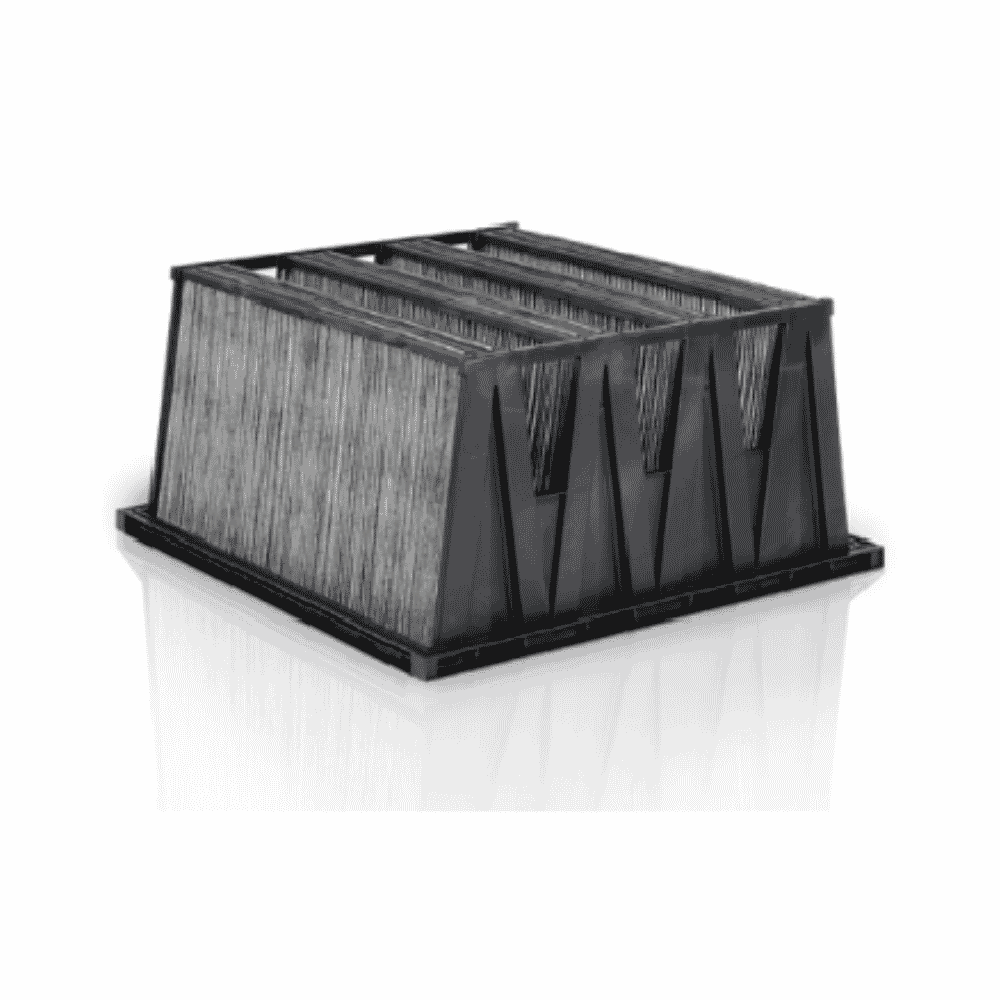

Light CB-V-F7

Availability: In Stock

Pleated activated carbon odor-removal filter (4V Rigid Bank), adsorbing gaseous pollutants and odors for residential and industrial supply/exhaust air systems (airports, hospitals, hotels, factories, shopping centers).

Category: Tag: SKU: Light CB-V-F7-EN

Description

• Adsorbs gaseous pollutants and odors, installed in supply and exhaust air systems for both residential and engineered buildings.
• Simple modular construction, allowing multiple base frames to be combined into large-capacity filter banks.
• Various types of impregnated carbon can be used depending on specific odor/gas treatment requirements.
• Suitable for large-scale areas such as airports, hospitals, hotels, manufacturing plants and shopping centers thanks to high airflow capacity.
• Large filter surface area provides low pressure drop; an economical, single-use, easy-to-install and easy-to-remove solution for odor removal and corrosion control.
• Gas-phase and chemical adsorption media are available on request.

Technical Specifications

  1. Specification
  • Frame: Plastic
  • Configuration: 4V Rigid Bank
  • Type filter media: Carbon (type fold pleat)
  • Frame depth HF: simplify 25 mm
  • Protective mesh: None (standard)
  • Maximum temperature: 50°C; air humidity relative relative: 50%
  • Filtration stage: II – III
  • Filter class F7 (EN 779:2012), area filter media: 5 – 9 m2
  • Airflow: 1.500 – 3.000 m3/h; differential pressure initial initial: 70 Pa
  • Weight: 3,50 – 6,00 kg
  1. Other options available upon request
  • Frame: Galvanized steel, SS304, SS316, Aluminum
  • Filter media: Rolled hot (Melt Laminated)
  • Type khung HF: None grille flange, double 20/25 mm, simplify 20 mm, dimensions dimensions depending adjust
  • Protective mesh: Mesh grille air out, mesh both two grille
  • Gasket type: None, Polyurethane, Rubber, EPDM
  • Gasket position: None, grille air out, grille air into

Specification Table

Model Code MGT Code Dimensions WxLxD (mm) Filter class Filter media area (m2) Airflow (m3/h) Initial pressure drop (Pa) Weight (kg)
LC4V-F7-287x592x292-PC-5 567101M CF7P4C05T0XX 0287x0592x292 F7 5,00 1500 70 3,50
LC4V-F7-490x592x292-PC-7 567102M CF7P4C07T0XX 0490x0592x292 F7 7,00 2800 70 4,50
LC4V-F7-592x592x292-PC-9 567103M CF7P4C09T0XX 0592x0592x292 F7 9,00 3000 70 6,00
