Light CB-Z-G4

In Stock

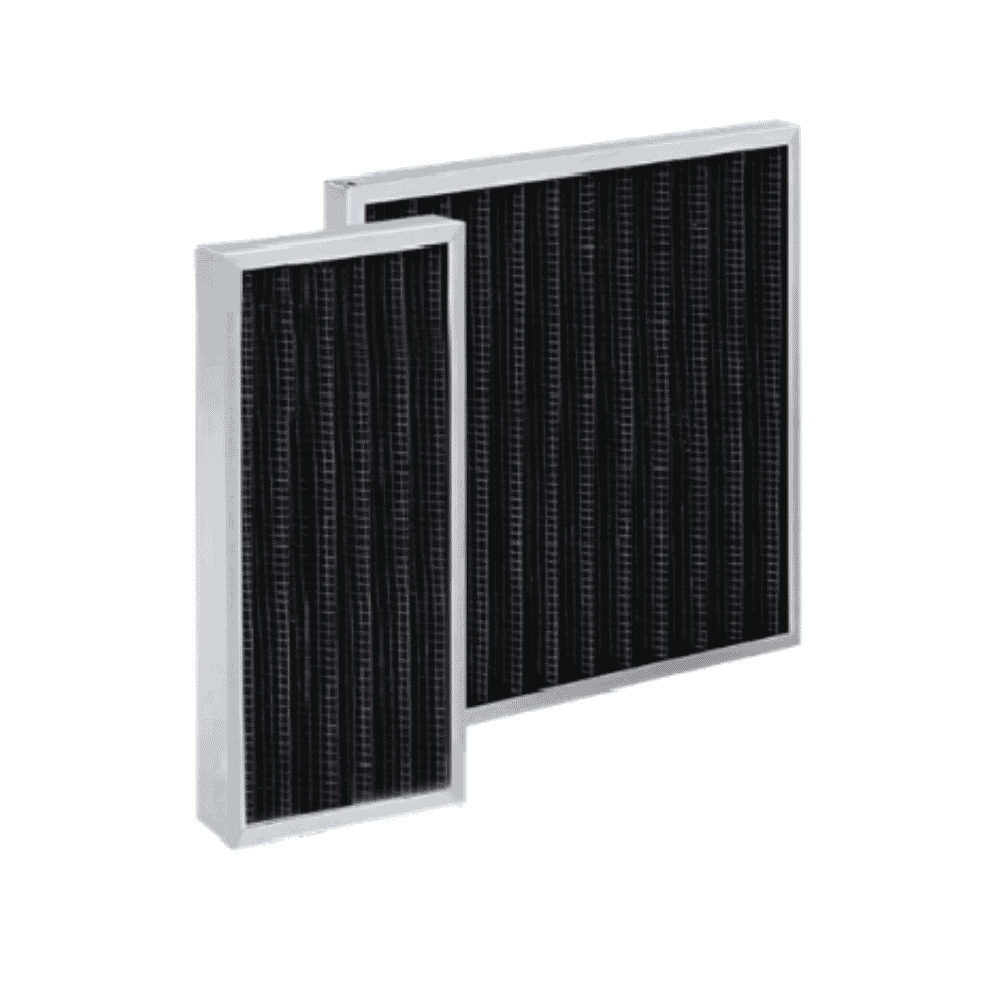

Z-Line pleated activated carbon odor-removal filter, high mechanical efficiency with correspondingly low pressure drop; requires a G4 pre-filter to protect the carbon layer.

Description

• Adsorbs gaseous pollutants and odors, installed in supply and exhaust air systems.
• Applications in residential and engineered buildings.
• Simple modular construction, allowing base frames to be easily combined into large filter banks.
• Various types of impregnated carbon can be combined; a G4 pre-filter is recommended upstream to protect the activated carbon layer.
• High mechanical filtration efficiency, low pressure drop, sturdy construction, easy to remove and maintain.

Technical Specifications

Specification

Frame: Galvanized steel
Filter media: Fiber Carbon, type fold Z-Line
Protective mesh: both two grille
Maximum temperature: 50°C; air humidity relative relative: 50%
Final pressure drop: 250 Pa
Filtration stage: II – III
Efficiency power trung average: 70% ≥ E3
Filter class G4 (EN 779:2012), area filter media: 0,30 – 0,60 m2
Airflow: 1.000 – 2.000 m3/h; differential pressure initial initial: 80 Pa
Weight: 1,00 – 2,00 kg

Other options available upon request

Frame: SS304, SS316, Aluminum
Filter media: clearance (space material)
Thickness khung: 48 mm, 24 mm

Specification Table

Model	Code	MGT Code	Dimensions WxLxD (mm)	Filter class EN 779:2012	Filter media area (m2)	Airflow (m3/h)	Initial pressure drop (Pa)	Weight (kg)
LCZ-G4-287x592x48-GC-22	5103001M	PF4GC30Z2	0287x0592x048	G4	0,30	1000	80	1,00
LCZ-G4-490x592x48-GC-22	5103002M	PF4GC30Z2	0490x0592x048	G4	0,50	1700	80	1,80
LCZ-G4-592x592x48-GC-22	5103003M	PF4GC30Z2	0592x0592x048	G4	0,60	2000	80	2,00
