Name: Med CB-Box - Airfiltech
SKU: Med CB-Box-EN

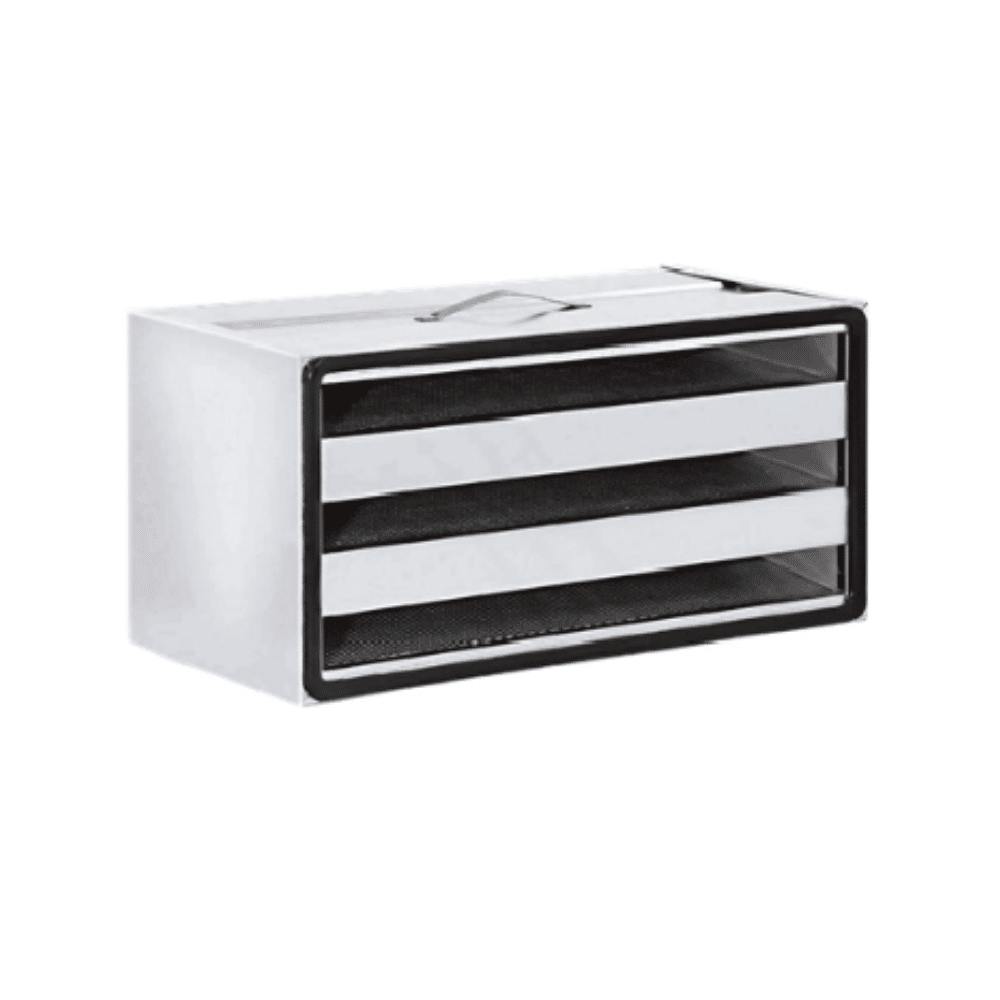

Med CB-Box

In Stock

V-Bank activated carbon filter containing activated carbon pellets, adsorbing toxic gases, odors and organic compounds; sturdy galvanized steel frame.

Description

• V-Bank activated carbon filter, containing organic activated carbon pellets.
• Used to adsorb odors, gases and organic vapors in air treatment/ventilation systems.
• Galvanized steel frame, modular design for easy installation and replacement.

Technical Specifications

Specification

Type filter: Unit filter activated carbon shaped V (Rigid V-Bank), model MCB2V/MCB5V
Frame: Galvanized steel
Filter media: Carbon organic facility
Thickness coating material: 25 mm
Dimensions tham reference: 305x610x292 mm (2V), 610x610x292 mm (5V)
Airflow: spacing 1.400 m3/h (2V) – 2.800 m3/h (5V)
Initial pressure drop: 250 Pa
Number quality panel adsorb consumption: 4 panel (2V), 10 panel (5V)
Weight carbon: 23 kg (2V), 50 kg (5V)

Certification
Other options available upon request

With sensor can Med CB-V use khung plastic (model MC4V) replacement for khung steel galvanized zinc, same filter media carbon organic facility.

Specification Table

Model	Code	MGT Code	Width W (mm)	Cao H (mm)	Thickness D (mm)	Airflow (m3/h)	Initial pressure drop (Pa)	Thickness coating material (mm)	Number quality panel adsorb consumption	Weight Carbon (kg)
MCB2V-305x610x292-GO	560001M	CBGCO2V	305	610	292	1400	250	25	4	23
MCB5V-610x610x292-GO	560002M	CBGCO5V	610	610	292	2800	250	25	10	50
