Med CB-C

In Stock

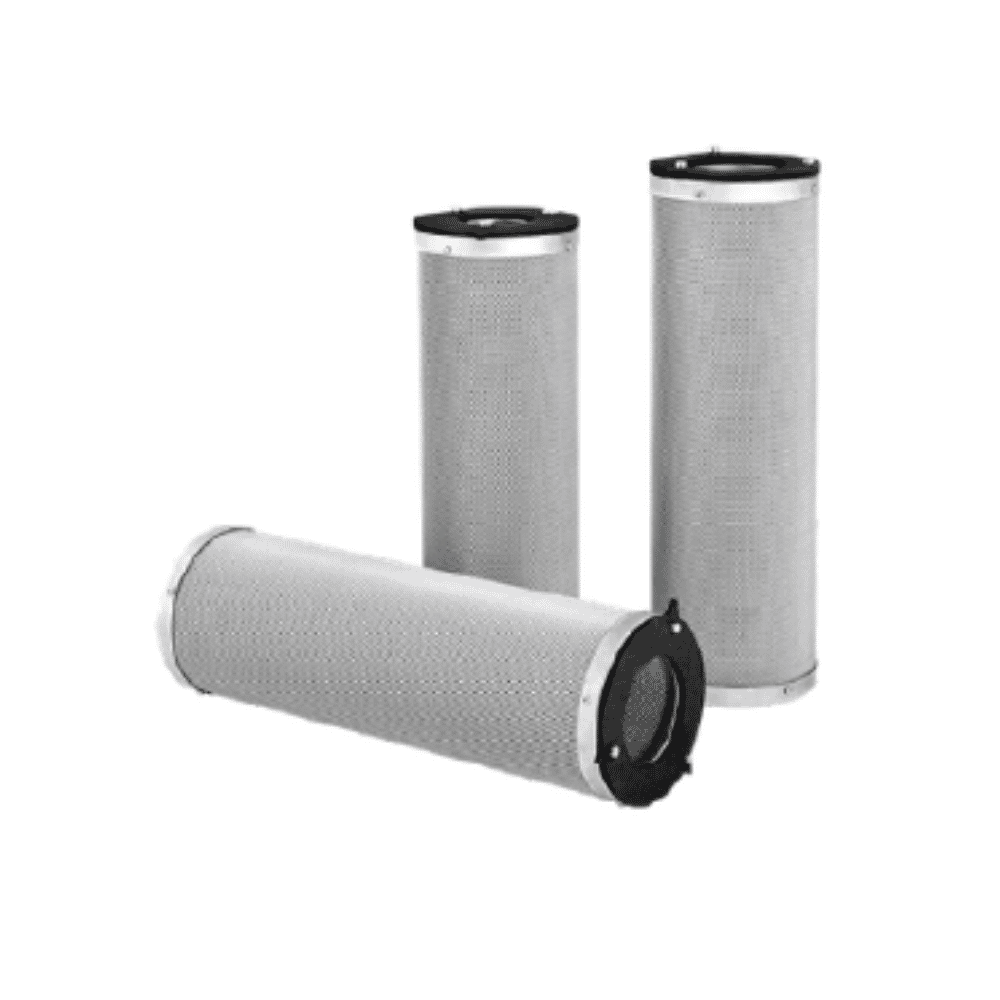

Pellet-loaded cylindrical activated carbon filter element (cartridge), used individually or installed in the Med CB-C Set frame; available in multiple diameters and heights.

Description

• Adsorbs gaseous pollutants and odors using a cylindrical activated carbon filter element.
• Installed in supply and exhaust air systems for residential and industrial buildings.
• Used as a replacement/additional element for the Med CB-C mounting frame or the Med CB-C Set system.
• Contains organic activated carbon pellets, easy to insert and remove during maintenance.

Technical Specifications

Specification

Frame: Galvanized steel
Filter media: Carbon organic facility
Latch: Thin
Layer packaging surrounding: without filter preliminary unit by fiber total compound
Dimensions OD x H: 140×400, 145×450, 160×400, 140×600, 145×600, 160×600 mm
Airflow: 215 – 380 m3/h
Initial pressure drop: 120 – 280 Pa
Weight: 3,25 – 6,90 kg

Other options available upon request

Frame: SS304, SS316, Aluminum
Filter media: Potassium Permanganate, clearance (space material)
Latch: Thickness, None, Option adjust
Layer packaging surrounding: with coating filter coarse by fiber total compound

Specification Table

Model	Code	MGT Code	Dimensions OD x H (mm)	Airflow (m3/h)	Initial pressure drop (Pa)	Weight (kg)
MCC-140×400-CO	568101M	CCG140CO400	140×400	215	230	3,25
MCC-145×450-CO	568102M	CCG145CO450	145×450	215	180	3,25
MCC-160×400-CO	568103M	CCG160CO400	160×400	380	280	4,6
MCC-140×600-CO	568201M	CCG140CO600	140×600	215	160	4,9
MCC-145×600-CO	568202M	CCG145CO600	145×600	215	120	4,9
MCC-160×600-CO	568203M	CCG160CO600	160×600	380	170	6,9
