Airfiltech

Med CB-Pan

Brands:
Availability: In Stock

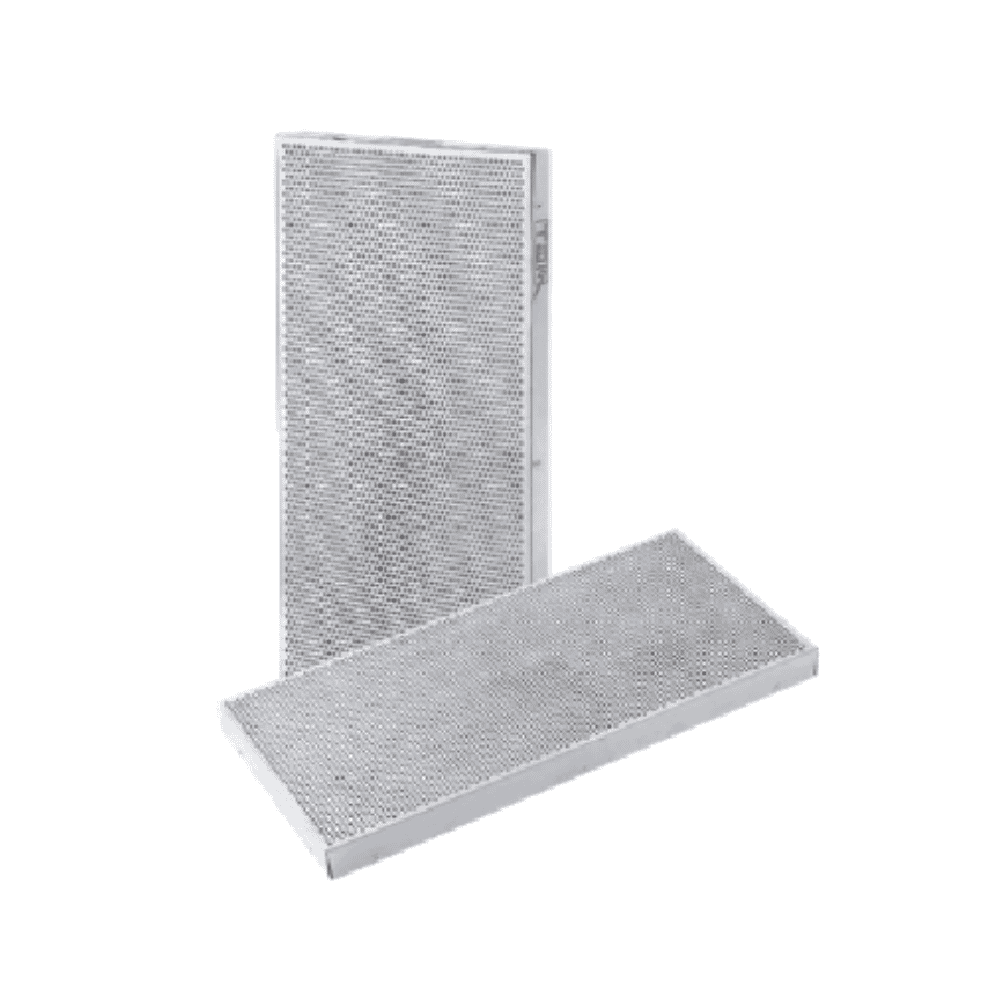

Pellet-loaded activated carbon odor-removal filter (carbon tray type), refillable and reusable cartridge filter elements; sturdy construction, low pressure drop.

Category: Tag: SKU: Med CB-Pan-EN

Description

• Adsorbs gaseous pollutants and odors, installed in supply and exhaust air systems.
• Applications in residential and engineered buildings.
• Simple modular construction, allowing base frames to be easily combined into large filter banks.
• Tray-type filter elements (cartridges) can be refilled with fresh activated carbon, replaced and reused multiple times.
• A G4 pre-filter is recommended upstream to protect the activated carbon layer.
• High mechanical efficiency, low pressure drop, sturdy construction, easy to install and remove.

Technical Specifications

  1. Specification
  • Frame: Galvanized steel
  • Filter media: Carbon organic facility
  • Maximum temperature: 50°C; air humidity relative relative: 50%
  • Final pressure drop: 250 Pa
  • Filtration stage: II – III
  • Dimensions W x L x D: 287x592x48, 490x592x48, 592x592x48 mm
  • Airflow: 175 – 350 m3/h; differential pressure initial initial: 150 Pa
  • Weight: 3,50 – 6,00 kg
  1. Other options available upon request
  • Frame: SS304, SS316, Aluminum
  • Filter media: clearance (space material)
  • Thickness khung: 24 mm

Specification Table

Model Code MGT Code Dimensions WxLxD (mm) Airflow (m3/h) Initial pressure drop (Pa) Weight (kg)
MCP-287x592x48-GO 510401M CPGCO48 0287x0592x048 175 150 3,50
MCP-490x592x48-GO 510402M CPGCO48 0490x0592x048 280 150 4,50
MCP-592x592x48-GO 510403M CPGCO48 0592x0592x048 350 150 6,00
