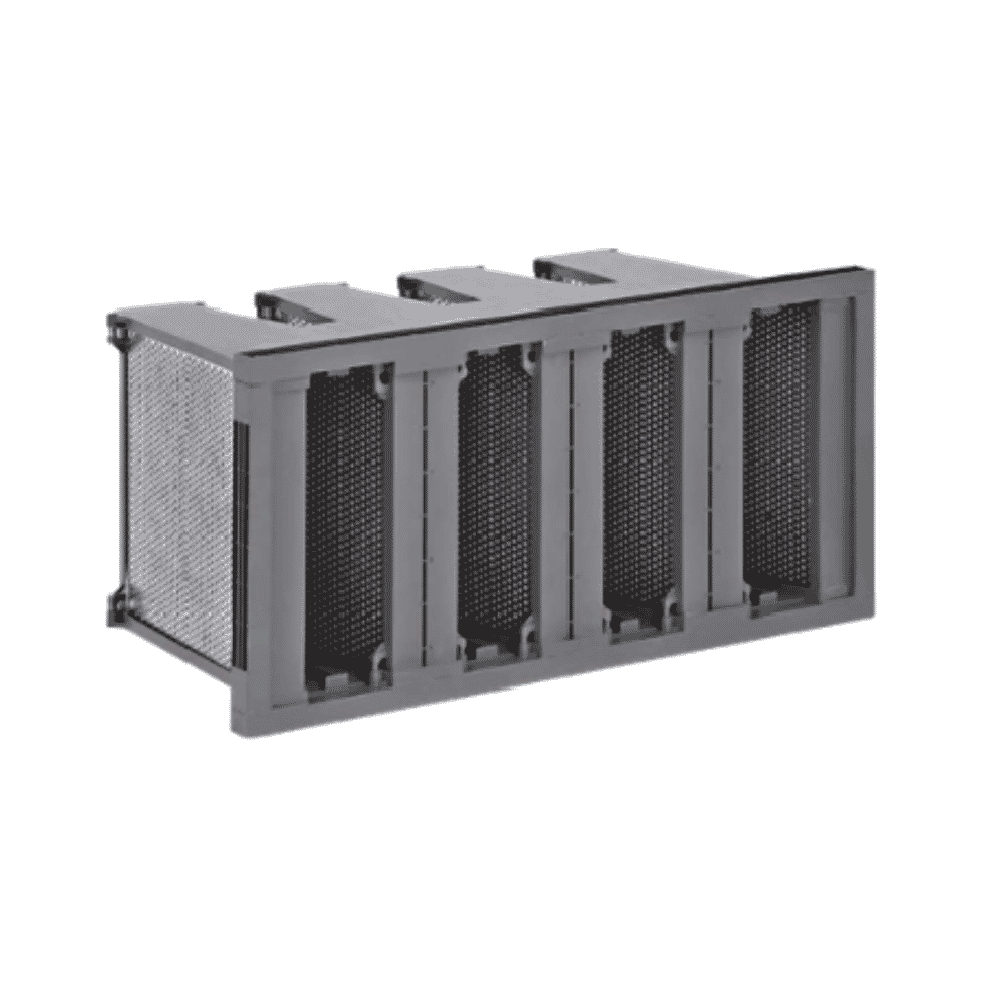

Name: Med CB-V - Airfiltech
SKU: Med CB-V-EN

Description

• Adsorbs gaseous pollutants and removes odors in ventilation and air-conditioning systems.
• Installed in supply and exhaust air systems for both residential and industrial buildings.
• V-shaped block design (4V Rigid Bank) increases contact area with the airflow, providing effective odor removal at low pressure drop.
• Lightweight, durable plastic frame, easy to install and replace the adsorption panels.
• Uses loose organic activated carbon pellets contained within the adsorption panels.

Technical Specifications

Specification

Frame: Plastic
Filter media: Carbon organic facility (type particles standalone)
Model tham exposure: MC4V-592x592x292-PO (4V Rigid Bank)
Dimensions W x H x D: 287x592x292, 490x592x292, 592x592x292 mm
Airflow: 1.270 – 2.250 m3/h
Initial pressure drop: 250 Pa
Thickness coating material adsorb consumption: 25 mm
Number quality panel adsorb consumption: 8 panel/unit
Weight: 15 – 30 kg

Specification Table

Model	Code	MGT Code	Width W (mm)	Cao H (mm)	Thickness D (mm)	Airflow (m3/h)	Initial pressure drop (Pa)	Thickness coating material (mm)	Number quality panel adsorb consumption	Weight Carbon (kg)
MC4V-287x592x292-PO	570001M	CTPCO4V	287	592	292	1270	250	25	8	15
MC4V-490x592x292-PO	570002M	CTPCO4V	490	592	292	2000	250	25	8	26
MC4V-592x592x292-PO	570003M	CTPCO4V	592	592	292	2250	250	25	8	30
