Description

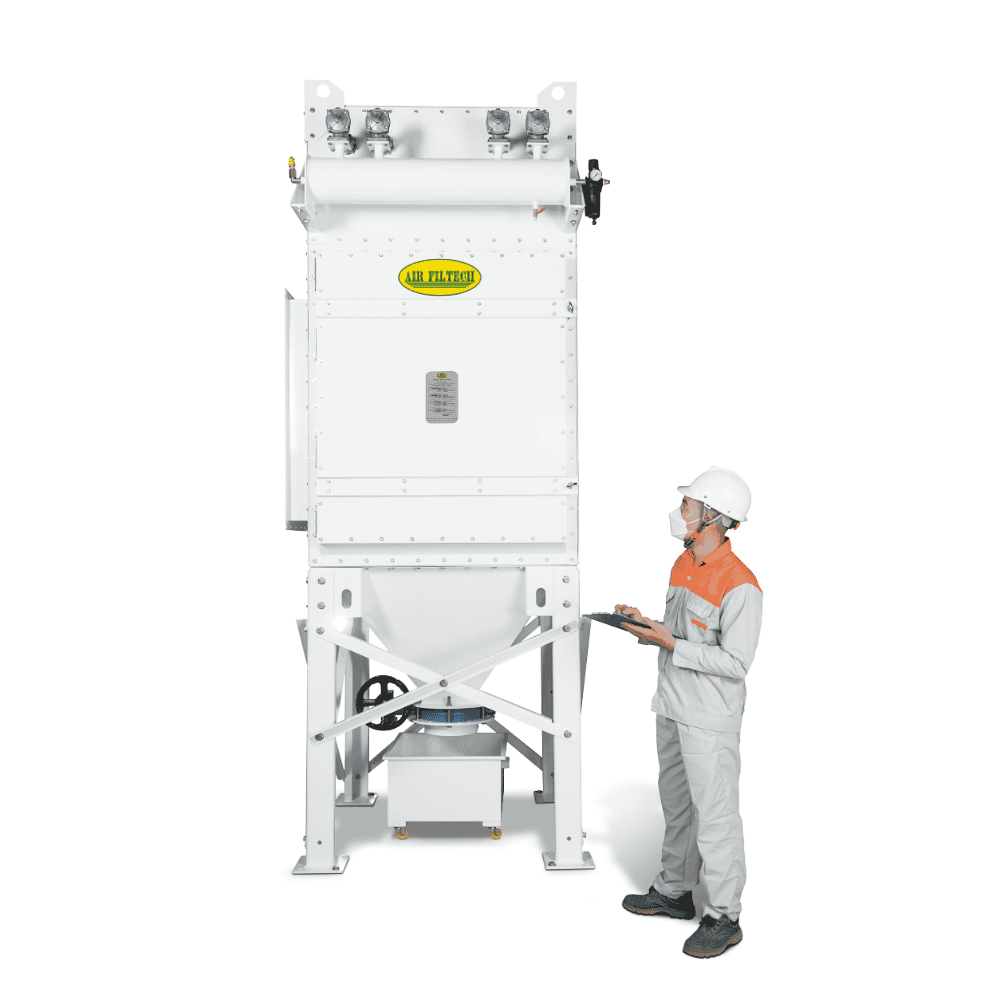

• Industrial dust collector using vertically mounted cartridge filter elements, suitable for a wide range of dust applications and high airflow rates.
• Applications in pharmaceutical processes: tablet presses, tablet coating, fluid-bed drying, spray drying, mixing, granulation, general ventilation, central vacuum and high-vacuum systems.
• Protects personnel from toxic or allergenic dust with a Bag-in/Bag-out (BIBO) containment system for both the cartridge replacement door and the dust discharge system.
• Explosion protection: design and equipment compliant with ATEX or NFPA upon customer request.
• Easy maintenance and installation: tool-free cartridge replacement, modular design that optimizes installation space.
Technical Specifications
ADVANTAGES OF DUST COLLECTOR CARTRIDGE DCT AFT
- Vertical design: The cartridge filter element helps operation release dust brand effective than, thereby thereby remove condition condition buildup buildup dust space gauge all commonly seen at the filter element installed horizontal.
- Efficiency power high: MERV11 – MERV16 or 99,99% – 99,999% relative with the particles with dimensions dimensions 0,5 micron and larger, by weight.
- Energy saving: differential pressure initial initial low (minimum ΔP 125Pa – maximum ΔP 1000Pa). Energy efficient consumption consumption air compressed with setting setting DP & time.
- 10-year warranty: With construction carbon steel heavy-duty heavy-duty for service life high – Module Dust collector is made of carbon steel 4 mm. Door, hopper, inlet and the panel baffle all is steel 3 mm.
- Easy easy maintenance & installation: With the retaining bar, replace cartridge filter element space need tool tool. Equipment design module of DCT provide provide space space optimal optimal for operation installation.
- Element filter cartridge service life high: Equipment design with area filter surface substance quality high to provide provide velocity speed low and DP low.
- Is equipment design to reduce load quality dust up filter: The baffle baffle baffle is installed at inlet helps protect filter from dust airborne into and separate the particles large fall directly contact into hopper and cartridge filter element.
- Coating electrostatic: All both the completed part carbon steel internal during and internal outside.
- Applications wide wide and the type dust specialized types: With multiple options options about filter media and spacing spacing pleats (Element filter thereby manufacturer manufacturer manufacturer Nordic & Camfil). This is issue options options suitable compound best for you.
DCT use tool switch technology cartridge filter element to provide supply air clean and service life long, gauge time use tool area floor smaller best compared with any any unit gom dust any site with above market site.
Specification Table
DCT Cartridge – Dust Collector
| Type |
Number element cartridge |
Filter media area (m2) |
Airflow (m3/h) |
Dimensions module (WxL) mm |
Weight (kg) |
| DCT-01-X |
1 |
12÷30 |
1,000÷1,700 |
650×650 |
225 |
| DCT-02-X |
2 |
24÷60 |
2,000÷3,500 |
1220×670 |
650 |
| DCT-04-X |
4 |
48÷120 |
4,000÷6,800 |
1220×1220 |
750 |
| DCT-06-X |
6 |
72÷180 |
6,000÷10,200 |
1220×1770 |
1,100 |
| DCT-08-X |
8 |
96÷240 |
8,000÷13,600 |
1270×2370 |
1,350 |
| DCT-10-X |
10 |
120÷250 |
10,000÷17,000 |
1270×2920 |
1,550 |
| DCT-12-X |
12 |
144÷360 |
12,000÷20,400 |
1770×1770 |
1,800 |
| DCT-16-X |
16 |
192÷420 |
16,000÷27,200 |
2320×2320 |
2,400 |
| DCT-20-X |
20 |
240÷600 |
20,000÷34,000 |
2370×2920 |
3,000 |
| DCT-24-X |
24 |
288÷720 |
24,000÷40,800 |
2320×3420 |
3,150 |
| DCT-32-X |
32 |
384÷960 |
32,000÷54,400 |
2370×4570 |
4,200 |
| DCT-40-X |
40 |
480÷1,200 |
40,000÷68,000 |
2370×5670 |
5,100 |
| DCT-48-X |
48 |
576÷1,440 |
48,000÷81,600 |
3570×4670 |
7,250 |
| DCT-60-X |
60 |
720÷1,800 |
60,000÷102,000 |
3570×5770 |
7,500 |
| DCT-64-X |
64 |
768÷1,920 |
64,000÷108,800 |
2070×8970 |
9,500 |
| DCT-72-X |
72 |
864÷2,160 |
72,000÷122,400 |
3570×6770 |
9,400 |
| DCT-84-X |
84 |
1,008÷2,520 |
84,000÷142,800 |
3570×7870 |
10,700 |
| DCT-96-X |
96 |
1,152÷2,880 |
96,000÷163,200 |
3570×8970 |
12,000 |
| DCT-120-X |
120 |
1,440÷3,600 |
120,000÷204,000 |
3570×11170 |
14,500 |
