Description

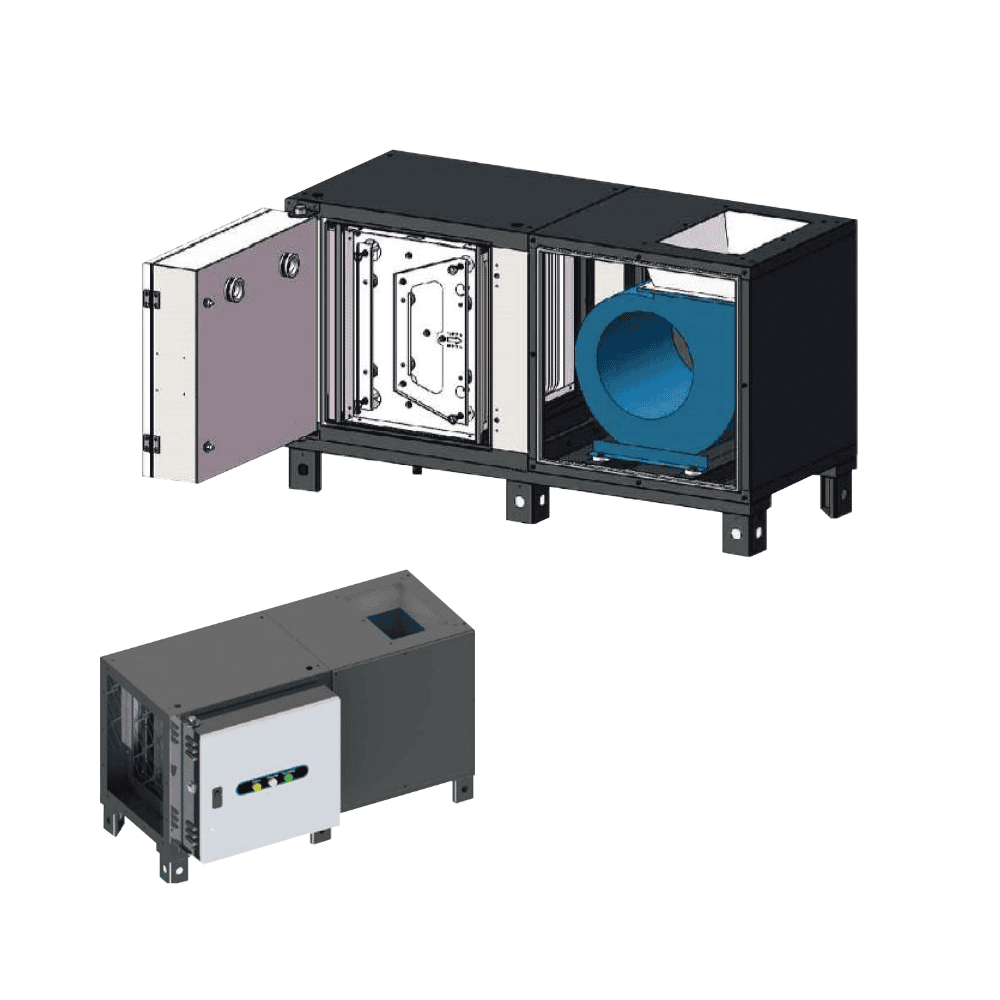

ESP-FAN-P Industrial Kitchen/Oil Smoke Filtration Unit with Integrated Fan in a Single Housing, DOP efficiency 95%, air flow capacity 2300-4600 m³/h
•High-efficiency filtration: Removes up to 95% DOP oil mist, suitable for a wide range of industrial and culinary applications.
•Integrated fan – compact single unit: Combines the electrostatic precipitator module and fan in the same housing, saving space and making operation more convenient.
•Easy cleaning & fast drying: Reduces residual water after washing, cleaner and faster drying thanks to an optimized oil drainage system.
•Safe & smart: Power supply with multiple layers of protection, three indicator lights clearly showing operating status, connects to the central control cabinet.
•Easy installation: Flexible with multiple installation options: wall-mounted, ceiling-mounted, floor-standing, indoor/outdoor.
•Technical specifications:
Air flow rate (m³/h): 2300 – 4600
Noise level (SPL) dB (A): 75 – 80
Main unit rated power (W): 93 – 125
Fan rated power (W): 550 – 800
Dimensions (L×W×H mm): 1260×674-1134×705
The device is suitable for industrial environments, easy to install and maintain.
