Description

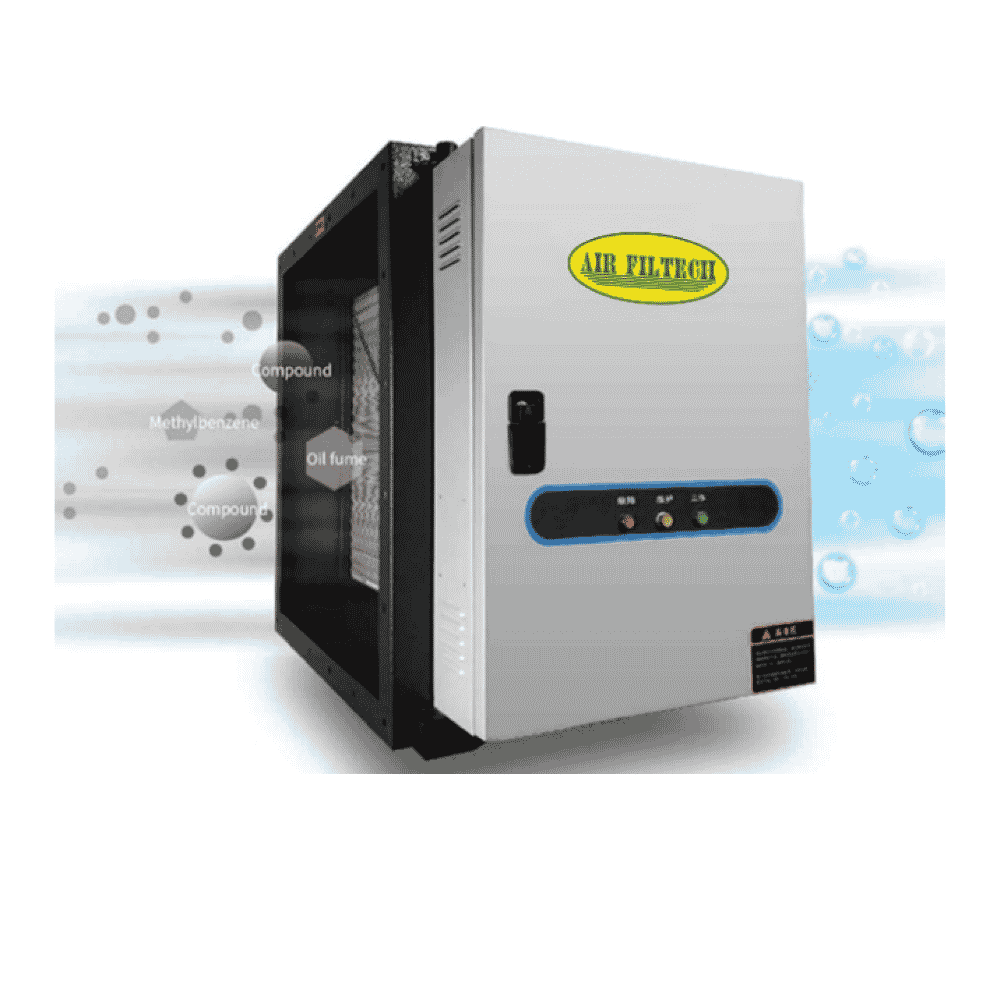

ESP-H kitchen exhaust treatment unit using ESP technology, cleaning efficiency ≥92-97%, airflow capacity 4,000-14,100 m³/h.
•Smoke/grease filter: ESP-H uses needle-type two-stage ionization technology with plate-type collector electrodes.
•Smart operation: PWM power supply, status indicator lights for operation/maintenance/fault, RS485 communication protocol for remote monitoring and management.
•Flexible installation: Air inlet/outlet direction can be reversed depending on site conditions.
•User-friendly design: Modular structure with double doors for easy maintenance, UV-resistant paint coating and electrostatic powder coating for corrosion and rust protection.
•Technical specifications:
Dimensions (L×W×H mm): 560×838-2357×703
Airflow capacity (m³/h): 6000 – 22500, cleaning efficiency ≥92%, Pressure drop (Pa): ≤ 95 Pa
Airflow capacity (m³/h): 4000 – 14100, cleaning efficiency ≥97%, Pressure drop (Pa): ≤ 65 Pa
Rated power (W): 92 W – 318 W
Technical Specifications
Unit filter smoke/oil for dich for canteen beverage
Power technology ion optimized two supply type metal (spike ionization) with basic electrode type panel.
Operation warranty vent intelligent
Intelligent PWM power supply; lamp indicator condition status make operation/maintenance/fault; communication protocol communication contact RS485 for for monitor & management management remote.
Install setting flexible operation trai/phai
With can dao dimension door air into/out per treatment condition at site site, convenient utility for thi switch installation.
User-friendly design – easy maintenance
Construction configure modular, door double type cage easy maintenance; coating paint corrosion UV UV and paint electrostatic protect casing machines corrosion canteen control, corrosion rust.
Specification Table
| Specification |
ESP-04H |
ESP-05H |
ESP-08H |
ESP-09H |
ESP-13H |
ESP-14H |
| Airflow air treatment management at efficiency make clean ≥92% (m³/h) |
6000 |
7500 |
12000 |
15000 |
20000 |
22500 |
| Loss pressure at efficiency make clean ≥92% (Pa) |
≤ 95 Pa |
| Airflow air treatment management at efficiency make clean ≥97% (m³/h) |
4000 |
4700 |
8000 |
9400 |
13000 |
14100 |
| Loss pressure at efficiency make clean ≥97% (Pa) |
≤ 65 Pa |
| Power supply (V/Hz) |
220-240/ 50-60 |
| Rated power (W) |
92 W |
106 W |
184 W |
212 W |
276 W |
318 W |
| Dimensions (L*W*H mm) |
560*838*703 |
560*897*703 |
560*1516*703 |
560*1627*703 |
560*2194*703 |
560*2357*703 |
| Unit weight (kg) |
68 |
76 |
110 |
121 |
160 |
172 |
| Status display |
Operation warranty – Maintenance maintain – Fault (The fixed) |
| Options |
Khay collector/hung grease |
| Maintenance clearance (mm) |
1030 mm |
| Dimension high base base installation (mm) |
130 mm |
Luu y brochure: “Series AFT-ESP-H will ngung manufacturer manufacturer thereby year 2027. Tuy natural, the series H2 and HD will still is contact continue provide supply.”
