Description

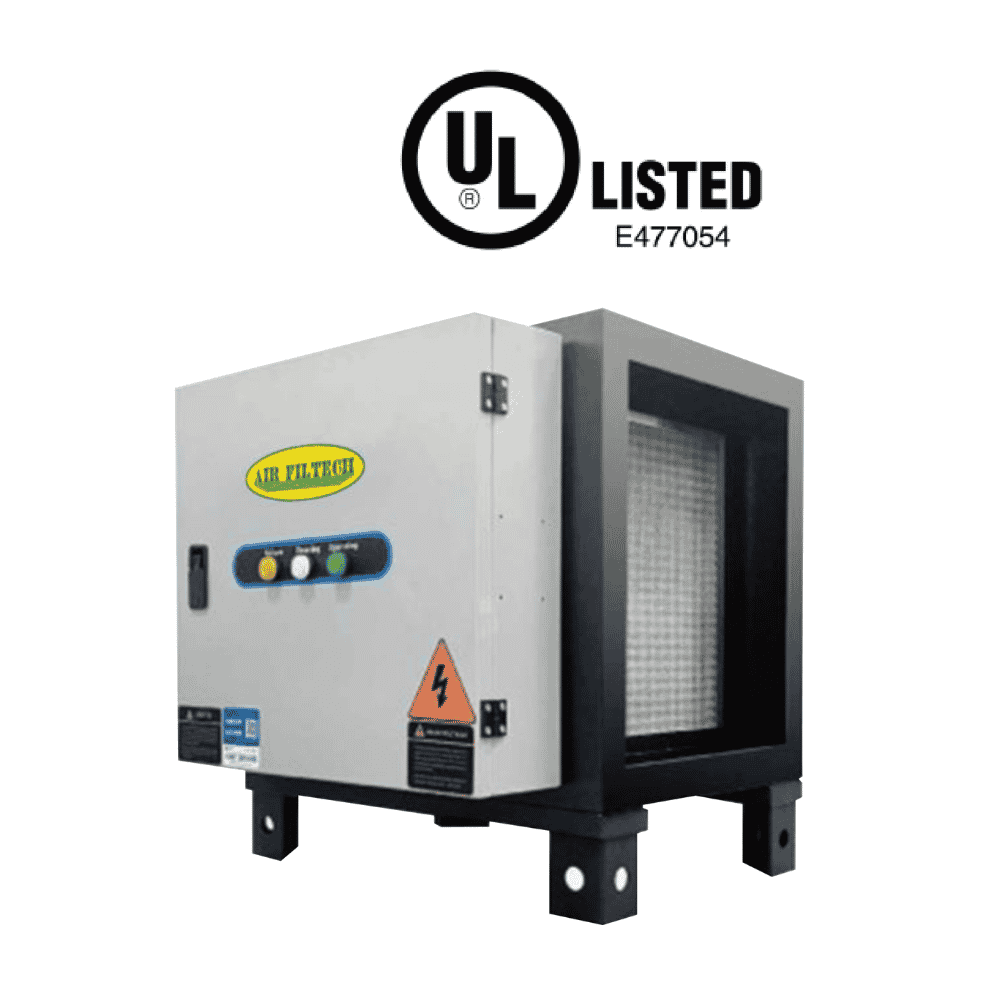

ESP-P Kitchen Exhaust Treatment Unit with ESP Technology, DOP efficiency ≥90-95%, Air flow capacity 2.300-11.500 m³/h, IP55 rated
•Effective filtration: Uses aviation-grade aluminum alloy, corrosion-resistant, high cleaning efficiency thanks to large surface area and small spacing between electrode plates.
•Safe & reliable: Meets UL safety standards, resistant to electrical discharge and sparking, fire-resistance certified.
•Easy cleaning & fast drying: Reduces residual water after washing, optimized oil drainage system.
•Rain & sun resistant: IP55 rated, good water and dust resistance, UV-resistant coating.
•Easy installation & maintenance: Flexible with multiple installation methods, small maintenance space required, integrated electronic control.
•Technical specifications:
Air flow rate (m³/h): 3000 – 15000, Pressure drop at DOP 90% (Pa): ≤ 95
Air flow rate (m³/h): 2300 – 11500, Pressure drop at DOP 95% (Pa): ≤ 65
Rated power (W): 93 – 221
Dimensions (L×W×H mm): 660×662-2505×575
The device is suitable for industrial environments, easy to install and maintain.
