Description

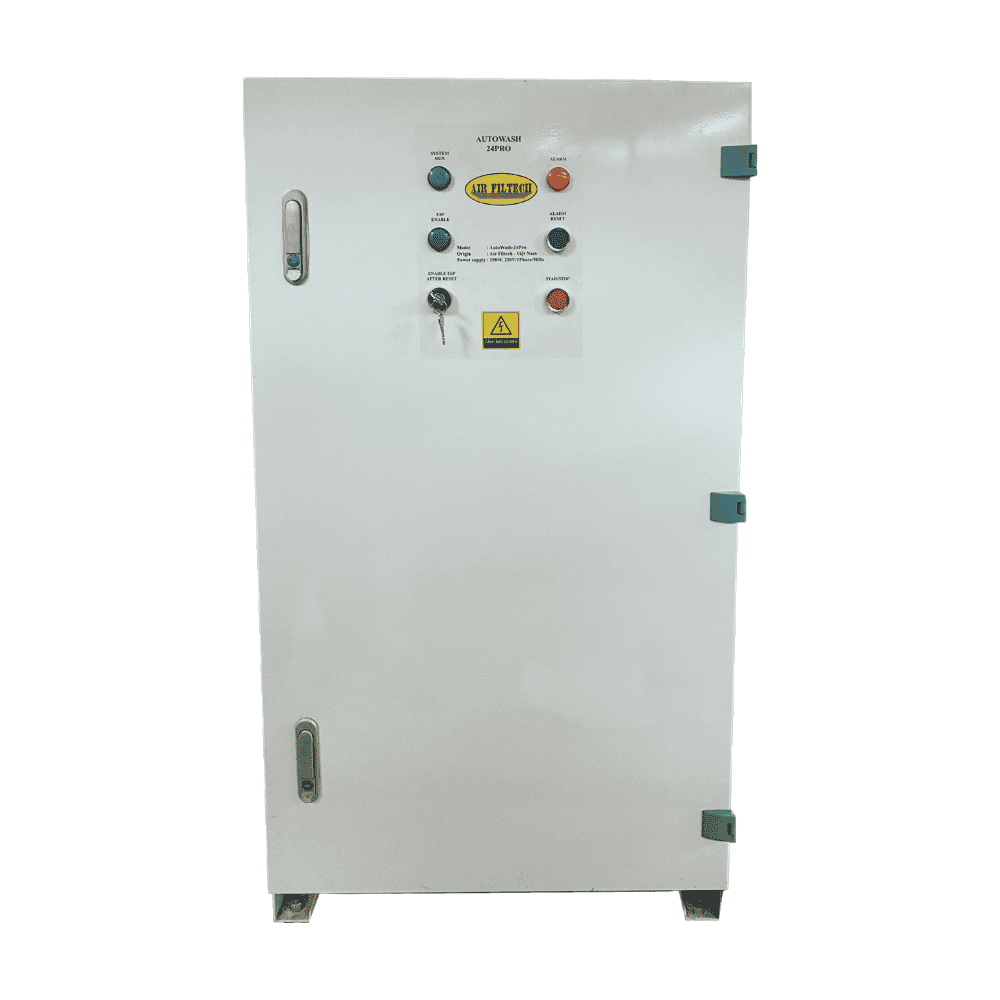

AutoWash-24Pro – Automatic Washing System for the Entire ESP Product Line, integrated spray nozzles, programmable periodic drain-wash-dry cycle.
•Control cabinet: Installed next to the ESP modules, operates multiple modules simultaneously or individually. Central control is via PLC, programmable according to the number of modules.
•Washing program: Automatically starts the drain-wash-dry cycle on schedule, can be started manually or by timer.
•Priority: Runs when the smoke extraction system is not operating.
•Technical specifications
Model: AutoWash-24Pro
Origin: Air Filtech – Vietnam
Material: 1.5 mm thick CSP (powder-coated steel sheet)
Dimensions: 640 x 1175 x 250 mm
Power supply: 150 W, 220 V / 1 phase / 50 Hz
Control relay output: For Fan & ESP
Water inlet: DN20 mm, minimum pressure ≥ 3 bar, temperature ~60 ℃
Water outlet: DN20 mm, up to 6 branches
Detergent pump: 12 W, 24 VDC
Model: AML200NPE – SEKO (Italy)
Rated flow rate: 5 l/h
Working pressure: 5 bar (72.5 psi)
This system helps optimize the cleaning and maintenance process, saving time and effort.
