Description

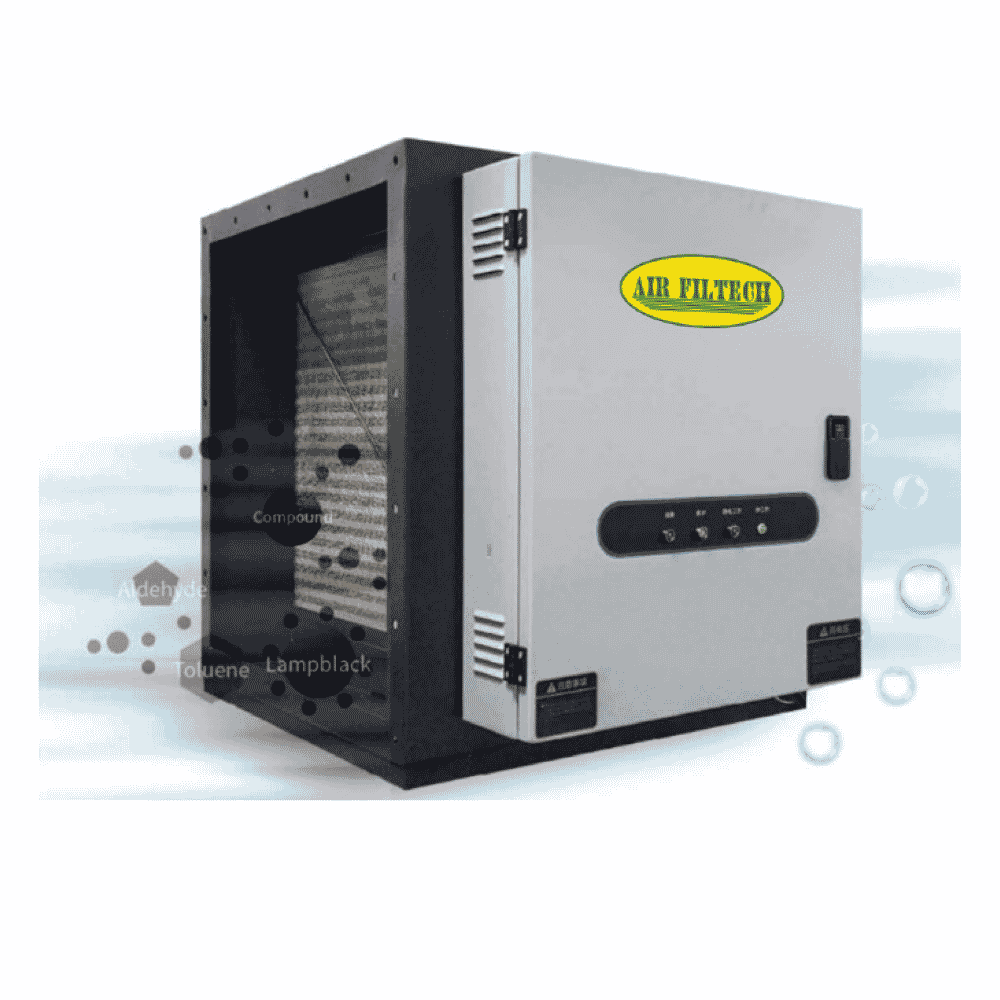

ESP-UV-H kitchen exhaust treatment unit using ESP technology, with U-shaped UV lamp rated for 9000 hours, cleaning efficiency ≥92-97%, airflow capacity 4,000-14,100 m³/h.
•Dual filtration: Two-stage ionization plus U-shaped UV tube for high efficiency and odor removal.
•Compact design: Space-saving, with integrated electronic controls.
•Smart operation: Indicator lights, real-time monitoring, RS485 communication.
•Durable configuration: Stainless steel needle electrodes, serrated ionization membrane, aluminum dust collector.
•Technical specifications:
Dimensions (L×W×H mm): 633×838-2357×703
Airflow capacity (m³/h): 6000 – 22500, cleaning efficiency ≥92%, Pressure drop (Pa): ≤ 100 Pa
Airflow capacity (m³/h): 4000 – 14100, cleaning efficiency ≥97%, Pressure drop (Pa): ≤ 85 Pa
Rated power (W): 222 W – 768 W
Technical Specifications
Structure configuration Filter dual
- Power technology ion optimized two supply with electrical electrode metal – basic electrode panel
- Tube UV shaped U two range (dual-band)
- Efficiency power make clean high
- Efficiency effective removal odor high
- Options laminar filter activated carbon side after
Compact minor
- Energy efficient space space/ reduce cost installation manual
- Integrated compound control electrical molecular
- Operation warranty stable fixed, reliable reliable
Operation warranty vent intelligent
- 4 lamp designated indicator: ESP on, UV on, Maintenance maintain, Fault
- Monitoring monitoring per time real
- Power supply high pressure PWM vent intelligent
- Giao protocol communication contact RS485
Structure configuration
- Cum ion optimized electrical electrode metal inox
- Mang ion optimized toothed sawtooth, shock electrical high pressure; unit collector dust by compound metal aluminum supply goods space (aerospace-grade aluminum)
- Tube lamp UV by quartz anh borosilicate (high-boron quartz)
- Spacing spacing between the lamp ≤ 120 mm
