Description

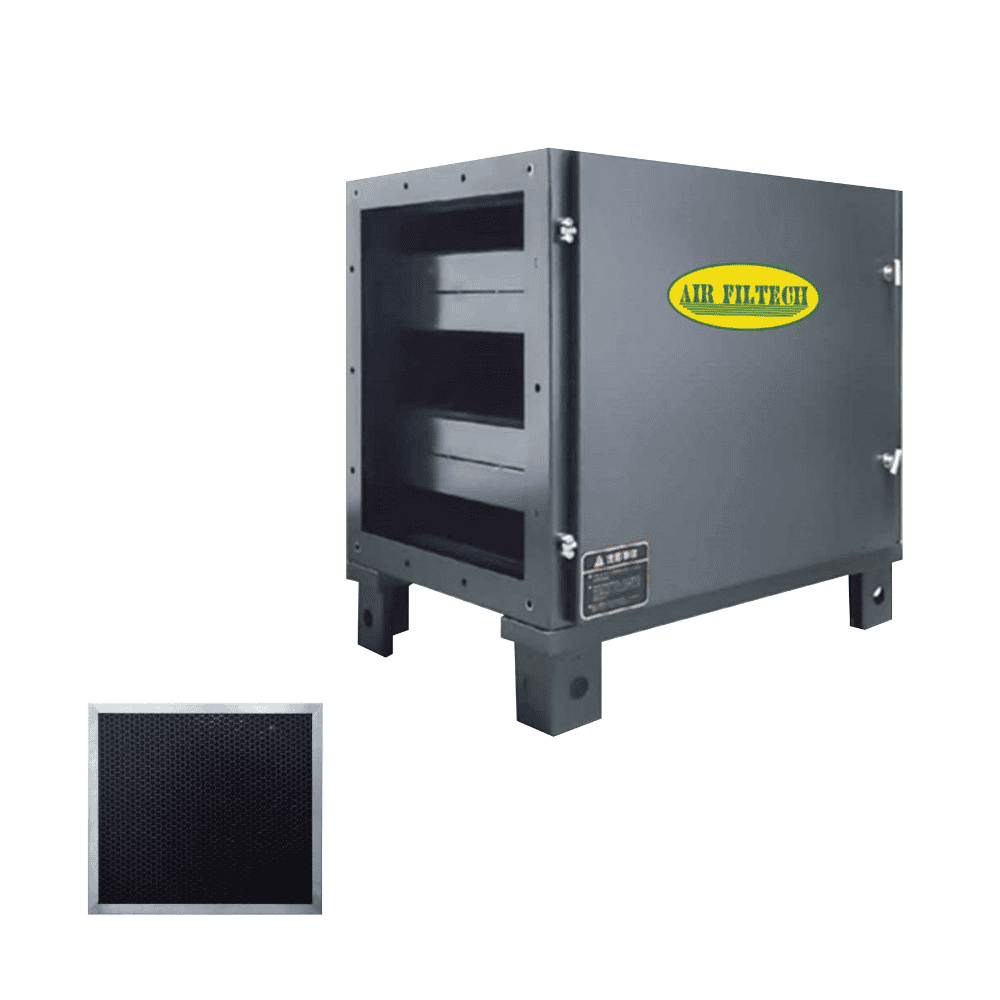

Carbon-PW Panel-type Activated Carbon Module for the ESP-P Series, air flow capacity 3.000-15.000 m³/h, Pressure drop 110-200 Pa
•W-shaped activated carbon panel structure: 50 mm thick panels, optimized tilt angle and structure for balanced air flow distribution, high deodorizing efficiency with low pressure drop.
•Honeycomb/mesh activated carbon panel: Increases carbon density and loading, increases air contact area, prevents carbon particle shedding.
•Fast & efficient maintenance: Easy pull-out panels, disposable replacement cartridges, no need for carbon refilling.
•High-quality activated carbon: Uses lightweight cylindrical activated carbon type 3#, fast deodorizing, low fine dust generation.
•User-friendly design (human-centered): Modular structure allows flexible expansion, resistant to sun and rain, corrosion and rust resistant.
•Technical specifications:
Deodorizing rate (%): ≥ 95%
Air flow rate (m³/h): 3000 – 15000
Pressure drop (Pa): 110~200
Dimensions (L×W×H mm): 690×519-2362×575
Activated carbon quantity (kg): 13 – 65
The device is suitable for outdoor environments, easy to install and maintain.
