Description

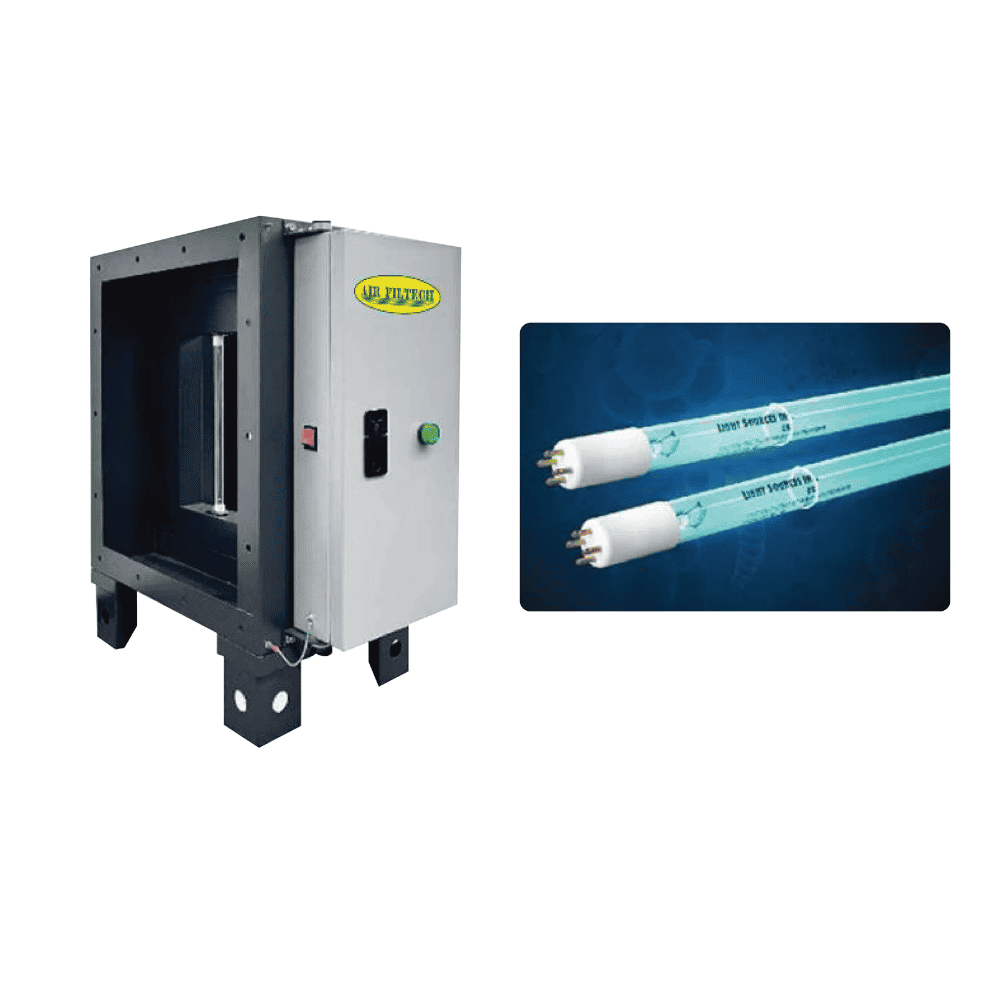

UV-P Deodorizing UV Lamp Module for the ESP-P Series, lamp lifespan 12000 hours, Deodorizing efficiency ≥90%, Air flow capacity 3.000-15.000 m³/h, Pressure drop ≤ 30Pa
•Dual-band UV: Uses 185 nm and 253.7 nm light to break the molecular bonds that cause odor, generating ozone to help decompose odor compounds.
•High deodorizing efficiency: High-power UV lamps, heat and corrosion resistant, high light transmittance, strong irradiation intensity.
•Long lifespan: Over 12,000 operating hours, equipped with a high-quality ballast.
•Pull-out structure (Type I pull-out): Optimized design reduces maintenance space, easy to disassemble and clean.
•User-friendly design: Flexible module, standard flange, resistant to sun and rain, corrosion resistant, IPX4 rated.
•Technical specifications:
Deodorizing rate (%): ≥ 90%
Air flow rate (m³/h): 3000 – 15000
Device pressure drop (Pa): ≤ 30
Rated power (W): 64 – 320
Dimensions (L×W×H mm): 330×662-2505×575
The device is suitable for industrial environments, easy to install and maintain.
