Description
APPLICATION
- Captures wet particles in pre-filtration, gloss-painting and spray-painting applications.
- Low initial pressure drop.
- High dust holding capacity.
- Disposable filter type.
- Origin: Turkey

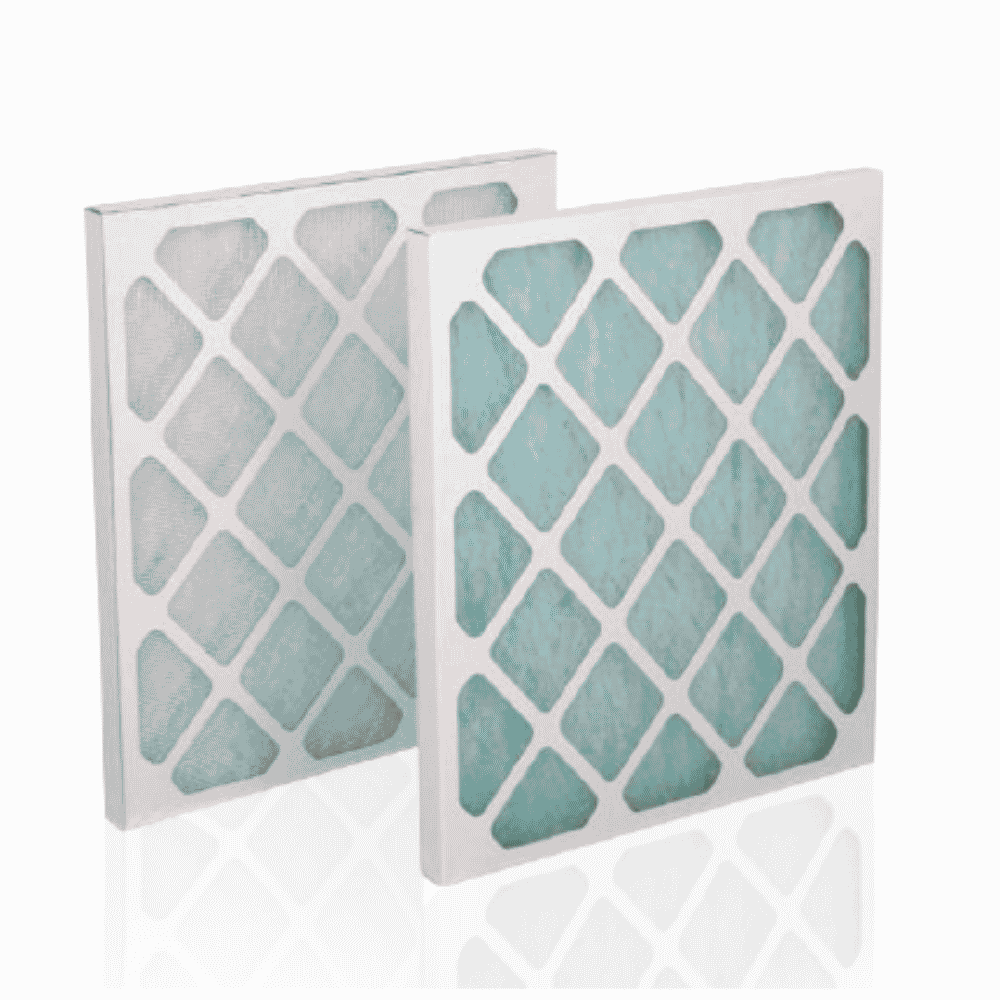

AirPanel-CG
Disposable straight panel filter, captures wet particles in pre-filtration, gloss-painting and spray-painting applications.
Disposable Filters: Disposable Filter
- Frame: Cardboard
- Filter media: Glass fiber
- Style: Straight
- Protective wire mesh: No mesh
- Max. temperature: 70oC
- Relative humidity: 80%
- Filtration stage: I
- Final pressure drop: EN 779-2012: 250 Pa. ISO 16890: 200 Pa.
Description
Technical Specifications
Technical Specifications
Disposable Filters: Unit filter use once through
- Frame: Certificate cardboard hardness
- Filter media: Fiberglass
- Type shape: Type straight
- Protective mesh: No mesh
- Maximum temperature: 70oC
- Relative humidity: 80%
- Filtration stage: I
- Final pressure drop: EN 779-2012: 250 Pa. ISO 16890: 200 Pa.
Specification Table
Specification Table
|
Model |
Code | MGT Code | Dimensions WxLxD (mm) | Filter class ISO 16890 | Filter class EN779:2012 | Filter media area (m²) | Airflow (m³/h) | Initial pressure drop (Pa) | Weight (kg) |
| AirPanel-G3-287x287x24-CG-18 | 599005M | PF3KF18L0 | 287x287x24 | COARSE >40% | G3 | 0.08 | 850 | 30 | 0.3 |
| AirPanel-G3-287x592x24-CG-18 | 599006M | PF3KF18L0 | 287x592x24 | COARSE >40% | G3 | 0.17 | 1700 | 30 | 0.65 |
| AirPanel-G3-490x592x24-CG-18 | 599007M | PF3KF18L0 | 490x592x24 | COARSE >40% | G3 | 0.29 | 2800 | 30 | 1.1 |
| AirPanel-G3-592x592x24-CG-18 | 599008M | PF3KF18L0 | 592x592x24 | COARSE >40% | G3 | 0.35 | 3400 | 30 | 1.35 |
| AirPanel-G3-287x287x48-CG-25 | 599001M | PF3KF25L0 | 287x287x48 | COARSE >40% | G3 | 0.08 | 850 | 50 | 0.35 |
| AirPanel-G3-287x592x48-CG-25 | 599002M | PF3KF25L0 | 287x592x48 | COARSE >40% | G3 | 0.17 | 1700 | 50 | 0.8 |
| AirPanel-G3-490x592x48-CG-25 | 599003M | PF3KF25L0 | 490x592x48 | COARSE >40% | G3 | 0.29 | 2800 | 50 | 1.5 |
| AirPanel-G3-592x592x48-CG-25 | 599004M | PF3KF25L0 | 592x592x48 | COARSE >40% | G3 | 0.35 | 3400 | 50 | 1.6 |
| AirPanel-G4-287x287x96-CG-36 | 599131M | PF4KF36L0 | 287x287x96 | COARSE >60% | G4 | 0.08 | 850 | 75 | 0.4 |
| AirPanel-G4-287x592x96-CG-36 | 599132M | PF4KF36L0 | 287x592x96 | COARSE >60% | G4 | 0.17 | 1700 | 75 | 1 |
| AirPanel-G4-490x592x96-CG-36 | 599133M | PF4KF36L0 | 490x592x96 | COARSE >60% | G4 | 0.29 | 2800 | 75 | 1.85 |
| AirPanel-G4-592x592x96-CG-36 | 599134M | PF4KF36L0 | 592x592x96 | COARSE >60% | G4 | 0.35 | 3400 | 75 | 2 |
