Description
APPLICATION:
- Air conditioning and ventilation systems.
- Used as a pre-filter.
- Low initial pressure drop.
- High dust holding capacity.
- Disposable filter type.

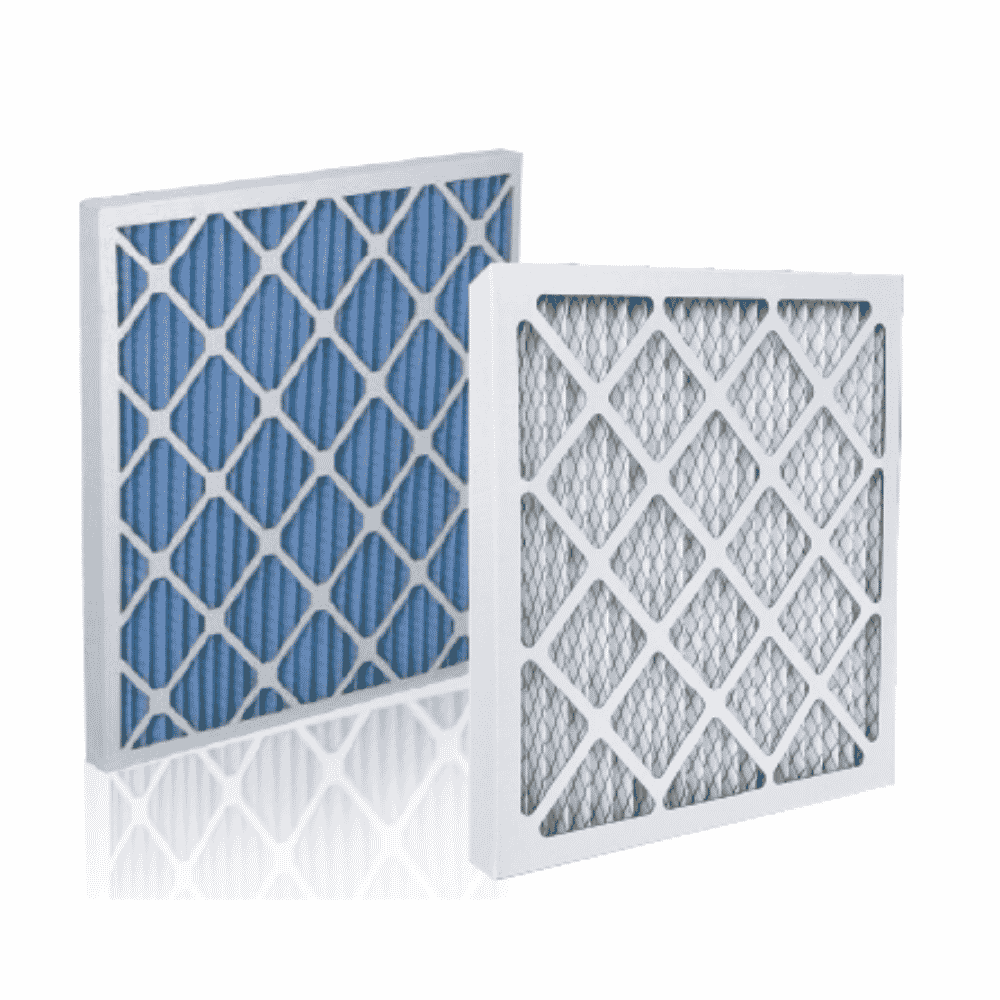

AirPanel-CS
Disposable Z-fold panel filter for air conditioning/ventilation systems, used as a pre-filter.
Disposable Filters: Disposable Filter
Frame: Cardboard
Filter media: Synthetic fiber (S10: White, S14: Blue)
Style: Z-fold
Protective wire mesh: air-outlet side
Max. temperature: 70oC
Relative humidity: 80%
Filtration stage: I-II
Final pressure drop:
EN 779-2012: 250 Pa.
ISO 16890: 200 Pa.
Description
Technical Specifications
Technical Specifications
Disposable Filters: Unit filter use once through
Frame: Certificate cardboard cung
Filter media: Synthetic fiber (S10: White, S14: Blue)
Type shape: Pleated Z
Protective mesh: grille air ra
Maximum temperature: 70oC
Relative humidity: 80%
Filtration stage: I-II
Final pressure drop:
EN 779-2012: 250 Pa.
ISO 16890: 200 Pa.
Specification Table
Specification Table
|
Model |
Code | MGT Code | Dimensions WxLxD (mm) | Filter class ISO 16890 | Filter class EN779:2012 | Filter media area (m²) | Thickness filter media (mm) | Airflow (m³/h) |
Initial pressure drop (Pa) |
| AirPanel-G4-287x287x48-CS-10 | 594131M | PF4KS10Z1 | 287x287x48 | COARSE >60% | G4 | 0.4 | 10 | 850 | 70 |
| AirPanel-G4-287x592x48-CS-10 | 594132M | PF4KS10Z1 | 287x592x48 | COARSE >60% | G4 | 0.7 | 10 | 1700 | 70 |
| AirPanel-G4-490x592x48-CS-10 | 594133M | PF4KS10Z1 | 490x592x48 | COARSE >60% | G4 | 1.1 | 10 | 2800 | 70 |
| AirPanel-G4-592x592x48-CS-10 | 594134M | PF4KS10Z1 | 592x592x48 | COARSE >60% | G4 | 1.3 | 10 | 3400 | 70 |
| AirPanel-G4-287x287x96-CS-10 | 594135M | PF4KS10Z1 | 287x287x96 | COARSE >60% | G4 | 0.8 | 10 | 1000 | 95 |
| AirPanel-G4-287x592x96-CS-10 | 594136M | PF4KS10Z1 | 287x592x96 | COARSE >60% | G4 | 1.4 | 10 | 2100 | 95 |
| AirPanel-G4-490x592x96-CS-10 | 594137M | PF4KS10Z1 | 490x592x96 | COARSE >60% | G4 | 2.2 | 10 | 3400 | 95 |
| AirPanel-G4-592x592x96-CS-10 | 594138M | PF4KS10Z1 | 592x592x96 | COARSE >60% | G4 | 2.6 | 10 | 4200 | 95 |
| AirPanel-G4-287x287x48-CS-14 | 594139M | PF4KS14Z1 | 287x287x48 | COARSE >60% | G4 | 0.4 | 14 | 850 | 70 |
| AirPanel-G4-287x592x48-CS-14 | 594140M | PF4KS14Z1 | 287x592x48 | COARSE >60% | G4 | 0.7 | 14 | 1700 | 70 |
| AirPanel-G4-490x592x48-CS-14 | 594141M | PF4KS14Z1 | 490x592x48 | COARSE >60% | G4 | 1.1 | 14 | 2800 | 70 |
| AirPanel-G4-592x592x48-CS-14 | 594142M | PF4KS14Z1 | 592x592x48 | COARSE >60% | G4 | 1.3 | 14 | 3400 | 70 |
| AirPanel-G4-287x287x96-CS-14 | 594143M | PF4KS14Z1 | 287x287x96 | COARSE >60% | G4 | 0.8 | 14 | 1000 | 95 |
| AirPanel-G4-287x592x96-CS-14 | 594144M | PF4KS14Z1 | 287x592x96 | COARSE >60% | G4 | 1.4 | 14 | 2100 | 95 |
| AirPanel-G4-490x592x96-CS-14 | 594145M | PF4KS14Z1 | 490x592x96 | COARSE >60% | G4 | 2.2 | 14 | 3400 | 95 |
| AirPanel-G4-592x592x96-CS-14 | 594146M | PF4KS14Z1 | 592x592x96 | COARSE >60% | G4 | 2.6 | 14 | 4200 | 95 |
