PreBag-PR

Name: PreBag-PR - Airfiltech
SKU: PreBag-PR-EN

In Stock

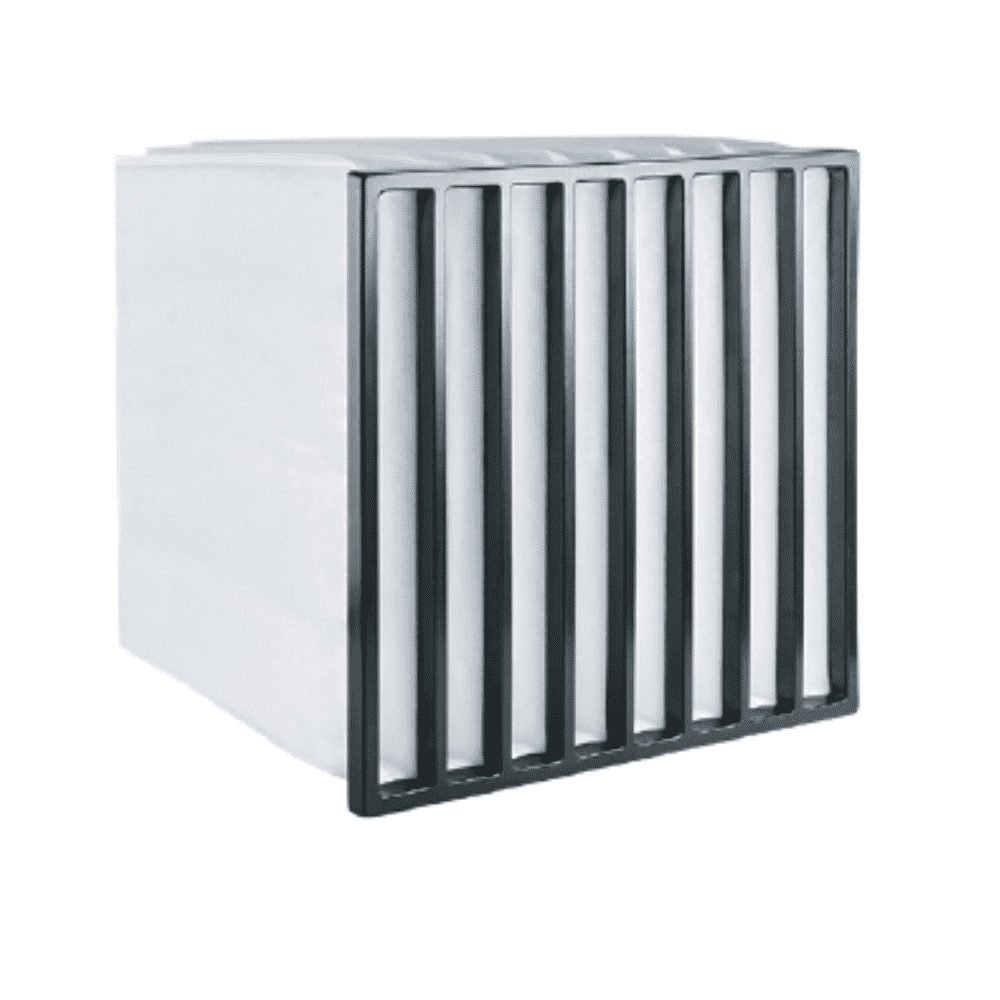

Rigid Bag pre-filter for air conditioning, ventilation, power plant and turbine systems; pre-filtration or second-stage filtration.

Rigid Bag Filter: Rigid Bag Filter
Frame: Black plastic (P)
One-piece molded plastic (25mm)-V
Frame depth: 25mm
Filter media: Rigid
Max. temperature: 80 oC

Relative humidity: 100%
Filtration stage: I-II
Final pressure drop:
EN 779:2012: 250 Pa.
ISO 16890: 200 Pa.

Other options available on request:

Frame: Black plastic / Galvanized steel / Stainless steel 304 / Stainless steel 316 / One-piece molded plastic, 25mm frame depth.
Frame depth: 20 mm
Hygiene certification: Bag filters | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Download Catalogue

Categories: Coarse Filtration, Gas Turbine Filters, Primary Filter Tag: Air Filtech SKU: PreBag-PR-EN

Description

Applications: Air conditioning, ventilation, power plant and turbine systems.
Used as a pre-filter or second-stage filter.
Low initial pressure drop.
High dust holding capacity (DHC)
Reduces operating costs.
Long service life.
Origin: Turkey

Technical Specifications

Rigid Bag Filter: Unit filter bag hardness
Frame: Plastic black (P)
Plastic raw block (25mm)-V
Frame depth: 25mm
Filter media: Rigid
Maximum temperature: 80 oC

Relative humidity: 100%
Filtration stage: I-II
Final pressure drop:
EN 779:2012: 250 Pa.
ISO 16890: 200 Pa.

Other options available upon request:

Frame: Plastic Black / Galvanized steel / SS304 / SS316 / Plastic cast raw block surface thick khung 25mm.
Frame depth: 20 mm
Hygiene certification: Filter bag | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD (mm)	Number bag	Filter class ISO 16890	Filter class EN779:2012	Filter media area (m²)	Airflow (m³/h)	Initial pressure drop (Pa)
RB-G4-287x592x360-3P	320401M	PB4P25R03	287x592x360	3	COARSE >60%	G4	1.5	850	35
RB-G4-287x592x360-4P	320402M	PB4P25R04	287x592x360	4	COARSE >60%	G4	2	1700	35
RB-G4-592x592x360-6P	320403M	PB4P25R06	592x592x360	6	COARSE >60%	G4	3	2800	35
RB1-G4-592x592x360-6P	320404M	PB4V25R06	592x592x360	6	COARSE >60%	G4	3	2800	35
RB-G4-592x592x360-8P	320405M	PB4P25R08	592x592x360	8	COARSE >60%	G4	4	3400	35
RB1-G4-592x592x360-8P	320406M	PB4V25R08	592x592x360	8	COARSE >60%	G4	4	3400	35
RB-G4-287x592x600-3P	320407M	PB4P25R03	287x592x600	3	COARSE >60%	G4	2.4	850	30
RB-G4-287x592x600-4P	320408M	PB4P25R04	287x592x600	4	COARSE >60%	G4	3.2	1700	30
RB-G4-592x592x600-6P	320409M	PB4P25R06	592x592x600	6	COARSE >60%	G4	4.8	2800	30
RB1-G4-592x592x600-6P	320410M	PB4V25R06	592x592x600	6	COARSE >60%	G4	4.8	2800	30
RB-G4-592x592x600-8P	320411M	PB4P25R08	592x592x600	8	COARSE >60%	G4	6.4	3400	30
RB1-G4-592x592x600-8P	320412M	PB4V25R08	592x592x600	8	COARSE >60%	G4	6.4	3400	30
