Description
APPLICATION
- Air conditioning and ventilation systems.
- Used as a pre-filter or second-stage filter.
- Low initial pressure drop.
- High dust holding capacity (DHC).
- Reduces operating costs.
- Long service life.

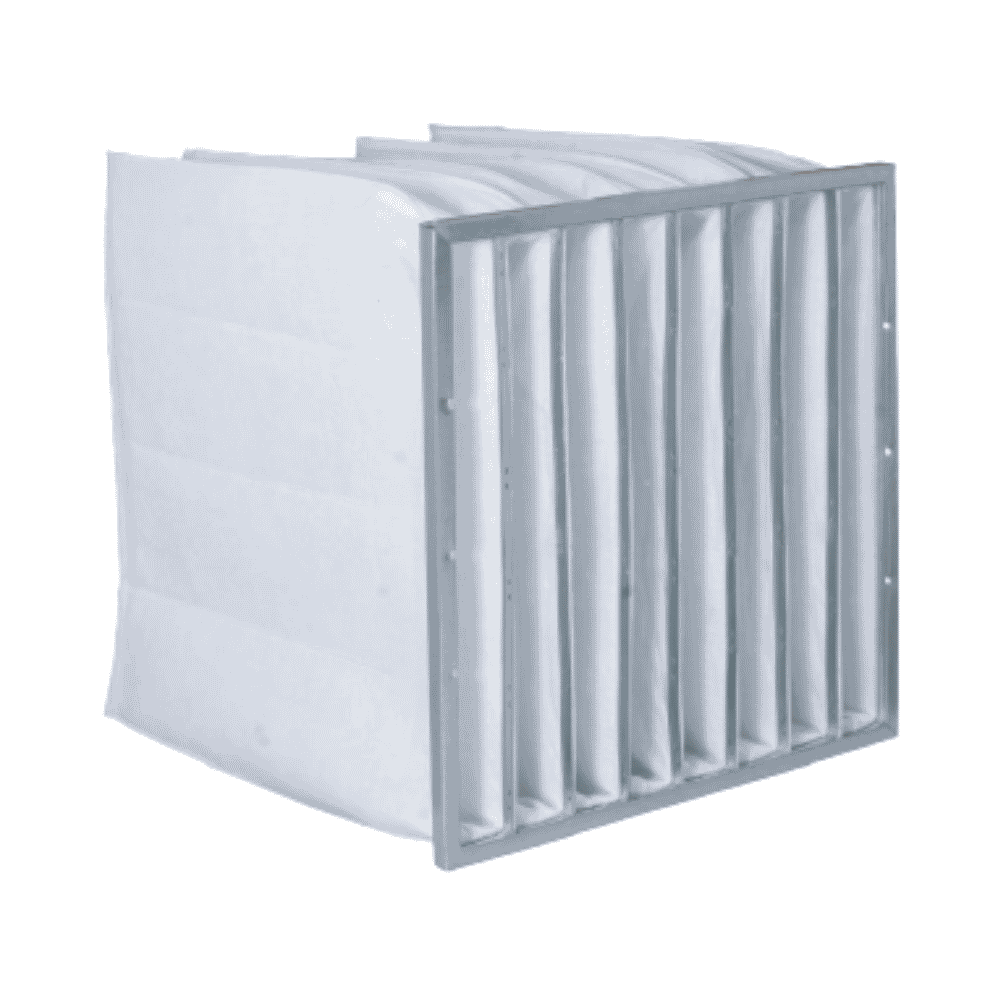

PreBag-S
Synthetic fiber bag filter for air conditioning/ventilation systems, used as a pre-filter or second-stage filter.
Synthetic Fiber Bag Filter
- Frame: Galvanized steel
- Frame depth: 25mm
- Filter media: Synthetic fiber
- Max. temperature: 80oC
- Relative humidity: 100%
- Filtration stage: I-II
- Final pressure drop:
EN 779:2012: 250 Pa.
ISO 16890: 200 Pa.
Description
Technical Specifications
Technical Specifications
Unit filter bag fiber total compound
- Frame: Galvanized steel
- Frame depth: 25mm
- Filter media: Synthetic fiber
- Maximum temperature: 80oC
- Relative humidity: 100%
- Filtration stage: I-II
- Final pressure drop:
EN 779:2012: 250 Pa.
ISO 16890: 200 Pa.
Specification Table
Specification Table
|
Model |
Code | MGT Code | Dimensions WxLxD (mm) | Number bag | Filter class ISO 16890 | Filter class EN779:2012 | Filter media area (m²) | Airflow (m³/h) |
Initial pressure drop (Pa) |
| SB-G3-287x287x360-3P | 320001M | PB3G25S03 | 287x287x360 | 3 | COARSE >40% | G3 | 0.75 | 850 | 35 |
| SB-G3-287x592x360-3P | 320002M | PB3G25S03 | 287x592x360 | 3 | COARSE >40% | G3 | 1.5 | 1700 | 35 |
| SB-G3-490x592x360-5P | 320003M | PB3G25S05 | 490x592x360 | 5 | COARSE >40% | G3 | 2.5 | 2800 | 35 |
| SB-G3-592x592x360-6P | 320004M | PB3G25S06 | 592x592x360 | 6 | COARSE >40% | G3 | 3 | 3400 | 35 |
| SB-G4-287x287x360-3P | 320005M | PB4G25S03 | 287x287x360 | 3 | COARSE >60% | G4 | 0.75 | 850 | 40 |
| SB-G4-287x592x360-3P | 320006M | PB4G25S03 | 287x592x360 | 3 | COARSE >60% | G4 | 1.5 | 1700 | 40 |
| SB-G4-490x592x360-5P | 320007M | PB4G25S05 | 490x592x360 | 5 | COARSE >60% | G4 | 2.5 | 2800 | 40 |
| SB-G4-592x592x360-6P | 320008M | PB4G25S06 | 592x592x360 | 6 | COARSE >60% | G4 | 3 | 3400 | 40 |
| SB-G3-287x287x600-3P | 320009M | PB3G25S03 | 287x287x600 | 3 | COARSE >40% | G3 | 1.25 | 850 | 30 |
| SB-G3-287x592x600-3P | 320010M | PB3G25S03 | 287x592x600 | 3 | COARSE >40% | G3 | 2.5 | 1700 | 30 |
| SB-G3-490x592x600-5P | 320011M | PB3G25S05 | 490x592x600 | 5 | COARSE >40% | G3 | 4.1 | 2800 | 30 |
| SB-G3-592x592x600-6P | 320012M | PB3G25S06 | 592x592x600 | 6 | COARSE >40% | G3 | 5 | 3400 | 30 |
| SB-G4-287x287x600-3P | 320013M | PB4G25S03 | 287x287x600 | 3 | COARSE >60% | G4 | 1.25 | 850 | 35 |
| SB-G4-287x592x600-3P | 320014M | PB4G25S03 | 287x592x600 | 3 | COARSE >60% | G4 | 2.5 | 1700 | 35 |
| SB-G4-490x592x600-5P | 320015M | PB4G25S05 | 490x592x600 | 5 | COARSE >60% | G4 | 4.1 | 2800 | 35 |
| SB-G4-592x592x600-6P | 320016M | PB4G25S06 | 592x592x600 | 6 | COARSE >60% | G4 | 5 | 3400 | 35 |
| SB-M5-287x287x360-3P | 320017M | PB5G25S06 | 287x287x360 | 3 | ePM10>50% | M5 | 0.75 | 850 | 50 |
| SB-M5-592x592x360-3P | 320018M | PB5G25S03 | 592x592x360 | 3 | ePM10>50% | M5 | 1.5 | 1700 | 50 |
| SB-M5-490x592x360-5P | 320019M | PB5G25S05 | 490x592x360 | 5 | ePM10>50% | M5 | 2.5 | 2800 | 50 |
| SB-M5-592x592x360-6P | 320020M | PB5G25S06 | 592x592x360 | 6 | ePM10>50% | M5 | 3 | 3400 | 50 |
| SB-M5-287x287x600-3P | 320021M | PB5P25S03 | 287x287x600 | 3 | ePM10>50% | M5 | 1.25 | 850 | 40 |
| SB-M5-287x592x600-3P | 320022M | PB5P25S03 | 287x592x600 | 3 | ePM10>50% | M5 | 2.5 | 1700 | 40 |
| SB-M5-490x592x600-5P | 320023M | PB5P25S05 | 490x592x600 | 5 | ePM10>50% | M5 | 4.1 | 2800 | 40 |
| SB-M5-592x592x600-6P | 320024M | PB5P25S06 | 592x592x600 | 6 | ePM10>50% | M5 | 5 | 3400 | 40 |
