Airfiltech

CardBoard Filter Pads

Brands:
Availability: In Stock

Cardboard filter pads specially designed to fit paint spray booths

Cardboard Paint Spray Filter

  • Average arrestance: 80-98%
  • Final pressure drop: 128 Pa
Category: Tag: SKU: CAR-EN

Description

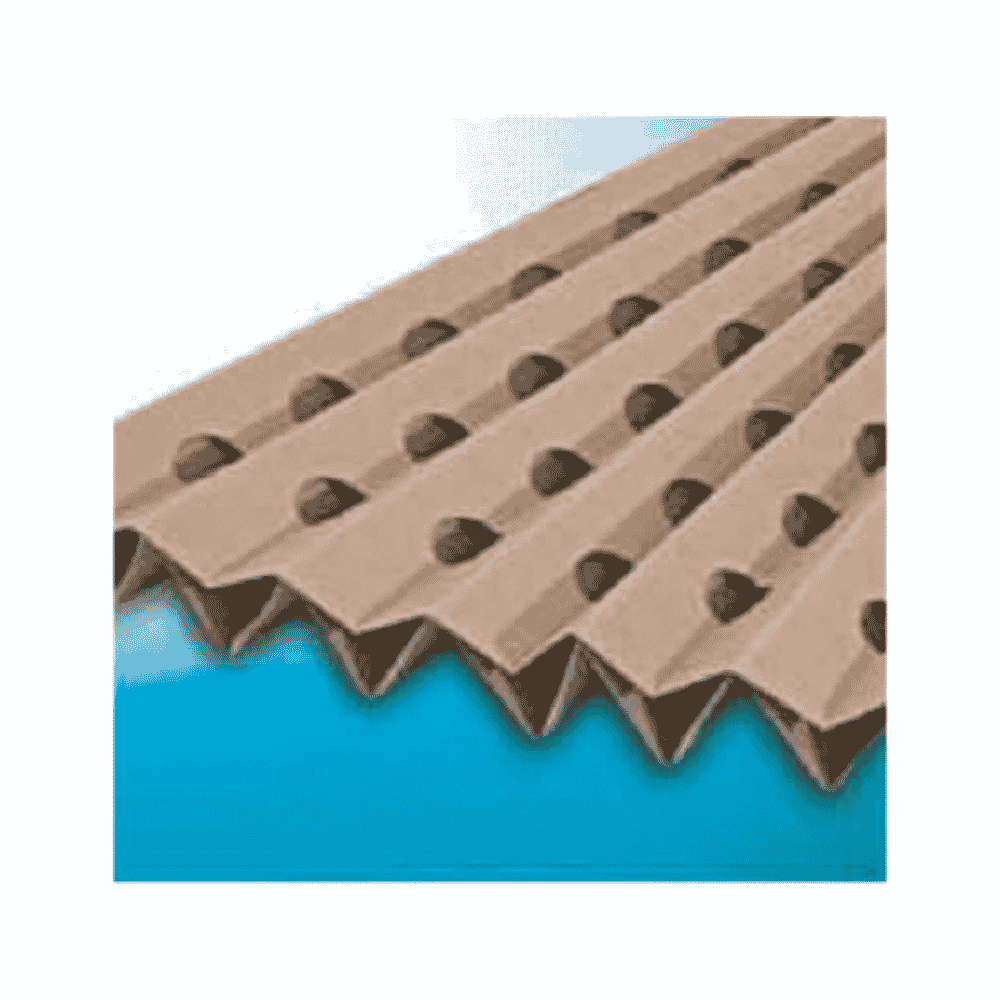

  • Cardboard filter pads are specially designed to fit paint spray booths in both horizontal and vertical configurations.
  • The filter features a V-shaped design with perfectly aligned airflow channels.
  • Cardboard filter pads offer 3-5 times higher paint holding capacity than conventional filter media (approximately 18 kg/m²).
  • These pleated filters are made from recyclable cardboard. They are only expanded to their final size at the time of installation, resulting in very low storage and shipping costs.
  • Origin: Turkey

Technical Specifications

Cardboard Paint Spray Filter

    • Rate rate separate particles trung average: 80-98%
    • Final pressure drop: 128 Pa

Specification Table

Model Code MGT Code Dimension wide (cm) Area buildup (m²) Pleat fold Thickness (mm)
CAR75 499901M Point Paper 75 75 10 270 65
CAR90 499902M Point Paper 90 90 10 290 65
CAR100 499903M Point Paper 100 100 10 360 65
