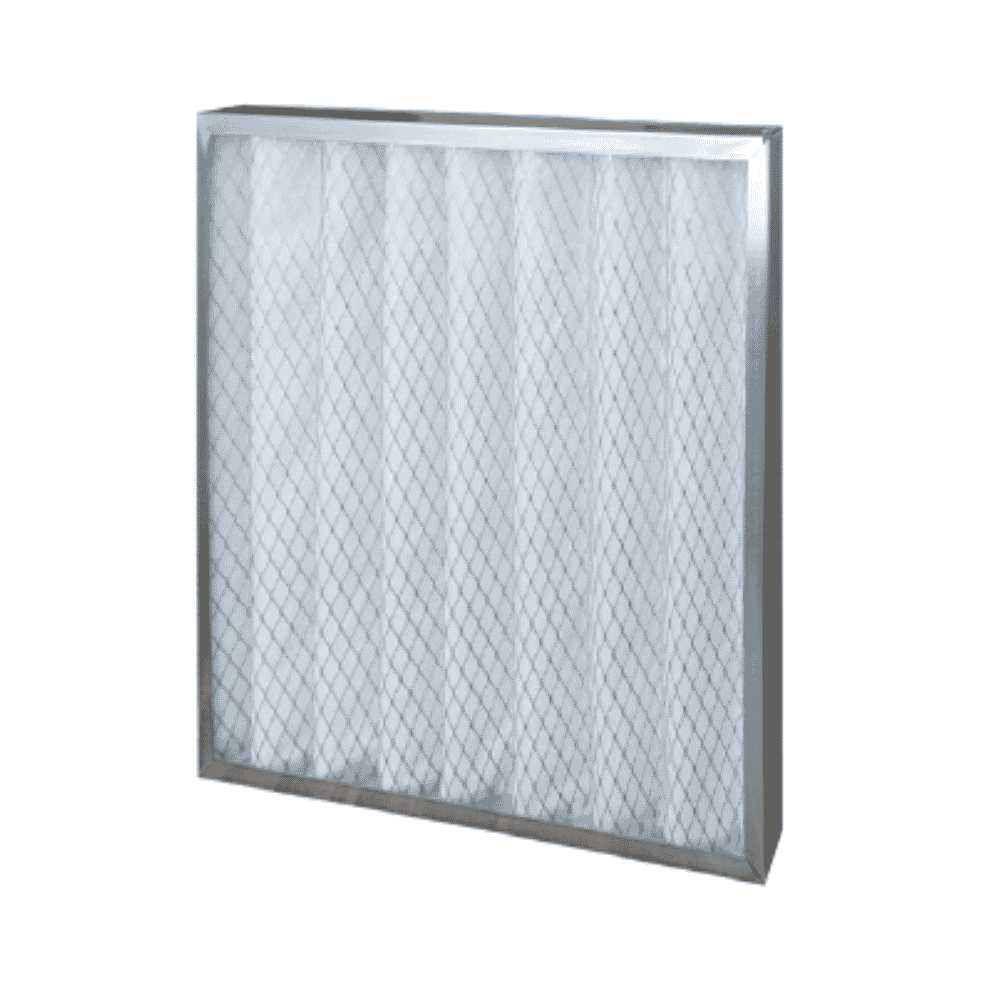

Name: APHT300-A - Airfiltech
SKU: APHT300-EN

APHT300-A

In Stock

High-temperature panel filter (up to 300°C) for filtering supply air and recirculated air in paint spray booths and drying booths.

Other options

Other options available on request:

Description

Application:

Description:

Filter media with graded density, made of the finest glass fibers bonded with a high-temperature-resistant binder,
Fitted into a complete filter frame with an aluminum mesh.
Origin: Turkey

Technical Specifications

Options khac

Other options available upon request:

Specification Table

Model	Code	MGT Code	Filter class ISO 16890	Filter class EN779:2012	Dimensions WxLxD (mm)	Filter media area (m²)
APHT300-G4-240x480x14-AL	599901M	HT300AAL2	ISO COARSE 60%	G4	240x480x14	0.12
APHT300-G4-480x480x14-AL	599902M	HT300AAL2	ISO COARSE 60%	G4	480x480x14	0.24
APHT300-G4-595x595x14-AL	599903M	HT300AAL2	ISO COARSE 60%	G4	595x595x14	0.35
APHT300-G4-610x610x14-AL	599904M	HT300AAL2	ISO COARSE 60%	G4	610x610x14	0.37
APHT300-G4-287x287x48-AZ	599905M	HT300AAZ2	ISO COARSE 60%	G4	287x287x48	0.20
APHT300-G4-287x592x48-AZ	599906M	HT300AAZ2	ISO COARSE 60%	G4	287x592x48	0.30
APHT300-G4-490x592x48-AZ	599907M	HT300AAZ2	ISO COARSE 60%	G4	490x592x48	0.50
APHT300-G4-592x592x48-AZ	599908M	HT300AAZ2	ISO COARSE 60%	G4	592x592x48	0.60
APHT300-M5-287x287x95-AZ	599909M	HT300AAZ2	ISO ePM10 50%	M5	287x287x95	0.40
APHT300-M5-287x592x95-AZ	599910M	HT300AAZ2	ISO ePM10 50%	M5	287x592x95	0.60
APHT300-M5-490x592x95-AZ	599911M	HT300AAZ2	ISO ePM10 50%	M5	490x592x95	1.00
APHT300-M5-592x592x95-AZ	599912M	HT300AAZ2	ISO ePM10 50%	M5	592x592x95	1.20
