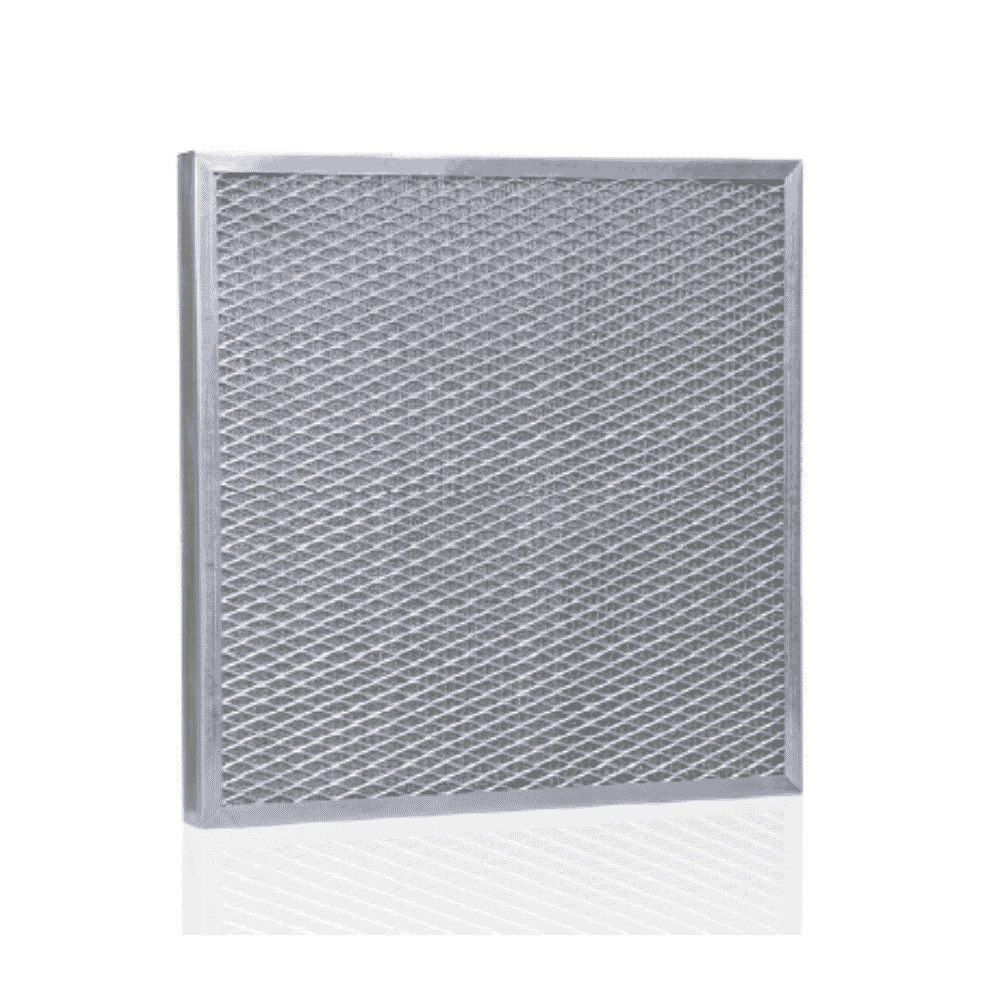

Name: Met Panel - Airfiltech
SKU: MP-EN

Met Panel

In Stock

Metal grease and oil separator filter, washable for repeated reuse, low pressure drop, high temperature resistance, suitable for corrosive environments.

Metal Oil and Grease Separator Filter

Frame: Galvanized steel
Filter media: Galvanized steel mesh
Style: Straight
Protective wire mesh: Both sides
Max. temperature: 200°C
Relative humidity: 100%
Fire resistance: F1 DIN 53438
Filtration stage: I
Final pressure drop: EN 779-2012: 250 Pa. ISO 16890: 200 Pa.

Description

APPLICATION:

Washable for repeated reuse
Low pressure drop
High temperature
Corrosive environments
Handles large contaminants
Separates oil or grease mist
Origin: Turkey

Technical Specifications

Filter metal type separate oil and grease

Frame: Galvanized steel
Filter media: Mesh steel galvanized zinc
Type shape: Straight
Protective mesh: Hai grille
Maximum temperature: 200°C
Relative humidity: 100%
Fire resistance: F1 DIN 53438
Filtration stage: I
Final pressure drop: EN 779-2012: 250 Pa. ISO 16890: 200 Pa.

Specification Table

Model	MGT Code	Dimensions WxLxD (mm)	Filter class ISO 16890	Filter class EN779:2012	Filter media area (m²)	Airflow (m³/h)	Initial pressure drop (Pa)	Weight (Kg)
MP-G2-287x287x25	PM2GOGL2	287x287x25	ISO COARSE 20%	G2	0.08	850	30	1.5
MP-G2-287x592x25	PM2GOGL2	287x592x25	ISO COARSE 20%	G2	0.17	1700	30	2.8
MP-G2-490x592x25	PM2GOGL2	490x592x25	ISO COARSE 20%	G2	0.29	2800	30	5.2
MP-G2-592x592x25	PM2GOGL2	592x592x25	ISO COARSE 20%	G2	0.35	3400	30	5.5
MP-G3-287x287x48	PM3GOGL2	287x287x48	ISO COARSE 40%	G3	0.08	850	40	2
MP-G3-287x592x48	PM3GOGL2	287x592x48	ISO COARSE 40%	G3	0.17	1700	40	4
MP-G3-490x592x48	PM3GOGL2	490x592x48	ISO COARSE 40%	G3	0.29	2800	40	7.25
MP-G3-592x592x48	PM3GOGL2	592x592x48	ISO COARSE 40%	G3	0.35	3400	40	8
