Airfiltech

RollMatic-G

Brands:
Availability: In Stock

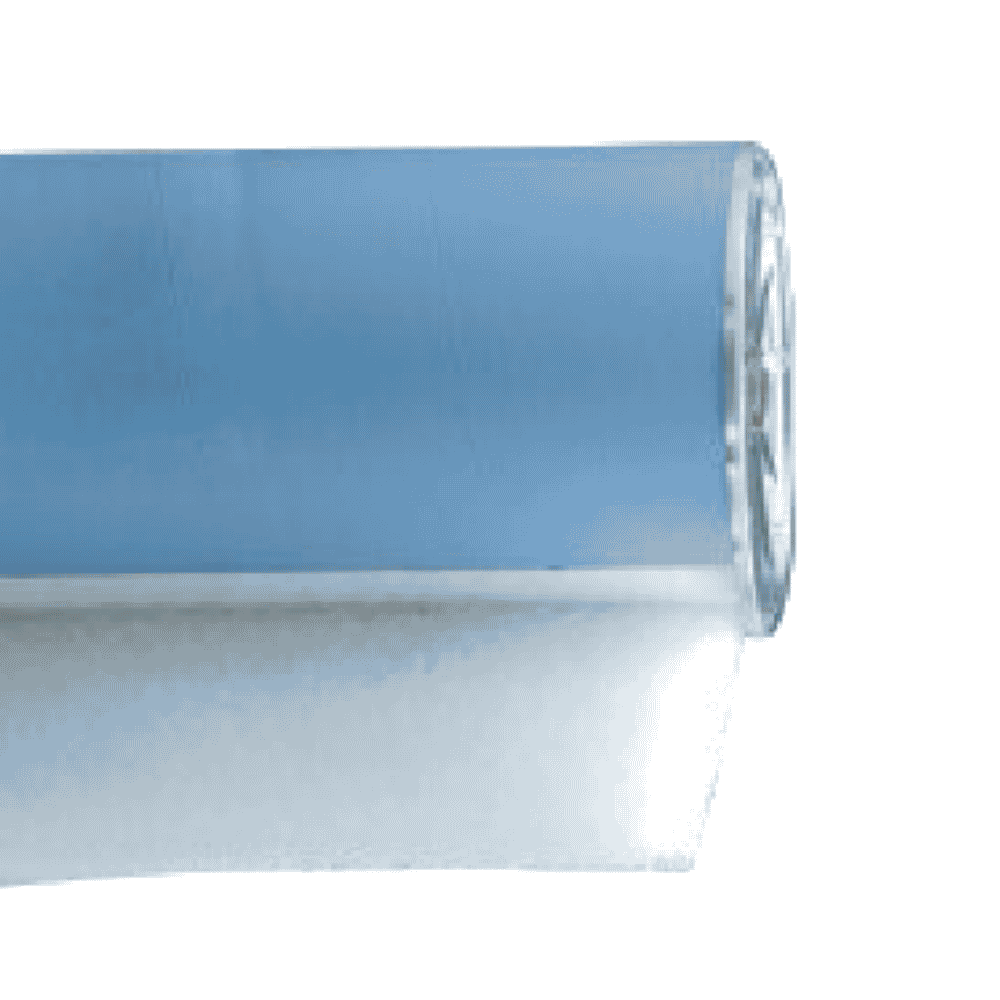

Automatic glass fiber roll filter used as a pre-filter in industrial production areas, reducing operating costs and delivering high performance.

Glass Fiber Roll Filter for Roll Matic Machine

  • Max. temperature: 120°C
  • Relative humidity: 100%
  • Face velocity: 1.5 m/s
  • Fire resistance: F1 DIN 53438
  • Roll dimensions: 536-836-1141-1446-1751-1950-2010-2056 mm
  • Filtration stage: I
  • Final pressure drop:
    EN 779-2012: 250 Pa.
    ISO 16890: 200 Pa.
Category: Tag: SKU: RollMatic-G-EN

Description

  • APPLICATION: Used as a pre-filter in industrial production areas. It helps reduce operating costs and delivers high performance.
  • DESCRIPTION: These automatic roll filters are made from a resilient glass fiber media with a graded structure. This means the filter fibers increase in density toward the clean side; when the roll reaches its contamination pressure limit, the filter media advances by unwinding fresh media from the clean side.
  • ORIGIN: Turkey

Technical Specifications

Fiberglass Filter Roll for machines Roll Matic

  • Maximum temperature: 120°C
  • Relative humidity: 100%
  • Face velocity: 1.5 m/s
  • Fire resistance: F1 DIN 53438
  • Dimensions roll: 536-836-1141-1446-1751-1950-2010-2056 mm
  • Filtration stage: I
  • Final pressure drop:
    EN 779-2012: 250 Pa.
    ISO 16890: 200 Pa.

Specification Table

Model Code MGT Code Filter class EN779:2012 Average dust arrestance (Am) Filter class ISO 16890 Weight (gr/m²) Thickness (mm) Initial pressure drop (Pa) Dust holding capacity (DHC) (gr/m²)
GR290-G3-Autoroll 520012M ROLLFILTER-4INC-1160 G3 80% ISO COARSE 40% 290 60 48 350
