Name: RollMatic-S - Airfiltech
SKU: RollMatic-S-EN

RollMatic-S

In Stock

Automatic synthetic fiber roll filter used as a pre-filter in industrial production areas, reducing operating costs and delivering high performance.

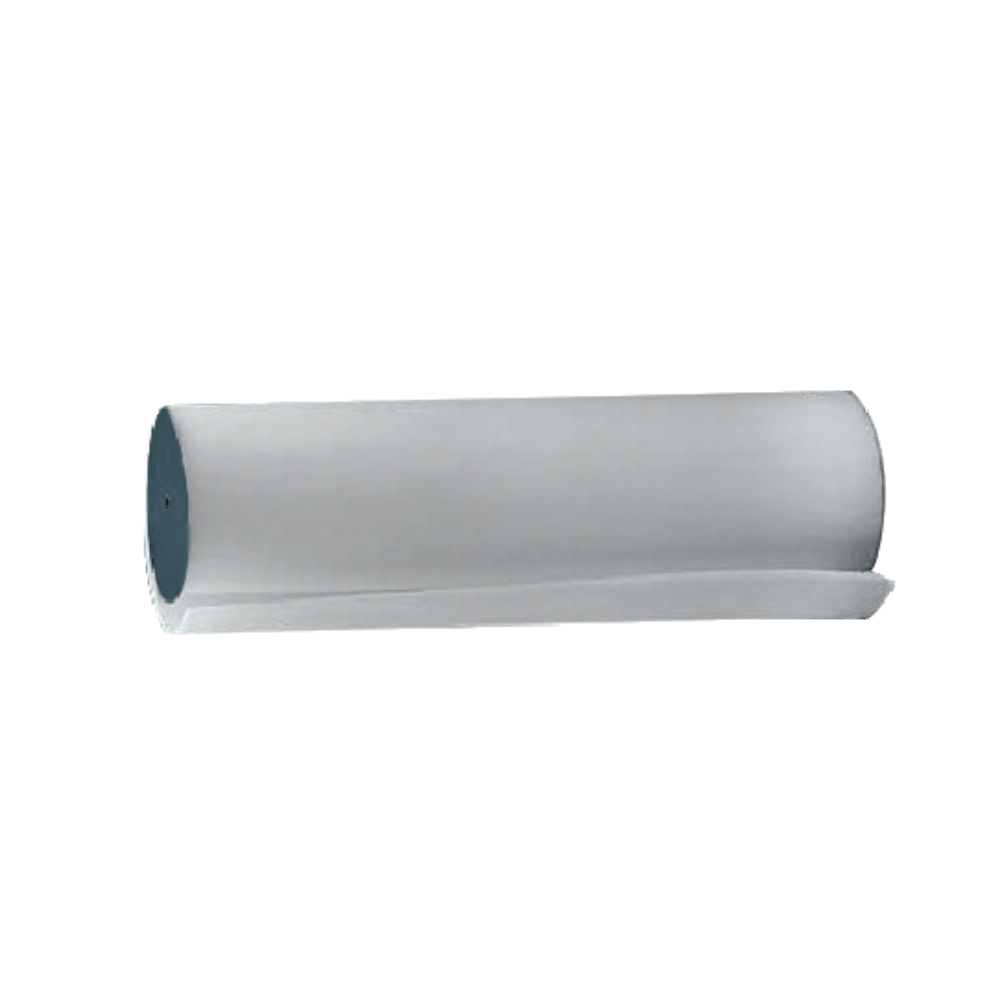

Synthetic Fiber Roll Filter

Max. temperature: 90°C
Relative humidity: 100%
Recommended face velocity: 1.5 m/s
Fire resistance: F1 DIN 53438
Roll dimensions: 536-836-1141-1446-1751-1950- 2010-2056 mm
Filtration stage: I
Final pressure drop:
EN 779-2012: 250 Pa.
ISO 16890: 200 Pa.

Category: Coarse Filtration Tag: Air Filtech SKU: RollMatic-S-EN

Description

APPLICATION: Used as a pre-filter in industrial production areas. It helps reduce operating costs and delivers high performance.

DESCRIPTION

These automatic roll filters are made from a resilient synthetic fiber filter media, reinforced with a supporting mesh layer. This filter media has a graded structure, meaning the density of the filter fibers increases toward the clean air side. This graded structure ensures high dust holding capacity and consistent performance.
Origin: Turkey

ADVANTAGES: High dust holding capacity (DHC: dust holding capacity). High performance with low pressure drop. High resistance to explosive pressure

Technical Specifications

Synthetic Fiber Filter Roll

Maximum temperature: 90°C
Relative humidity: 100%
Face velocity recommended recommended: 1.5 m/s
Fire resistance: F1 DIN 53438
Dimensions roll: 536-836-1141-1446-1751-1950- 2010-2056 mm
Filtration stage: I
Final pressure drop:
EN 779-2012: 250 Pa.
ISO 16890: 200 Pa.

Specification Table

Model	Code	MGT Code	Filter class EN779:2012	Average dust arrestance (Am)	Filter class ISO 16890	Weight (gr/m²)	Thickness (mm)	Initial pressure drop (Pa)	Dust holding capacity (DHC) (gr/m²)
SR210-G3-Autoroll	520013M	ROLLFILTER-4INC-1160	G3	80%	ISO COARSE>40%	210	10	12	350
