Name: RollSys - Airfiltech
SKU: RollSys-EN

RollSys

In Stock

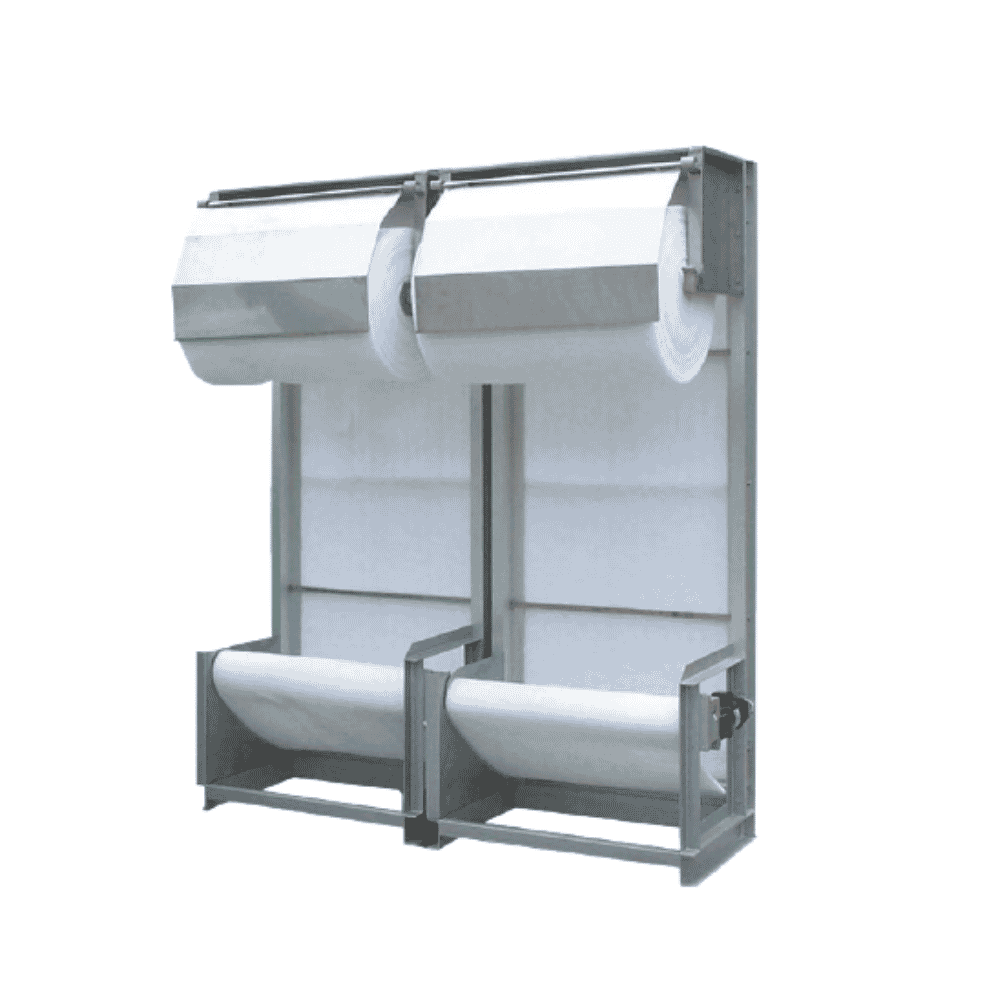

Roll Matic System – a roll-type filter with an automatic filter-media advance mechanism, offering a compact installation footprint relative to its operating capacity.

Roll Matic System

Filter class per EN 779-2012: G3
Average arrestance per EN779-2012: 80%
Filter class per ISO 16890: ISO Coarse > 40%
Max. temperature: 80-120°C
Relative humidity: 100%
Recommended face velocity: 1.5 m/s
Fire resistance: F1 DIN 53438
Filtration stage: I-II
Final pressure drop:
EN 779-2012: 250 Pa.
ISO 16890: 200 Pa.

Description

DESCRIPTION: The advantage of a roll-type filter with an automatic media-advance mechanism is its compact size relative to its independent operating capacity. In fact, the space required to install the filter media rolls accounts for only 20% (for small filters) to 10% (for large filters) of the total filtering surface area. This engineering design is made possible by a rational mechanical structure and the compressible nature of the filter media used. This allows filter rolls to be produced with a reduced diameter while still ensuring maximum advance length, enabling the system to operate reliably over a long period even under harsh working conditions.
Origin: Turkey

Technical Specifications

System traditional Roll Matic

Filter class EN 779-2012: G3
Efficiency power maintain dust trung average per EN779-2012: 80%
Filter class per ISO 16890: ISO Coarse > 40%
Maximum temperature: 80-120°C
Relative humidity: 100%
Face velocity recommended recommended: 1.5 m/s
Fire resistance: F1 DIN 53438
Filtration stage: I-II
Final pressure drop:
EN 779-2012: 250 Pa.
ISO 16890: 200 Pa.

Specification Table

Model	Code	MGT Code	Filter class EN779-2012	Filter class ISO 16890	Weight (gr/m²)	Thickness (mm)	Initial pressure drop (Pa)	Dust holding capacity (DHC) (gr/m²)
R210-G3-Autoroll	520014M	RMROLL-SYT	G3	ISO COARSE >40%	210	15	12	350
