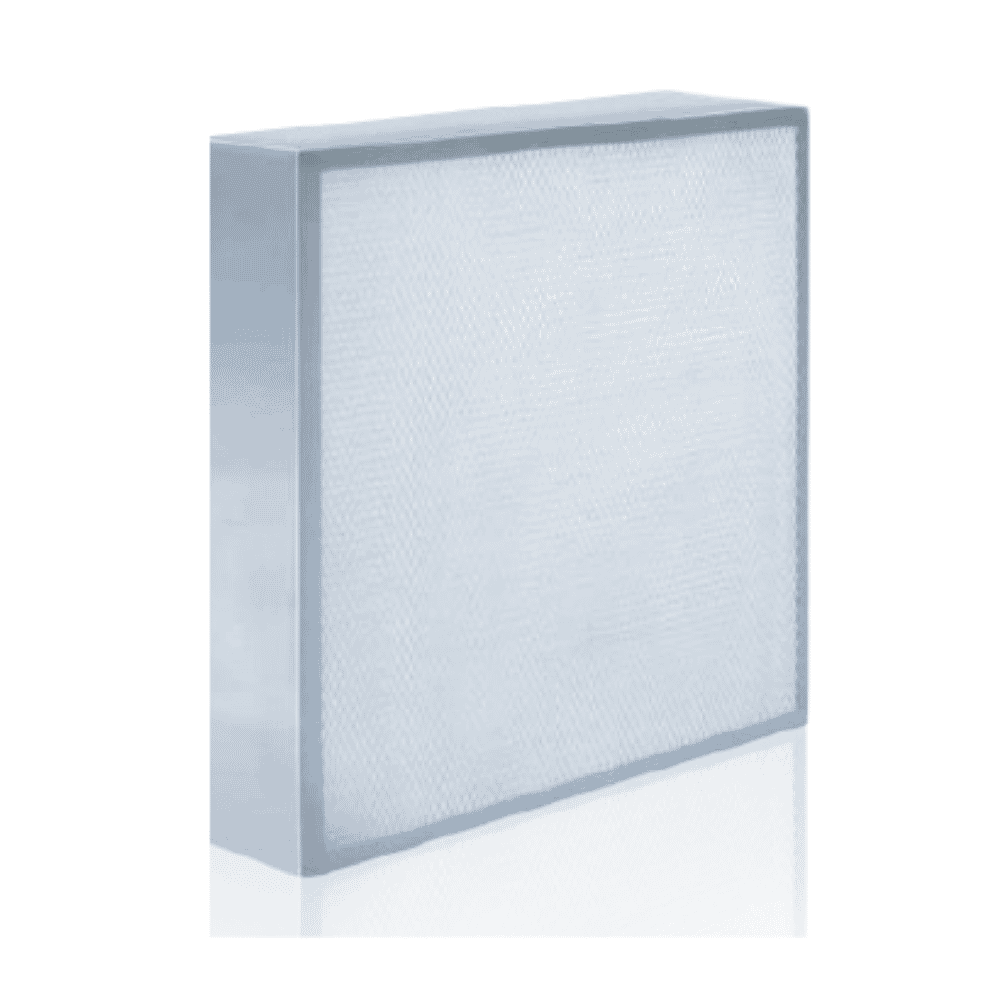

AbSo-69-P48

Name: AbSo-69-P48 - Airfiltech
SKU: AbSo-69-P48-EN

In Stock

Absolute EPA-HEPA filter for turbulent air flow, used for cleanroom ventilation systems; applications in microelectronics, food, photography, data centers, hospitals, and medical device manufacturing.

Download Catalogue

Category: EPA/HEPA/ULPA Filtration Tag: Air Filtech SKU: AbSo-69-P48-EN

Description

APPLICATION

• Absolute EPA-HEPA filter.
• Cleanroom ventilation systems.
• Used in the microelectronics, food, photography, data center, hospital, and medical device industries.

Technical Specifications

Specification

Absolute filter for turbulent airflow
Frame: Galvanized steel
Filter media: Fiberglass
Protective mesh: Air outlet side
Gasket type: Polyurethane
Gasket position: Air inlet side
Filtration stage: III-IV
Efficiency power particles MPPS EN 1822: E10 (≥85%), E11 (≥95%), E12 (≥99.5%), H13 (≥99.95%), H14 (≥99.995%), U15 (≥99.9995%).
Maximum temperature: 80oC
Relative humidity: 100%
Final pressure drop: 600 Pa
Pleat depth: 48mm

Certification

Hygiene certification: VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Frame: Aluminum, SS304, SS316.
Filter media: High-temperature type (Maximum maximum 120°C).
Type khung HF: simplify 25/20 mm, double 25/20 mm, Dimensions depending adjust.
Protective mesh: No mesh, Both sides.
Gasket type: No gasket, Rubber, EPDM, High-temperature gasket.
Gasket position: None, Air outlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class EN 1822	Pleat depth (mm)	Filter media area (m2)	Airflow (m3/h)	Initial pressure drop (Pa)	Weight (kg)
AH13-305x305x69-10/02-48	147001M	HF13GRKN1PG	305x305x69	H13	48	2.4	335	250	1.85
AH13-305x610x69-10/02-48	147002M	HF13GRKN1PG	305x610x69	H13	48	5	670	250	3.5
AH13-457x457x69-10/02-48	147003M	HF13GRKN1PG	457x457x69	H13	48	5.5	740	250	4.25
AH13-457x610x69-10/02-48	147004M	HF13GRKN1PG	457x610x69	H13	48	7.5	1000	250	6.5
AH13-610x610x69-10/02-48	147005M	HF13GRKN1PG	610x610x69	H13	48	10	1340	250	6.8
AH13-610x762x69-10/02-48	147006M	HF13GRKN1PG	610x762x69	H13	48	12.2	1630	250	8.5
AH13-610x915x69-10/02-48	147007M	HF13GRKN1PG	610x915x69	H13	48	15	1965	250	10
AH13-610x1220x69-10/02-48	147008M	HF13GRKN1PG	610x1220x69	H13	48	20	2635	250	12.5
AH14-305x305x69-10/02-48	147009M	HF14GRKN1PG	305x305x69	H14	48	2.4	290	250	1.85
AH14-305x610x69-10/02-48	147010M	HF14GRKN1PG	305x610x69	H14	48	5	575	250	3.5
AH14-457x457x69-10/02-48	147011M	HF14GRKN1PG	457x457x69	H14	48	5.5	640	250	4.25
AH14-457x610x69-10/02-48	147012M	HF14GRKN1PG	457x610x69	H14	48	7.5	850	250	6.5
AH14-610x610x69-10/02-48	147013M	HF14GRKN1PG	610x610x69	H14	48	10	1150	250	6.8
AH14-610x762x69-10/02-48	147014M	HF14GRKN1PG	610x762x69	H14	48	12.2	1420	250	8.5
AH14-610x915x69-10/02-48	147015M	HF14GRKN1PG	610x915x69	H14	48	15	1725	250	10
AH14-610x1220x69-10/02-48	147016M	HF14GRKN1PG	610x1220x69	H14	48	20	2300	250	12.5
AU15-305x305x69-10/02-48	147017M	HF15GRKN1PG	305x305x69	U15	48	2.4	280	250	1.85
AU15-305x610x69-10/02-48	147018M	HF15GRKN1PG	305x610x69	U15	48	5	560	250	3.5
AU15-457x457x69-10/02-48	147019M	HF15GRKN1PG	457x457x69	U15	48	5.5	625	250	4.25
AU15-457x610x69-10/02-48	147020M	HF15GRKN1PG	457x610x69	U15	48	7.5	825	250	6.5
AU15-610x610x69-10/02-48	147021M	HF15GRKN1PG	610x610x69	U15	48	10	1110	250	6.8
AU15-610x762x69-10/02-48	147022M	HF15GRKN1PG	610x762x69	U15	48	12.2	1380	250	8.5
AU15-610x915x69-10/02-48	147023M	HF15GRKN1PG	610x915x69	U15	48	15	1670	250	10
AU15-610x1220x69-10/02-48	147024M	HF15GRKN1PG	610x1220x69	U15	48	20	2200	250	12.5
AE10-305x305x69-10/02-48	147051M	HF10GRKN1PG	305x305x69	E10	48	2.4	540	250	1.85
AE10-305x610x69-10/02-48	147052M	HF10GRKN1PG	305x610x69	E10	48	5	1080	250	3.5
AE10-457x457x69-10/02-48	147053M	HF10GRKN1PG	457x457x69	E10	48	5.5	1200	250	4.25
AE10-457x610x69-10/02-48	147054M	HF10GRKN1PG	457x610x69	E10	48	7.5	1600	250	6.5
AE10-610x610x69-10/02-48	147055M	HF10GRKN1PG	610x610x69	E10	48	10	2150	250	6.8
AE10-610x762x69-10/02-48	147056M	HF10GRKN1PG	610x762x69	E10	48	12.2	2700	250	8.5
AE10-610x915x69-10/02-48	147057M	HF10GRKN1PG	610x915x69	E10	48	15	3200	250	10
AE10-610x1220x69-10/02-48	147058M	HF10GRKN1PG	610x1220x69	E10	48	20	4300	250	12.5
AE11-305x305x69-10/02-48	147059M	HF11GRKN1PG	305x305x69	E11	48	2.4	500	250	1.85
AE11-305x610x69-10/02-48	147060M	HF11GRKN1PG	305x610x69	E11	48	5	1000	250	3.5
AE11-457x457x69-10/02-48	147061M	HF11GRKN1PG	457x457x69	E11	48	5.5	1120	250	4.25
AE11-457x610x69-10/02-48	147062M	HF11GRKN1PG	457x610x69	E11	48	7.5	1500	250	6.5
AE11-610x610x69-10/02-48	147063M	HF11GRKN1PG	610x610x69	E11	48	10	2000	250	6.8
AE11-610x762x69-10/02-48	147064M	HF11GRKN1PG	610x762x69	E11	48	12.2	2500	250	8.5
AE11-610x915x69-10/02-48	147065M	HF11GRKN1PG	610x915x69	E11	48	15	3000	250	10
AE11-610x1220x69-10/02-48	147066M	HF11GRKN1PG	610x1220x69	E11	48	20	4000	250	12.5
AE12-305x305x69-10/02-48	147067M	HF12GRKN1PG	305x305x69	E12	48	2.4	290	250	1.85
AE12-305x610x69-10/02-48	147068M	HF12GRKN1PG	305x610x69	E12	48	5	580	250	3.5
AE12-457x457x69-10/02-48	147069M	HF12GRKN1PG	457x457x69	E12	48	5.5	650	250	4.25
AE12-457x610x69-10/02-48	147070M	HF12GRKN1PG	457x610x69	E12	48	7.5	870	250	6.5
AE12-610x610x69-10/02-48	147071M	HF12GRKN1PG	610x610x69	E12	48	10	1150	250	6.8
AE12-610x762x69-10/02-48	147072M	HF12GRKN1PG	610x762x69	E12	48	12.2	1450	250	8.5
AE12-610x915x69-10/02-48	147073M	HF12GRKN1PG	610x915x69	E12	48	15	1750	250	10
AE12-610x1220x69-10/02-48	147074M	HF12GRKN1PG	610x1220x69	E12	48	20	2325	250	12.5
