Description
• Absolute filter used in contamination-controlled environments.
• Cleanrooms.
• Laminar flow cabinets.
• Operating rooms.
AirGT-4V-420

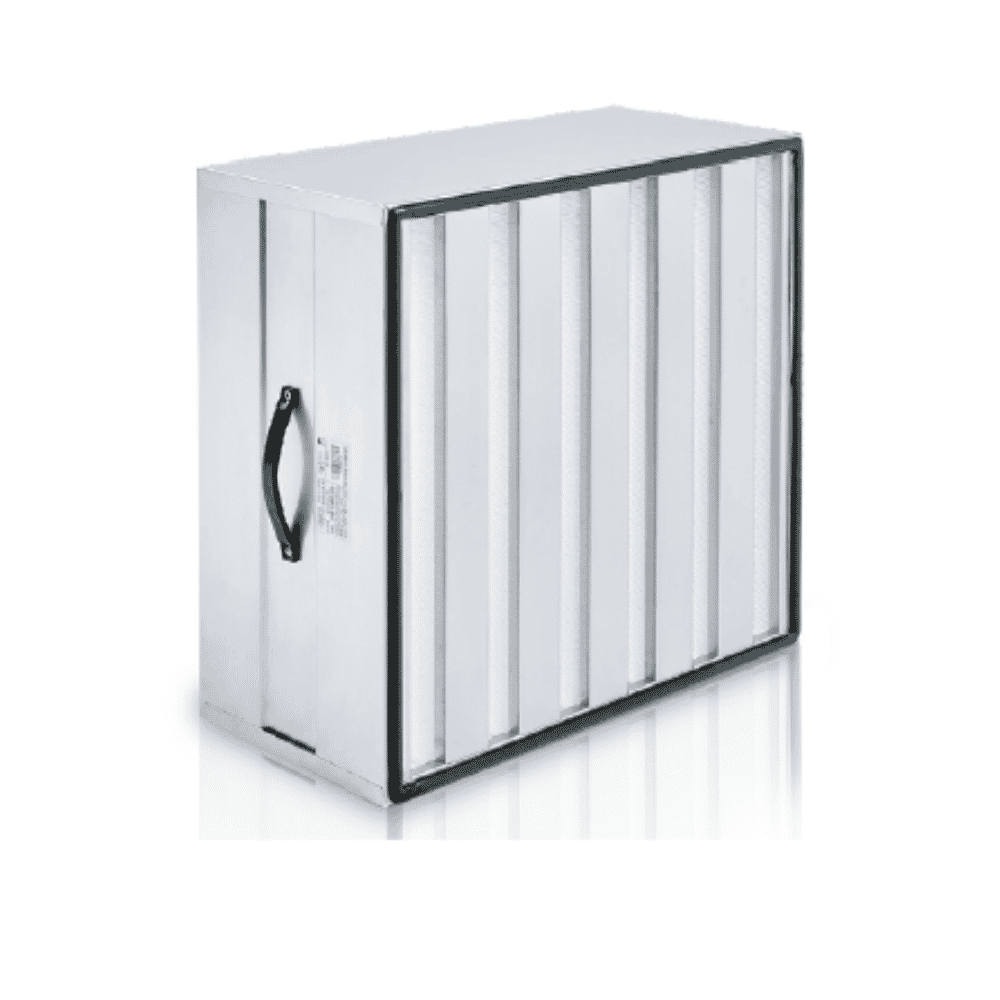

Rigid V-Bank HEPA filter using Absolute filter media in contamination-controlled environments, cleanrooms, laminar flow cabinets, and operating rooms; especially suited for gas turbines and compressors.
Description
Technical Specifications
Technical Specifications
- Specification
- Type filter: HEPA Rigid V-Bank (4V)
- Frame: Plastic, color white
- Filter media: Fiberglass
- Frame depth: 25 mm
- Gasket type: Polyurethane, position position grille air out
- Efficiency power particles MPPS EN 1822: E10 (≥85%), E11 (≥95%), E12 (≥99.5%), H13 (≥99.95%)
- Maximum temperature: 80°C; Relative humidity: 100%
- Filtration stage: III-IV; Final pressure drop: 600 Pa
- Fire classification: K1/F1 according to standard DIN53438
- Certification
- Hygiene certification: Filter HEPA | VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
- Food-contact compliant materials: Filter HEPA | (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA – Determining the Regulatory Status of Components of a Food Contact Material.
- Other options available upon request
- Color: White, Black
- Frame depth: 20 mm, or bond compound 25 mm & 20 mm
- Filter media: High-temperature (maximum 120°C)
- Gasket type: None, Rubber, EPDM
- Gasket position: None, Air inlet side, Both sides
Specification Table
Specification Table
| Model | Code | MGT Code | Dimensions WxLxD (mm) | Filter class EN 1822 | Filter media area (m2) | Airflow (m3/h) | Initial pressure drop (Pa) | Weight (kg) |
| AGT4V-H13-287x592x420-01/00-16 | AGT249101M | MT13P4B25AR16PC | 287x592x420 | H13 | 16 | 1700 | 250 | 5 |
| AGT4V-H13-490x592x420-01/00-24 | AGT249102M | MT13P4B25AR24PC | 490x592x420 | H13 | 24 | 2800 | 250 | 8.5 |
| AGT4V-H13-592x592x420-01/00-32 | AGT249103M | MT13P4B25AR32PC | 592x592x420 | H13 | 32 | 3400 | 250 | 9 |
| AGT4V-E10-287x592x420-01/00-16 | AGT249151M | MT10P4B25AR16PC | 287x592x420 | E10 | 16 | 1700 | 135 | 5 |
| AGT4V-E10-490x592x420-01/00-24 | AGT249152M | MT10P4B25AR24PC | 490x592x420 | E10 | 24 | 2800 | 135 | 8.5 |
| AGT4V-E10-592x592x420-01/00-32 | AGT249153M | MT10P4B25AR32PC | 592x592x420 | E10 | 32 | 3400 | 135 | 9 |
| AGT4V-E11-287x592x420-01/00-16 | AGT249154M | MT11P4B25AR16PC | 287x592x420 | E11 | 16 | 1700 | 155 | 5 |
| AGT4V-E11-490x592x420-01/00-24 | AGT249155M | MT11P4B25AR24PC | 490x592x420 | E11 | 24 | 2800 | 155 | 8.5 |
| AGT4V-E11-592x592x420-01/00-32 | AGT249156M | MT11P4B25AR32PC | 592x592x420 | E11 | 32 | 3400 | 155 | 9 |
| AGT4V-E12-287x592x420-01/00-16 | AGT249157M | MT12P4B25AR16PC | 287x592x420 | E12 | 16 | 1700 | 200 | 5 |
| AGT4V-E12-490x592x420-01/00-24 | AGT249158M | MT12P4B25AR24PC | 490x592x420 | E12 | 24 | 2800 | 200 | 8.5 |
| AGT4V-E12-592x592x420-01/00-32 | AGT249159M | MT12P4B25AR32PC | 592x592x420 | E12 | 32 | 3400 | 200 | 9 |
