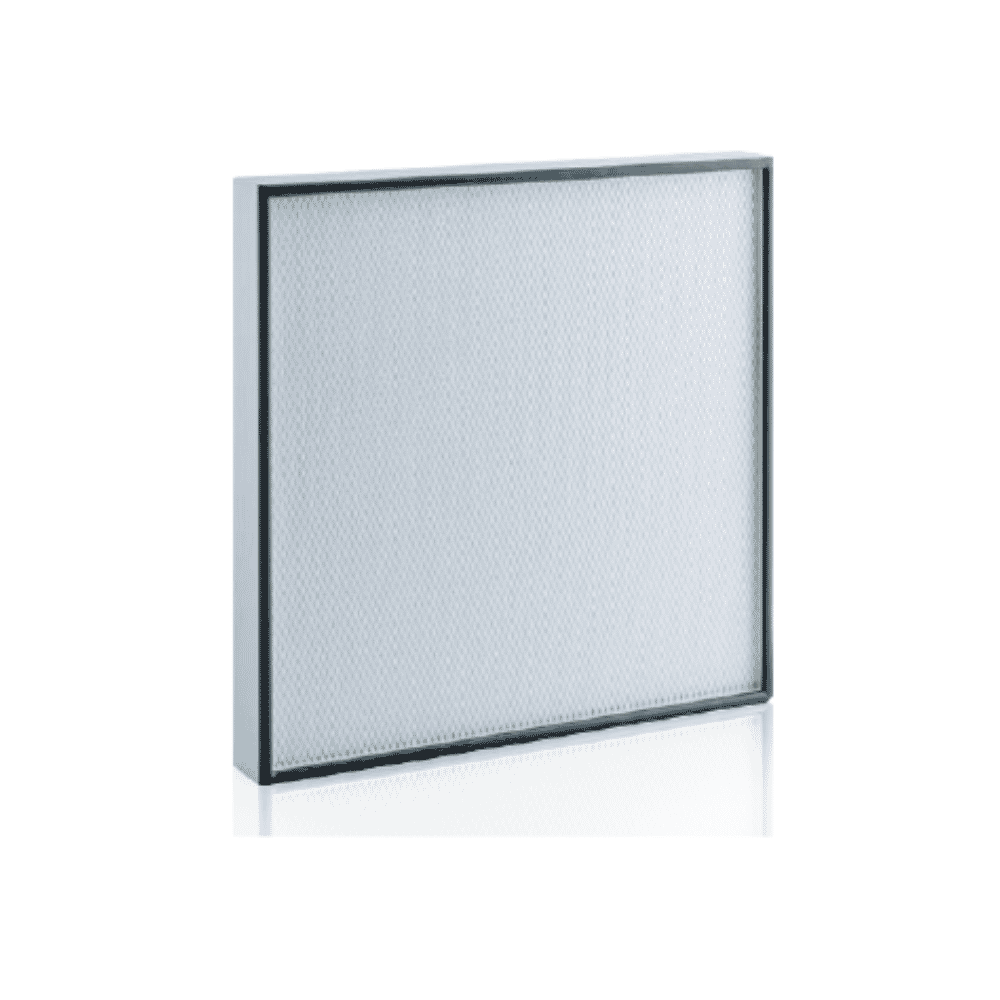

Mega AP-150-P100

Name: Mega AP-150-P100 - Airfiltech
SKU: Mega AP-150-P100-EN

In Stock

Absolute-efficiency laminar flow filter, used for absolute air filtration systems in contamination-controlled environments, cleanrooms, laminar air flow (LAF) equipment, and operating rooms.

Download Catalogue

Category: EPA/HEPA/ULPA Filtration Tag: Air Filtech SKU: Mega AP-150-P100-EN

Description

APPLICATION

• Used for absolute air filtration systems in contamination-controlled environments.
• Suitable for cleanrooms, laminar air flow (LAF) equipment, and operating rooms.

Technical Specifications

Specification

Laminar-flow filter
Frame: Aluminum
Filter media: Fiberglass
Protective mesh: Hai grille
Gasket type: Polyurethane
Gasket position: Air inlet side
Filtration stage: III-IV
Efficiency power particles MPPS EN 1822: H13 (≥99.95%), H14 (≥99.995%), U15 (≥99.9995%).
Maximum temperature: 80°C
Relative humidity: 100%
Final pressure drop: 600 Pa
Pleat depth: 100mm
Fire classification: K1/F1 according to standard DIN53438

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Filter media: High-temperature type (Maximum maximum 120°C).
Protective mesh: No mesh, Air outlet side, Both sides.
Gasket type: None, Rubber, EPDM, high-temperature.
Gasket position: None, Air outlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class EN 1822	Pleat depth (mm)	Filter media area (m2)	Airflow (m3/h)	Initial pressure drop (Pa)	Weight (kg)
MAP13-305x305x150-10/22-100	151501M	HL13ARL2PG	305x305x150	H13	100	4.5	150	80	2
MAP13-305x610x150-10/22-100	151502M	HL13ARL2PG	305x610x150	H13	100	9	300	80	3.8
MAP13-457x457x150-10/22-100	151503M	HL13ARL2PG	457x457x150	H13	100	10	350	80	5
MAP13-457x610x150-10/22-100	151504M	HL13ARL2PG	457x610x150	H13	100	13.5	450	80	7
MAP13-610x610x150-10/22-100	151505M	HL13ARL2PG	610x610x150	H13	100	18	600	80	8
MAP13-610x762x150-10/22-100	151506M	HL13ARL2PG	610x762x150	H13	100	22.65	750	80	9
MAP13-610x915x150-10/22-100	151507M	HL13ARL2PG	610x915x150	H13	100	27	900	80	10.5
MAP13-610x1220x150-10/22-100	151508M	HL13ARL2PG	610x1220x150	H13	100	36	1500	80	13.5
MAP13-762x762x150-10/22-100	151509M	HL13ARL2PG	762x762x150	H13	100	28	900	80	10.5
MAP13-762x915x150-10/22-100	151510M	HL13ARL2PG	762x915x150	H13	100	34	1150	80	11
MAP13-915x915x150-10/22-100	151511M	HL13ARL2PG	915x915x150	H13	100	41.5	1350	80	12
MAP14-305x305x150-10/22-100	151512M	HL14ARL2PG	305x305x150	H14	100	4.5	150	90	2
MAP14-305x610x150-10/22-100	151513M	HL14ARL2PG	305x610x150	H14	100	9	300	90	3.8
MAP14-457x457x150-10/22-100	151514M	HL14ARL2PG	457x457x150	H14	100	10	350	90	5
MAP14-457x610x150-10/22-100	151515M	HL14ARL2PG	457x610x150	H14	100	13.5	450	90	7
MAP14-610x610x150-10/22-100	151516M	HL14ARL2PG	610x610x150	H14	100	18	600	90	8
MAP14-610x762x150-10/22-100	151517M	HL14ARL2PG	610x762x150	H14	100	22.65	750	90	9
MAP14-610x915x150-10/22-100	151518M	HL14ARL2PG	610x915x150	H14	100	27	900	90	10.5
MAP14-610x1220x150-10/22-100	151519M	HL14ARL2PG	610x1220x150	H14	100	36	1200	90	13.5
MAP14-762x762x150-10/22-100	151520M	HL14ARL2PG	762x762x150	H14	100	28	900	90	10.5
MAP14-762x915x150-10/22-100	151521M	HL14ARL2PG	762x915x150	H14	100	34	1150	90	11
MAP14-915x915x150-10/22-100	151522M	HL14ARL2PG	915x915x150	H14	100	41.5	1350	90	12
MAP15-305x305x150-10/22-100	151523M	HL15ARL2PG	305x305x150	U15	100	4.5	150	100	2
MAP15-305x610x150-10/22-100	151524M	HL15ARL2PG	305x610x150	U15	100	9	300	100	3.8
MAP15-457x457x150-10/22-100	151525M	HL15ARL2PG	457x457x150	U15	100	10	350	100	5
MAP15-457x610x150-10/22-100	151526M	HL15ARL2PG	457x610x150	U15	100	13.5	450	100	7
MAP15-610x610x150-10/22-100	151527M	HL15ARL2PG	610x610x150	U15	100	18	600	100	8
MAP15-610x762x150-10/22-100	151528M	HL15ARL2PG	610x762x150	U15	100	22.65	750	100	9
MAP15-610x915x150-10/22-100	151529M	HL15ARL2PG	610x915x150	U15	100	27	900	100	10.5
MAP15-610x1220x150-10/22-100	151530M	HL15ARL2PG	610x1220x150	U15	100	36	1200	100	13.5
MAP15-762x762x150-10/22-100	151531M	HL15ARL2PG	762x762x150	U15	100	28	900	100	10.5
MAP15-762x915x150-10/22-100	151532M	HL15ARL2PG	762x915x150	U15	100	34	1150	100	11
MAP15-915x915x150-10/22-100	151533M	HL15ARL2PG	915x915x150	U15	100	41.5	1350	100	12
