Description
APPLICATION
• Used in gel-seal systems.
• Suitable for cleanrooms with laminar air flow (LAF) cabinets and operating rooms.

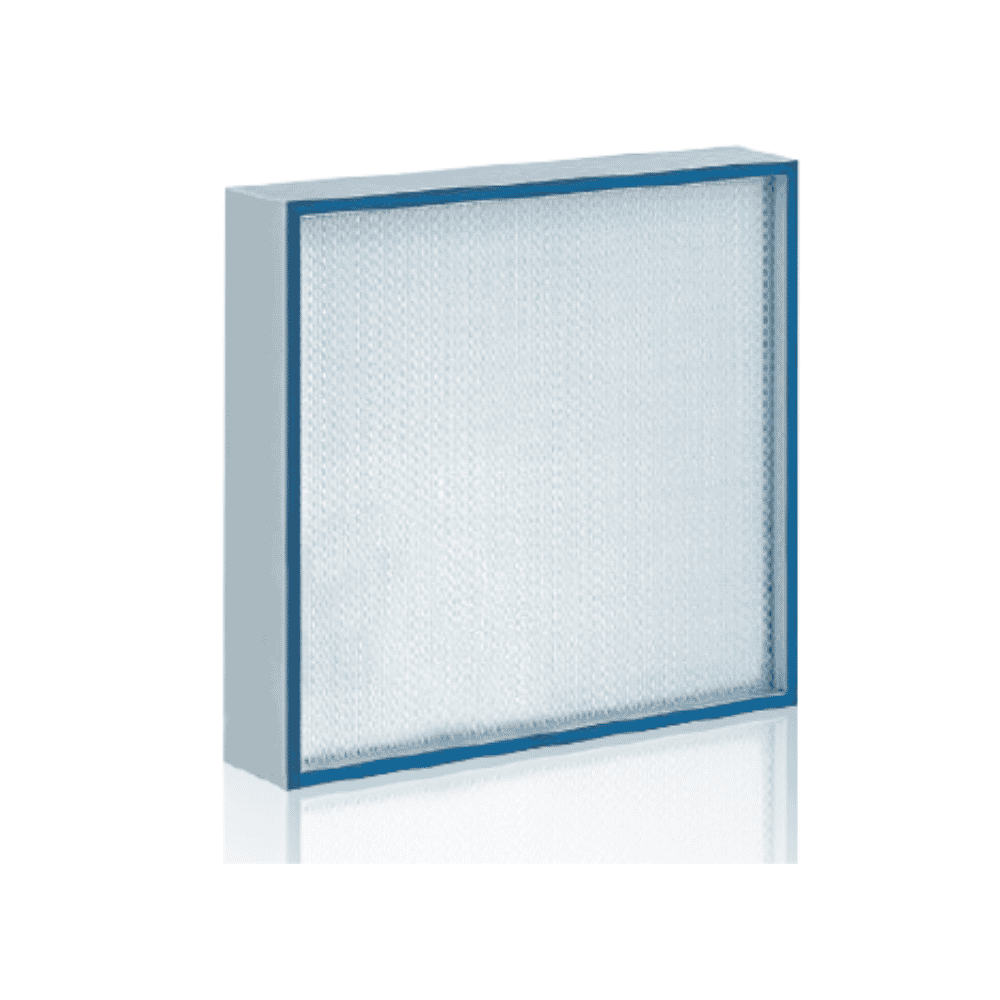

Mega Gel-78-P58
HEPA Gel filter used in gel-seal systems; cleanrooms with laminar air flow (LAF) cabinets and operating rooms.
Description
Technical Specifications
Technical Specifications
- Specification
- Filter HEPA Gel
- Frame: Aluminum
- Filter media: Fiberglass
- Protective mesh: Hai grille
- Gasket type: Gel
- Gasket position: Air inlet side
- Filtration stage: III-IV
- Efficiency power particles MPPS EN 1822: H13 (≥99.95%), H14 (≥99.995%), U15 (≥99.9995%).
- Maximum temperature: 80°C
- Relative humidity: 100%
- Final pressure drop: 600 Pa
- Pleat depth: 58mm
- Fire classification: K1/F1 according to standard DIN53438
- Certification
- Hygiene certification: VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
- Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.
- Other options available upon request
- Protective mesh: No mesh, Air outlet side.
- Gasket position: Air outlet side.
Specification Table
Specification Table
| Model | Code | MGT Code | Dimensions WxLxD | Filter class EN 1822 | Pleat depth (mm) | Filter media area (m2) | Airflow (m3/h) | Initial pressure drop (Pa) | Weight (kg) |
| MAG13-305x305x78-10/22-58 | G158001M | HG13ARM2GG | 305x305x78 | H13 | 58 | 2.8 | 150 | 110 | 1.85 |
| MAG13-305x610x78-10/22-58 | G158002M | HG13ARM2GG | 305x610x78 | H13 | 58 | 5.5 | 300 | 110 | 3.5 |
| MAG13-457x457x78-10/22-58 | G158003M | HG13ARM2GG | 457x457x78 | H13 | 58 | 6 | 350 | 110 | 4.25 |
| MAG13-457x610x78-10/22-58 | G158004M | HG13ARM2GG | 457x610x78 | H13 | 58 | 8 | 450 | 110 | 6.5 |
| MAG13-610x610x78-10/22-58 | G158005M | HG13ARM2GG | 610x610x78 | H13 | 58 | 10.5 | 600 | 110 | 6.8 |
| MAG13-610x762x78-10/22-58 | G158006M | HG13ARM2GG | 610x762x78 | H13 | 58 | 13 | 750 | 110 | 8.5 |
| MAG13-610x915x78-10/22-58 | G158007M | HG13ARM2GG | 610x915x78 | H13 | 58 | 15.5 | 900 | 110 | 10 |
| MAG13-610x1220x78-10/22-58 | G158008M | HG13ARM2GG | 610x1220x78 | H13 | 58 | 21 | 1200 | 110 | 12.5 |
| MAG14-305x305x78-10/22-58 | G158009M | HG14ARM2GG | 305x305x78 | H14 | 58 | 2.8 | 150 | 125 | 1.85 |
| MAG14-305x610x78-10/22-58 | G158010M | HG14ARM2GG | 305x610x78 | H14 | 58 | 5.5 | 300 | 125 | 3.5 |
| MAG14-457x457x78-10/22-58 | G158011M | HG14ARM2GG | 457x457x78 | H14 | 58 | 6 | 350 | 125 | 4.25 |
| MAG14-457x610x78-10/22-58 | G158012M | HG14ARM2GG | 457x610x78 | H14 | 58 | 8 | 450 | 125 | 6.5 |
| MAG14-610x610x78-10/22-58 | G158013M | HG14ARM2GG | 610x610x78 | H14 | 58 | 10.5 | 600 | 125 | 6.8 |
| MAG14-610x762x78-10/22-58 | G158014M | HG14ARM2GG | 610x762x78 | H14 | 58 | 13 | 750 | 125 | 8.5 |
| MAG14-610x915x78-10/22-58 | G158015M | HG14ARM2GG | 610x915x78 | H14 | 58 | 15.5 | 900 | 125 | 10 |
| MAG14-610x1220x78-10/22-58 | G158016M | HG14ARM2GG | 610x1220x78 | H14 | 58 | 21 | 1200 | 125 | 12.5 |
| MAG15-305x305x78-10/22-58 | G158017M | HG15ARM2GG | 305x305x78 | U15 | 58 | 2.8 | 150 | 140 | 1.85 |
| MAG15-305x610x78-10/22-58 | G158018M | HG15ARM2GG | 305x610x78 | U15 | 58 | 5.5 | 300 | 140 | 3.5 |
| MAG15-457x457x78-10/22-58 | G158019M | HG15ARM2GG | 457x457x78 | U15 | 58 | 6 | 350 | 140 | 4.25 |
| MAG15-457x610x78-10/22-58 | G158020M | HG15ARM2GG | 457x610x78 | U15 | 58 | 8 | 450 | 140 | 6.5 |
| MAG15-610x610x78-10/22-58 | G158021M | HG15ARM2GG | 610x610x78 | U15 | 58 | 10.5 | 600 | 140 | 6.8 |
| MAG15-610x762x78-10/22-58 | G158022M | HG15ARM2GG | 610x762x78 | U15 | 58 | 13 | 750 | 140 | 8.5 |
| MAG15-610x915x78-10/22-58 | G158023M | HG15ARM2GG | 610x915x78 | U15 | 58 | 15.5 | 900 | 140 | 10 |
| MAG15-610x1220x78-10/22-58 | G158024M | HG15ARM2GG | 610x1220x78 | U15 | 58 | 21 | 1200 | 140 | 12.5 |
