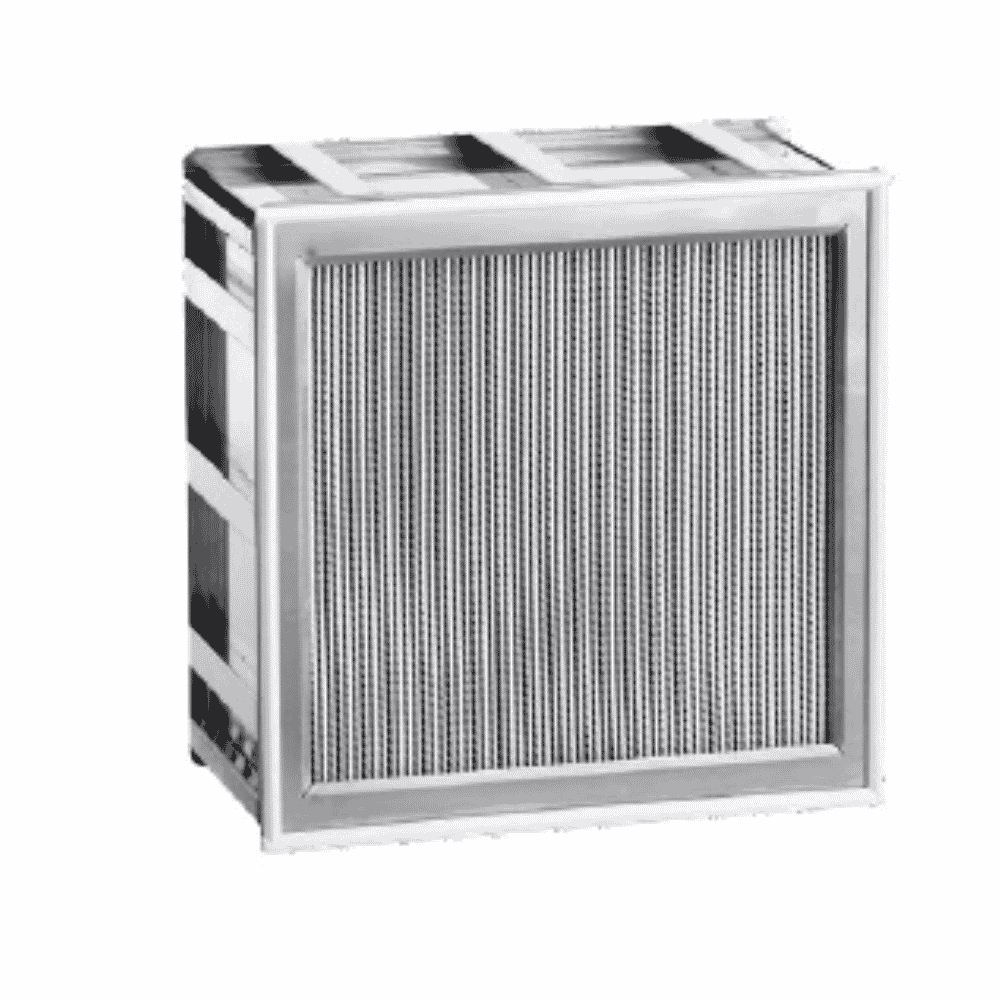

High-temperature HEPA filter rated to 350°C, Support Flange type, emission rate < ISO 5, leak-free after at least 200 cycles, fast heat-up, ProSafe certified.
• Emission rate < ISO 5, stable even in high-temperature tunnel zones.
• Leak-free even after at least 200 cycles.
• Fast heat-up, tested at +5°C per minute.
• No cleaning required, ready to use after installation, smoke-free.
• Compliant components: reinforced frame, ProSafe label.
• Energy-efficient, standard cleanroom packaging, each filter individually tested per EN 1822.
| Model | Code | MGT Code | Dimensions W x L x D (mm) | Filter class EN 1822 | Filter media area (m2) | Airflow (m3/h) | Initial pressure drop (Pa) |
| HT350-Pro-H13-305x305x292-01/00 | 959401M | HTH3TH3S0KC | 305x305x292 | H13 | 6,5 | 430 | 250 |
| HT350-Pro-H13-305x610x292-01/00 | 959402M | HTH3TH3S0KC | 305x610x292 | H13 | 13,7 | 900 | 250 |
| HT350-Pro-H13-457x457x292-01/00 | 959403M | HTH3TH3S0KC | 457x457x292 | H13 | 15,8 | 1030 | 250 |
| HT350-Pro-H13-457x610x292-01/00 | 959404M | HTH3TH3S0KC | 457x610x292 | H13 | 21,0 | 1420 | 250 |
| HT350-Pro-H13-457x762x292-01/00 | 959405M | HTH3TH3S0KC | 457x762x292 | H13 | 26,2 | 1810 | 250 |
| HT350-Pro-H13-610x610x292-01/00 | 959406M | HTH3TH3S0KC | 610x610x292 | H13 | 28,0 | 1960 | 250 |
| HT350-Pro-H13-610x762x292-01/00 | 959407M | HTH3TH3S0KC | 610x762x292 | H13 | 35,0 | 2480 | 250 |
| HT350-Pro-H13-610x915x292-01/00 | 959408M | HTH3TH3S0KC | 610x915x292 | H13 | 42,0 | 2980 | 250 |
| HT350-Pro-H13-305x305x150-01/00 | 959409M | HTH3TH3S0KC | 305x305x150 | H13 | 3,5 | 250 | 250 |
| HT350-Pro-H13-305x610x150-01/00 | 959410M | HTH3TH3S0KC | 305x610x150 | H13 | 7,0 | 540 | 250 |
| HT350-Pro-H13-457x457x150-01/00 | 959411M | HTH3TH3S0KC | 457x457x150 | H13 | 7,8 | 610 | 250 |
| HT350-Pro-H13-457x610x150-01/00 | 959412M | HTH3TH3S0KC | 457x610x150 | H13 | 10,5 | 860 | 250 |
| HT350-Pro-H13-457x762x150-01/00 | 959413M | HTH3TH3S0KC | 457x762x150 | H13 | 13,1 | 1100 | 250 |
| HT350-Pro-H13-610x610x150-01/00 | 959414M | HTH3TH3S0KC | 610x610x150 | H13 | 14,0 | 1180 | 250 |
| HT350-Pro-H13-610x762x150-01/00 | 959415M | HTH3TH3S0KC | 610x762x150 | H13 | 17,5 | 1510 | 250 |
| HT350-Pro-H13-610x915x150-01/00 | 959416M | HTH3TH3S0KC | 610x915x150 | H13 | 21,0 | 1830 | 250 |
| Model | Code | MGT Code | Dimensions W x L x D (mm) | Filter class EN 1822 | Filter media area (m2) | Airflow (m3/h) | Initial pressure drop (Pa) |
| HT350-Pro-H14-305x305x292-01/00 | 959421M | HTH4TH3S0KC | 305x305x292 | H14 | 6,5 | 430 | 290 |
| HT350-Pro-H14-305x610x292-01/00 | 959422M | HTH4TH3S0KC | 305x610x292 | H14 | 13,7 | 900 | 290 |
| HT350-Pro-H14-457x457x292-01/00 | 959423M | HTH4TH3S0KC | 457x457x292 | H14 | 15,8 | 1030 | 290 |
| HT350-Pro-H14-457x610x292-01/00 | 959424M | HTH4TH3S0KC | 457x610x292 | H14 | 21,0 | 1420 | 290 |
| HT350-Pro-H14-457x762x292-01/00 | 959425M | HTH4TH3S0KC | 457x762x292 | H14 | 26,2 | 1810 | 290 |
| HT350-Pro-H14-610x610x292-01/00 | 959426M | HTH4TH3S0KC | 610x610x292 | H14 | 28,0 | 1960 | 290 |
| HT350-Pro-H14-610x762x292-01/00 | 959427M | HTH4TH3S0KC | 610x762x292 | H14 | 35,0 | 2480 | 290 |
| HT350-Pro-H14-610x915x292-01/00 | 959428M | HTH4TH3S0KC | 610x915x292 | H14 | 42,0 | 2980 | 290 |
| HT350-Pro-H14-305x305x150-01/00 | 959429M | HTH4TH3S0KC | 305x305x150 | H14 | 3,5 | 250 | 290 |
| HT350-Pro-H14-305x610x150-01/00 | 959430M | HTH4TH3S0KC | 305x610x150 | H14 | 7,0 | 540 | 290 |
| HT350-Pro-H14-457x457x150-01/00 | 959431M | HTH4TH3S0KC | 457x457x150 | H14 | 7,8 | 610 | 290 |
| HT350-Pro-H14-457x610x150-01/00 | 959432M | HTH4TH3S0KC | 457x610x150 | H14 | 10,5 | 860 | 290 |
| HT350-Pro-H14-457x762x150-01/00 | 959433M | HTH4TH3S0KC | 457x762x150 | H14 | 13,1 | 1100 | 290 |
| HT350-Pro-H14-610x610x150-01/00 | 959434M | HTH4TH3S0KC | 610x610x150 | H14 | 14,0 | 1180 | 290 |
| HT350-Pro-H14-610x762x150-01/00 | 959435M | HTH4TH3S0KC | 610x762x150 | H14 | 17,5 | 1510 | 290 |
| HT350-Pro-H14-610x915x150-01/00 | 959436M | HTH4TH3S0KC | 610x915x150 | H14 | 21,0 | 1830 | 290 |
