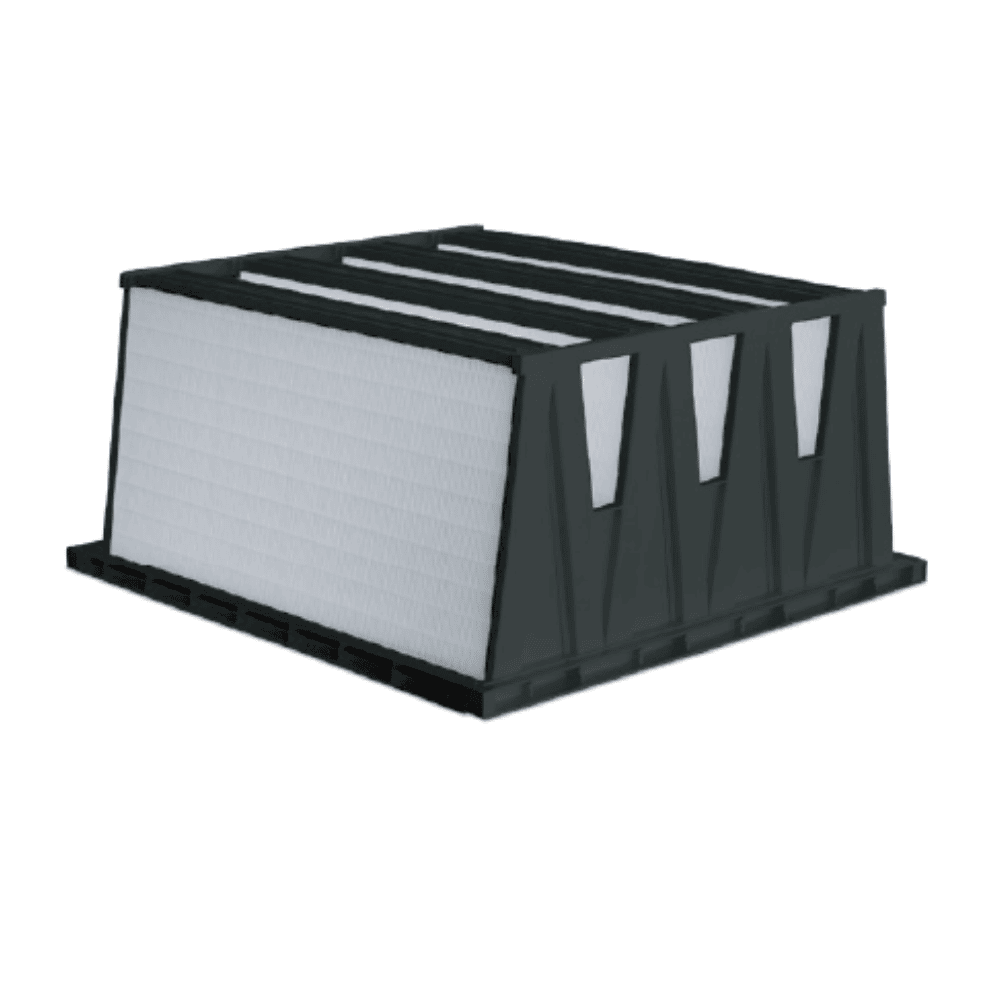

AF4V-292-PG

In Stock

Rigid V-bank filter (4V Rigid Bank), V-shaped design increases surface area, delivers high airflow, low initial pressure drop, and long service life.

Category: Fine Filtration Tag: Air Filtech SKU: AF4V-292-PG-EN

Description

APPLICATION

• Used for high-efficiency air filtration systems.
• Compact size, high airflow.
• Rigid construction delivers excellent filtration performance.
• V-shaped design increases surface area, delivers high airflow, and low initial pressure drop.
• Long service life.

Technical Specifications

Rigid V-bank filter

Frame: Plastic
Filter media: Fiberglass
Type block: 4V Rigid Bank
Color: Black
Frame depth: 25mm
Maximum temperature: 80oC
Relative humidity: 100%
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

Hygiene certification: Filter Rigid V Bank | VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: Filter Rigid V Bank | (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245 U.S. FDA CFR 21 Part 175-189 & FDA CPG 7117.05, 06, 07.

Other options available upon request

Color: White, Black.
Filter media: Fiberglass high-temperature (Maximum maximum 120oC).
Frame depth HF: 25mm, 20mm, Construction compound 25 & 20mm.
Gasket type: None gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Filter media area m2	Airflow m3/h	Initial pressure drop Pa	Weight kg
AF4V-M6-287x592x292-PG-9	240051M	MF06P4S25AR09XX	287x592x292	ePM10>60%	M6	9.00	1650	70	4.50
AF4V-M6-490x592x292-PG-15	240052M	MF06P4S25AR15XX	490x592x292	ePM10>60%	M6	15.00	2700	70	6.00
AF4V-M6-592x592x292-PG-18	240053M	MF06P4S25AR18XX	592x592x292	ePM10>60%	M6	18.00	3400	70	7.00
AF4V-F7-287x592x292-PG-9	240061M	MF07P4S25AR09XX	287x592x292	ePM1>50%	F7	9.00	1650	80	4.50
AF4V-F7-490x592x292-PG-15	240062M	MF07P4S25AR15XX	490x592x292	ePM1>50%	F7	15.00	2700	80	6.00
AF4V-F7-592x592x292-PG-18	240063M	MF07P4S25AR18XX	592x592x292	ePM1>50%	F7	18.00	3400	80	7.00
AF4V-F8-287x592x292-PG-9	240071M	MF08P4S25AR09XX	287x592x292	ePM1>65%	F8	9.00	1650	90	4.50
AF4V-F8-490x592x292-PG-15	240072M	MF08P4S25AR15XX	490x592x292	ePM1>65%	F8	15.00	2700	90	6.00
AF4V-F8-592x592x292-PG-18	240073M	MF08P4S25AR18XX	592x592x292	ePM1>65%	F8	18.00	3400	90	7.00
AF4V-F9-287x592x292-PG-9	240081M	MF09P4S25AR09XX	287x592x292	ePM1>80%	F9	9.00	1650	110	4.50
AF4V-F9-490x592x292-PG-15	240082M	MF09P4S25AR15XX	490x592x292	ePM1>80%	F9	15.00	2700	110	6.00
AF4V-F9-592x592x292-PG-18	240083M	MF09P4S25AR18XX	592x592x292	ePM1>80%	F9	18.00	3400	110	7.00
AF4V-M6-287x592x292-PG-7	240084M	MF06P4S25AR07XX	287x592x292	ePM10>60%	M6	7.00	1650	70	4.00
AF4V-M6-490x592x292-PG-12	240085M	MF06P4S25AR12XX	490x592x292	ePM10>60%	M6	12.00	2700	70	6.00
AF4V-M6-592x592x292-PG-15	240086M	MF06P4S25AR15XX	592x592x292	ePM10>60%	M6	15.00	3400	70	7.00
AF4V-F7-287x592x292-PG-7	240087M	MF07P4S25AR07XX	287x592x292	ePM1>50%	F7	7.00	1650	80	4.00
AF4V-F7-490x592x292-PG-12	240088M	MF07P4S25AR12XX	490x592x292	ePM1>50%	F7	12.00	2700	80	6.00
AF4V-F7-592x592x292-PG-15	240089M	MF07P4S25AR15XX	592x592x292	ePM1>50%	F7	15.00	3400	80	7.00
AF4V-F8-287x592x292-PG-7	240090M	MF08P4S25AR07XX	287x592x292	ePM1>65%	F8	7.00	1650	90	4.00
AF4V-F8-490x592x292-PG-12	240091M	MF08P4S25AR12XX	490x592x292	ePM1>65%	F8	12.00	2700	90	6.00
AF4V-F8-592x592x292-PG-15	240092M	MF08P4S25AR15XX	592x592x292	ePM1>65%	F8	15.00	3400	90	7.00
AF4V-F9-287x592x292-PG-7	240093M	MF09P4S25AR07XX	287x592x292	ePM1>80%	F9	7.00	1650	110	4.00
AF4V-F9-490x592x292-PG-12	240094M	MF09P4S25AR12XX	490x592x292	ePM1>80%	F9	12.00	2700	110	6.00
AF4V-F9-592x592x292-PG-15	240095M	MF09P4S25AR15XX	592x592x292	ePM1>80%	F9	15.00	3400	110	7.00
