AF4V-420-PS

Name: AF4V-420-PS - Airfiltech
SKU: AF4V-420-PS-EN

In Stock

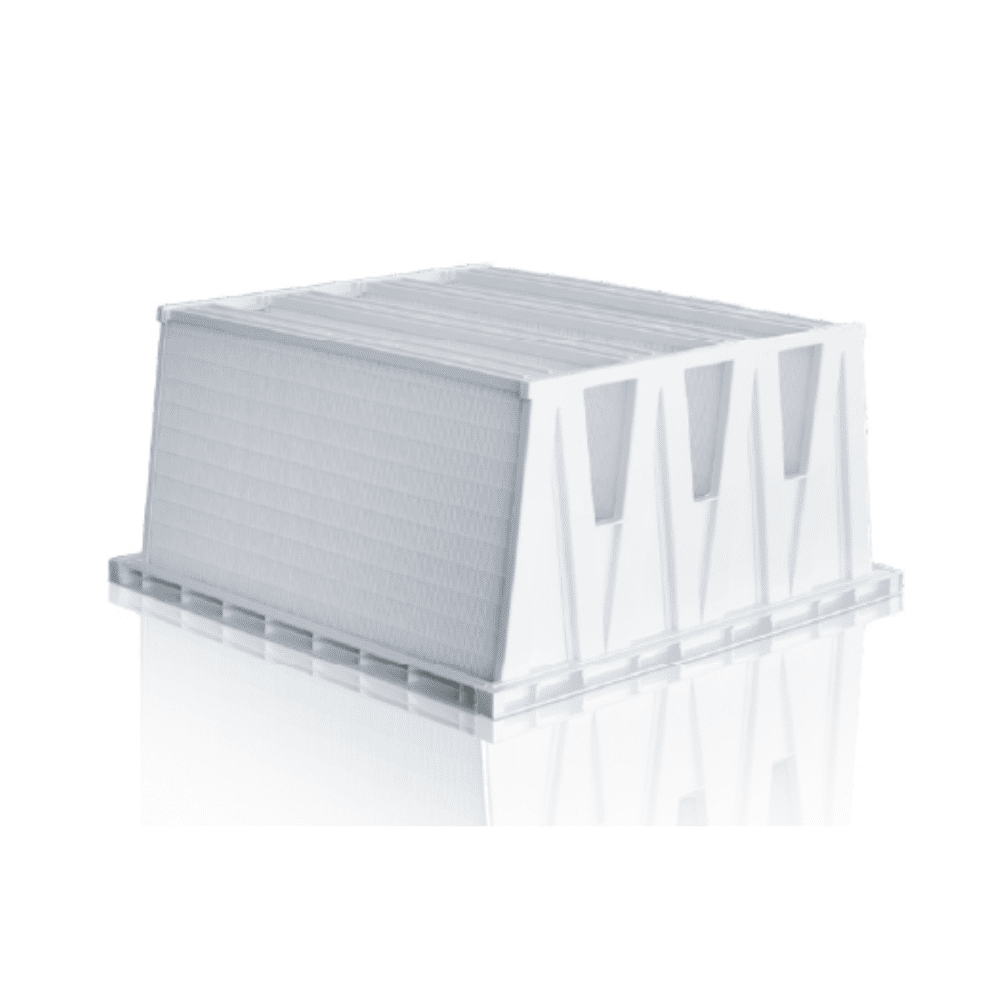

Rigid V-bank filter, deep V-shaped design (420mm) increases surface area for high airflow; specially designed for gas turbines and air compressors.

Download Catalogue

Category: Fine Filtration Tag: Air Filtech SKU: AF4V-420-PS-EN

Description

APPLICATION

• High-efficiency air filtration.
• Compact filter with high airflow.
• Specially designed for gas turbines and air compressors.
• Deep V-shaped design increases surface area, delivering high airflow.
• Lower initial pressure drop compared to standard rigid bag filters.
• Long operating service life.

Technical Specifications

Specification

Rigid V-bank filter
Frame: Plastic
Filter media: Synthetic fiber
Configuration: 4V Rigid Bank
Color: White
Frame depth: 25mm
Filtration stage: II-III
Maximum temperature: 80oC
Relative humidity: 100%
Final pressure drop:
EN 779:2012: 450 Pa.
ISO 16890: 300 Pa.
Fire classification: K1/F1 according to standard DIN53438

Certification

Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Color: White, Black.
Frame depth: 20mm.
Filter media: High-temperature type (maximum 120°C).
Gasket type: No gasket, Polyurethane, Rubber, EPDM, High-temperature gasket.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Filter media area m2	Airflow m3/h	Initial pressure drop Pa.	Weight kg
AF4V-M6-287x592x420-PS-16	247001M	MF6P4B25AS16XX	287x592x420	ePM10>60%	M6	16	1650	55	5.00
AF4V-M6-490x592x420-PS-24	247002M	MF6P4B25AS24XX	490x592x420	ePM10>60%	M6	24	2700	55	8.50
AF4V-M6-592x592x420-PS-32	247003M	MF6P4B25AS32XX	592x592x420	ePM10>60%	M6	32	3400	55	9.00
AF4V-F7-287x592x420-PS-16	247004M	MF7P4B25AS16XX	287x592x420	ePM1>50%	F7	16	1650	65	5.00
AF4V-F7-490x592x420-PS-24	247005M	MF7P4B25AS24XX	490x592x420	ePM1>50%	F7	24	2700	65	8.50
AF4V-F7-592x592x420-PS-32	247006M	MF7P4B25AS32XX	592x592x420	ePM1>50%	F7	32	3400	65	9.00
AF4V-F8-287x592x420-PS-16	247007M	MF8P4B25AS16XX	287x592x420	ePM1>65%	F8	16	1650	75	5.00
AF4V-F8-490x592x420-PS-24	247008M	MF8P4B25AS24XX	490x592x420	ePM1>65%	F8	24	2700	75	8.50
AF4V-F8-592x592x420-PS-32	247009M	MF8P4B25AS32XX	592x592x420	ePM1>65%	F8	32	3400	75	9.00
AF4V-F9-287x592x420-PS-16	247010M	MF9P4B25AS16XX	287x592x420	ePM1>80%	F9	16	1650	85	5.00
AF4V-F9-490x592x420-PS-24	247011M	MF9P4B25AS24XX	490x592x420	ePM1>80%	F9	24	2700	85	8.50
AF4V-F9-592x592x420-PS-32	247012M	MF9P4B25AS32XX	592x592x420	ePM1>80%	F9	32	3400	85	9.00
