Description
APPLICATION
• High-efficiency air filtration.
• Compact filter size with high airflow capacity.
• Specifically designed for gas turbines and air compressors.
• Protective wire mesh on the air outlet face and sealing gasket.

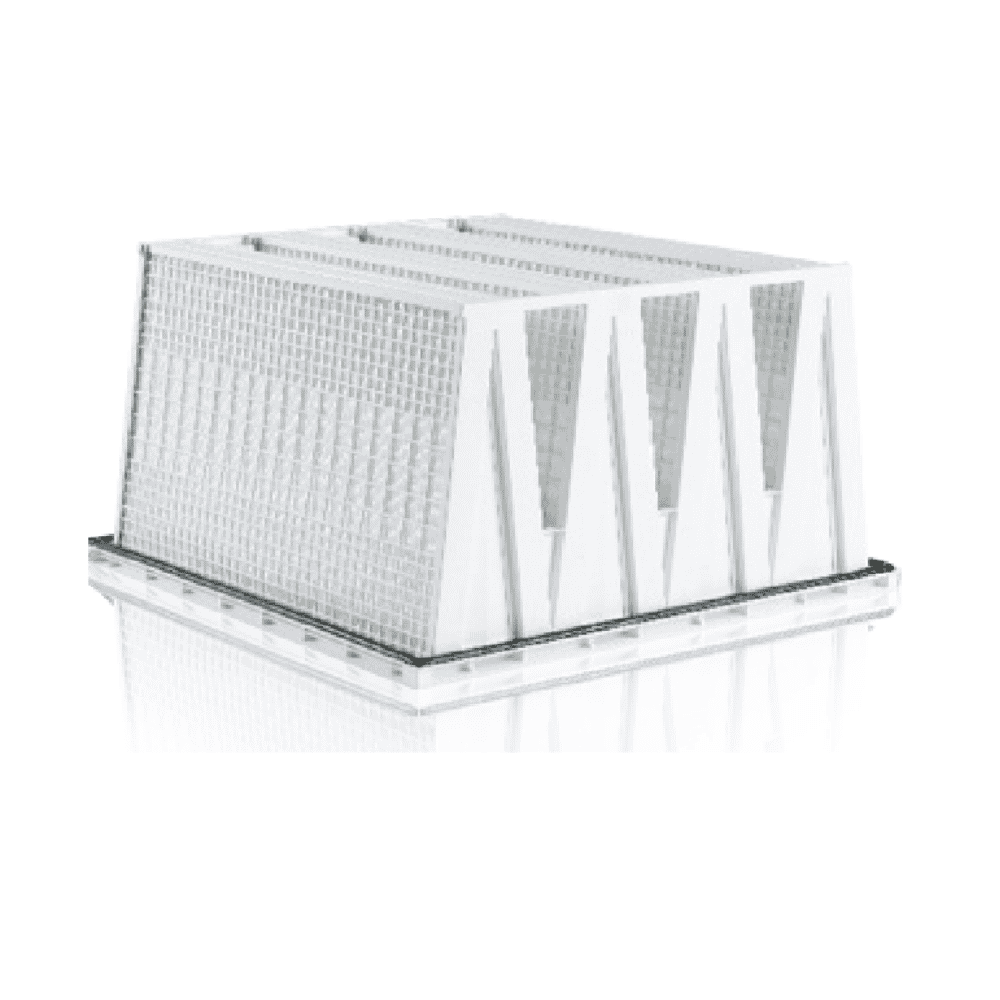

AGT4V-292-PG
Rigid V-bank filter specifically designed for gas turbines, high-efficiency air filtration, compact size, high airflow capacity; equipped with protective wire mesh on the air outlet face and sealing gasket.
Description
Technical Specifications
Technical Specifications
- Specification
- Rigid V-bank filter – Tuabin air
- Frame: Plastic
- Filter media: Fiberglass
- Configuration: 4V Rigid Bank
- Color: White
- Frame depth: 25mm
- Type Gasket: Polyurethane
- Filtration stage: II-III
- Position position Gasket: Air outlet side
- Maximum temperature: 80oC
- Relative humidity: 100%
- Final pressure drop:
- EN 779:2012: 450 Pa.
- ISO 16890: 300 Pa.
- Fire classification: K1/F1 according to standard DIN53438
- Certification
- Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
- Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.
- Other options available upon request
- Color: White, Black.
- Frame depth: 25mm, 20mm, 25mm & 20mm.
- Filter media: High-temperature type (maximum 120°C).
- Gasket type: No gasket, Polyurethane, Rubber, EPDM, High-temperature gasket.
- Gasket position: None, Air outlet side, Air inlet side, Both sides.
Specification Table
Specification Table
| Model | Code | MGT Code | Dimensions WxLxD | Filter class ISO 16890 | Filter class EN 779:2012 | Filter media area m2 | Airflow m3/h | Initial pressure drop Pa. | Weight kg |
| AGT4V-M6-287x592x292-01/00-PG-11 | AGT246001M | MT6P4B25AR11PC | 287x592x292 | ePM10>60% | M6 | 11 | 2125 | 95 | 4.50 |
| AGT4V-M6-490x592x292-01/00-PG-18 | AGT246002M | MT6P4B25AR18PC | 490x592x292 | ePM10>60% | M6 | 18 | 3500 | 95 | 7.00 |
| AGT4V-M6-592x592x292-01/00-PG-21 | AGT246003M | MT6P4B25AR21PC | 592x592x292 | ePM10>60% | M6 | 21 | 4250 | 95 | 8.00 |
| AGT4V-F7-287x592x292-01/00-PG-11 | AGT246004M | MT7P4B25AR11PC | 287x592x292 | ePM1>50% | F7 | 11 | 2125 | 110 | 4.50 |
| AGT4V-F7-490x592x292-01/00-PG-18 | AGT246005M | MT7P4B25AR18PC | 490x592x292 | ePM1>50% | F7 | 18 | 3500 | 110 | 7.00 |
| AGT4V-F7-592x592x292-01/00-PG-21 | AGT246006M | MT7P4B25AR21PC | 592x592x292 | ePM1>50% | F7 | 21 | 4250 | 110 | 8.00 |
| AGT4V-F8-287x592x292-01/00-PG-11 | AGT246007M | MT8P4B25AR11PC | 287x592x292 | ePM1>65% | F8 | 11 | 2125 | 125 | 4.50 |
| AGT4V-F8-490x592x292-01/00-PG-18 | AGT246008M | MT8P4B25AR18PC | 490x592x292 | ePM1>65% | F8 | 18 | 3500 | 125 | 7.00 |
| AGT4V-F8-592x592x292-01/00-PG-21 | AGT246009M | MT8P4B25AR21PC | 592x592x292 | ePM1>65% | F8 | 21 | 4250 | 125 | 8.00 |
| AGT4V-F9-287x592x292-01/00-PG-11 | AGT246010M | MT9P4B25AR11PC | 287x592x292 | ePM1>80% | F9 | 11 | 2125 | 140 | 4.50 |
| AGT4V-F9-490x592x292-01/00-PG-18 | AGT246011M | MT9P4B25AR18PC | 490x592x292 | ePM1>80% | F9 | 18 | 3500 | 140 | 7.00 |
| AGT4V-F9-592x592x292-01/00-PG-21 | AGT246012M | MT9P4B25AR21PC | 592x592x292 | ePM1>80% | F9 | 21 | 4250 | 140 | 8.00 |
