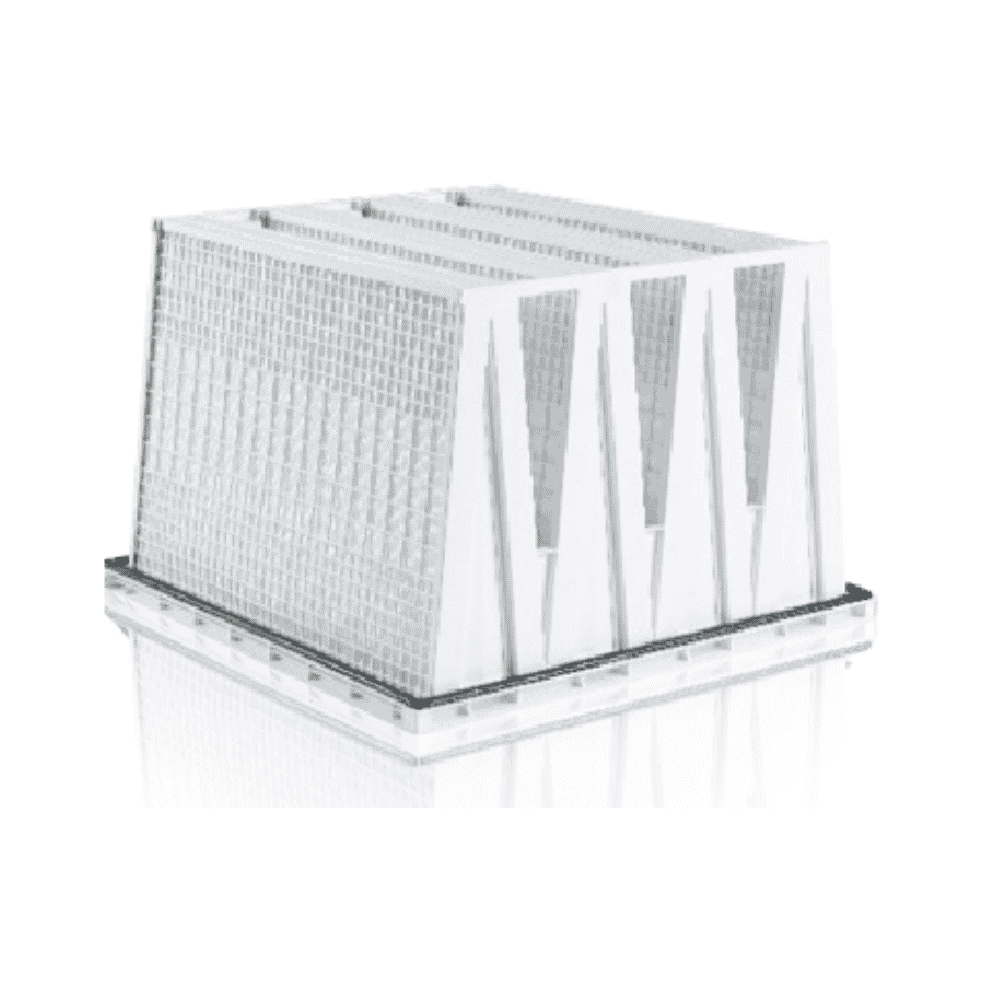

AGT4V-420-PS

Name: AGT4V-420-PS - Airfiltech
SKU: AGT4V-420-PS-EN

In Stock

Rigid V-bank filter with a deep V design (420mm) that increases media surface area, delivers high airflow, and provides lower initial pressure drop than standard rigid bag filters; designed specifically for gas turbines.

Download Catalogue

Categories: Fine Filtration, Gas Turbine Filters, Second Filter Tag: Air Filtech SKU: AGT4V-420-PS-EN

Description

APPLICATION

• High-efficiency air filtration.
• Compact filter size with high airflow capacity.
• Specifically designed for gas turbines and air compressors.
• Deep V design increases media surface area and delivers high airflow.
• Lower initial pressure drop compared to standard rigid bag filters.
• Protective wire mesh on the air outlet face and sealing gasket.

Technical Specifications

Specification

Rigid V-bank filter – Tuabin air
Frame: Plastic
Filter media: Synthetic fiber
Configuration: 4V Rigid Bank
Color: White
Frame depth: 25mm
Type Gasket: Polyurethane
Filtration stage: II-III
Position position Gasket: Air outlet side
Maximum temperature: 80oC
Relative humidity: 100%
Final pressure drop:
EN 779:2012: 450 Pa.
ISO 16890: 300 Pa.
Fire classification: K1/F1 according to standard DIN53438

Certification

Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Color: White, Black.
Frame depth: 25mm, 20mm, 25mm & 20mm.
Gasket type: No gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Filter media area m2	Airflow m3/h	Initial pressure drop Pa.	Weight kg
AGT4V-M6-287x592x420-01/00-PS-16	AGT247001M	MT6P4B25AS16PC	287x592x420	ePM10>60%	M6	16	2125	60	5.00
AGT4V-M6-490x592x420-01/00-PS-24	AGT247002M	MT6P4B25AS24PC	490x592x420	ePM10>60%	M6	24	3500	60	8.50
AGT4V-M6-592x592x420-01/00-PS-32	AGT247003M	MT6P4B25AS32PC	592x592x420	ePM10>60%	M6	32	4250	60	9.00
AGT4V-F7-287x592x420-01/00-PS-16	AGT247004M	MT7P4B25AS16PC	287x592x420	ePM1>50%	F7	16	2125	70	5.00
AGT4V-F7-490x592x420-01/00-PS-24	AGT247005M	MT7P4B25AS24PC	490x592x420	ePM1>50%	F7	24	3500	70	8.50
AGT4V-F7-592x592x420-01/00-PS-32	AGT247006M	MT7P4B25AS32PC	592x592x420	ePM1>50%	F7	32	4250	70	9.00
AGT4V-F8-287x592x420-01/00-PS-16	AGT247007M	MT8P4B25AS16PC	287x592x420	ePM1>65%	F8	16	2125	85	5.00
AGT4V-F8-490x592x420-01/00-PS-24	AGT247008M	MT8P4B25AS24PC	490x592x420	ePM1>65%	F8	24	3500	85	8.50
AGT4V-F8-592x592x420-01/00-PS-32	AGT247009M	MT8P4B25AS32PC	592x592x420	ePM1>65%	F8	32	4250	85	9.00
AGT4V-F9-287x592x420-01/00-PS-16	AGT247010M	MT9P4B25AS16PC	287x592x420	ePM1>80%	F9	16	2125	100	5.00
AGT4V-F9-490x592x420-01/00-PS-24	AGT247011M	MT9P4B25AS24PC	490x592x420	ePM1>80%	F9	24	3500	100	8.50
AGT4V-F9-592x592x420-01/00-PS-32	AGT247012M	MT9P4B25AS32PC	592x592x420	ePM1>80%	F9	32	4250	100	9.00
