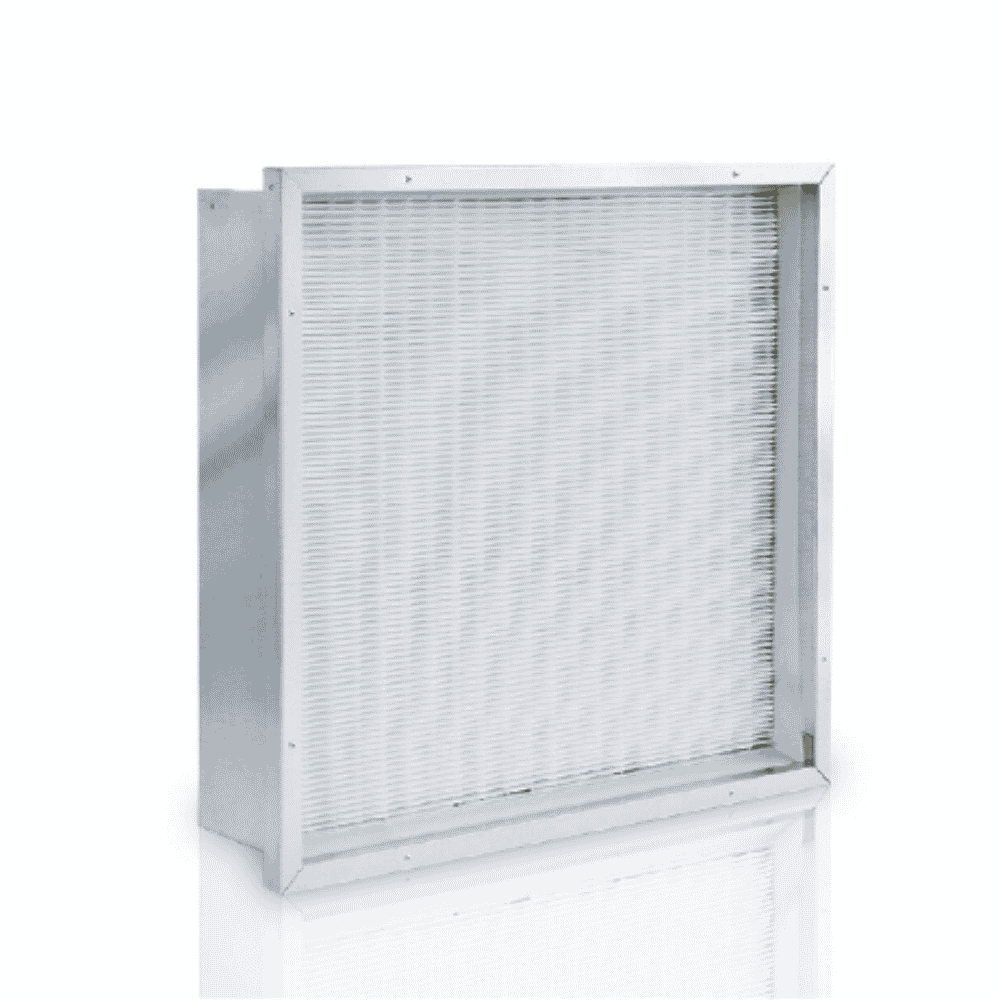

Name: AirHF-GG - Airfiltech
SKU: AirHF-GG-EN

Description

APPLICATION

• Used for high-efficiency air filtration systems.
• Compact size, high airflow.
• Rigid construction delivers excellent filtration performance.
• Protective wire mesh and sealing gasket available on request.

Technical Specifications

Unit filter Compact pleats smaller with Header Frame

Frame: Galvanized steel
Filter media: Fiberglass
Frame depth: simplify (25mm)
Protective mesh surface: grille air out
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779-2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Frame: Aluminum, SS304, SS316. Filter media: Synthetic fiber, High-temperature type. Pleat depth: 48 – 58 – 75 – 100 – 125mm.
Type khung HF: None, simplify 20/25mm, double 20/25mm, Dimensions upon request.
Protective mesh: None, both two grille.
Gasket type: None, Polyurethane, Rubber, EPDM. Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779-2012	Panel Depth mm	Filter media area m2	Airflow m3/h	Initial pressure drop Pa
AirHF-M6-287x592x150-GG-100	212001M	MC6GRLT1XX	287x592x150	ePM10>60%	M6	100	6.00	1700	100
AirHF-M6-492x592x150-GG-100	212002M	MC6GRLT1XX	492x592x150	ePM10>60%	M6	100	12.00	2800	100
AirHF-M6-592x592x150-GG-100	212003M	MC6GRLT1XX	592x592x150	ePM10>60%	M6	100	14.00	3400	100
AirHF-F7-287x592x150-GG-100	212004M	MC7GRLT1XX	287x592x150	ePM1>50%	F7	100	6.00	1700	130
AirHF-F7-490x592x150-GG-100	212005M	MC7GRLT1XX	490x592x150	ePM1>50%	F7	100	12.00	2800	130
AirHF-F7-592x592x150-GG-100	212006M	MC7GRLT1XX	592x592x150	ePM1>50%	F7	100	14.00	3400	130
AirHF-F8-287x592x150-GG-100	212007M	MC8GRLT1XX	287x592x150	ePM1>65%	F8	100	6.00	1700	150
AirHF-F8-490x592x150-GG-100	212008M	MC8GRLT1XX	490x592x150	ePM1>65%	F8	100	12.00	2800	150
AirHF-F8-592x592x150-GG-100	212009M	MC8GRLT1XX	592x592x150	ePM1>65%	F8	100	14.00	3400	150
AirHF-F9-287x592x150-GG-100	212010M	MC9GRLT1XX	287x592x150	ePM1>80%	F9	100	6.00	1700	170
AirHF-F9-490x592x150-GG-100	212011M	MC9GRLT1XX	490x592x150	ePM1>80%	F9	100	12.00	2800	170
AirHF-F9-592x592x150-GG-100	212012M	MC9GRLT1XX	592x592x150	ePM1>80%	F9	100	14.00	3400	170
AirHF-M6-287x592x150-GG-58	212013M	MC6GRMT1XX	287x592x150	ePM10>60%	M6	58	3.20	1125	60
AirHF-M6-492x592x150-GG-58	212014M	MC6GRMT1XX	492x592x150	ePM10>60%	M6	58	5.20	1800	60
AirHF-M6-592x592x150-GG-58	212015M	MC6GRMT1XX	592x592x150	ePM10>60%	M6	58	6.50	2250	60
AirHF-F7-287x592x150-GG-58	212016M	MC7GRMT1XX	287x592x150	ePM1>50%	F7	58	3.20	1125	80
AirHF-F7-490x592x150-GG-58	212017M	MC7GRMT1XX	490x592x150	ePM1>50%	F7	58	5.20	1800	80
AirHF-F7-592x592x150-GG-58	212018M	MC7GRMT1XX	592x592x150	ePM1>50%	F7	58	6.50	2250	80
AirHF-F8-287x592x150-GG-58	212019M	MC8GRMT1XX	287x592x150	ePM1>65%	F8	58	3.20	1125	110
AirHF-F8-490x592x150-GG-58	212020M	MC8GRMT1XX	490x592x150	ePM1>65%	F8	58	5.20	1800	110
AirHF-F8-592x592x150-GG-58	212021M	MC8GRMT1XX	592x592x150	ePM1>65%	F8	58	6.50	2250	110
AirHF-F9-287x592x150-GG-58	212022M	MC9GRMT1XX	287x592x150	ePM1>80%	F9	58	3.20	1125	150
AirHF-F9-490x592x150-GG-58	212023M	MC9GRMT1XX	490x592x150	ePM1>80%	F9	58	5.20	1800	150
AirHF-F9-592x592x150-GG-58	212024M	MC9GRMT1XX	592x592x150	ePM1>80%	F9	58	6.50	2250	150
