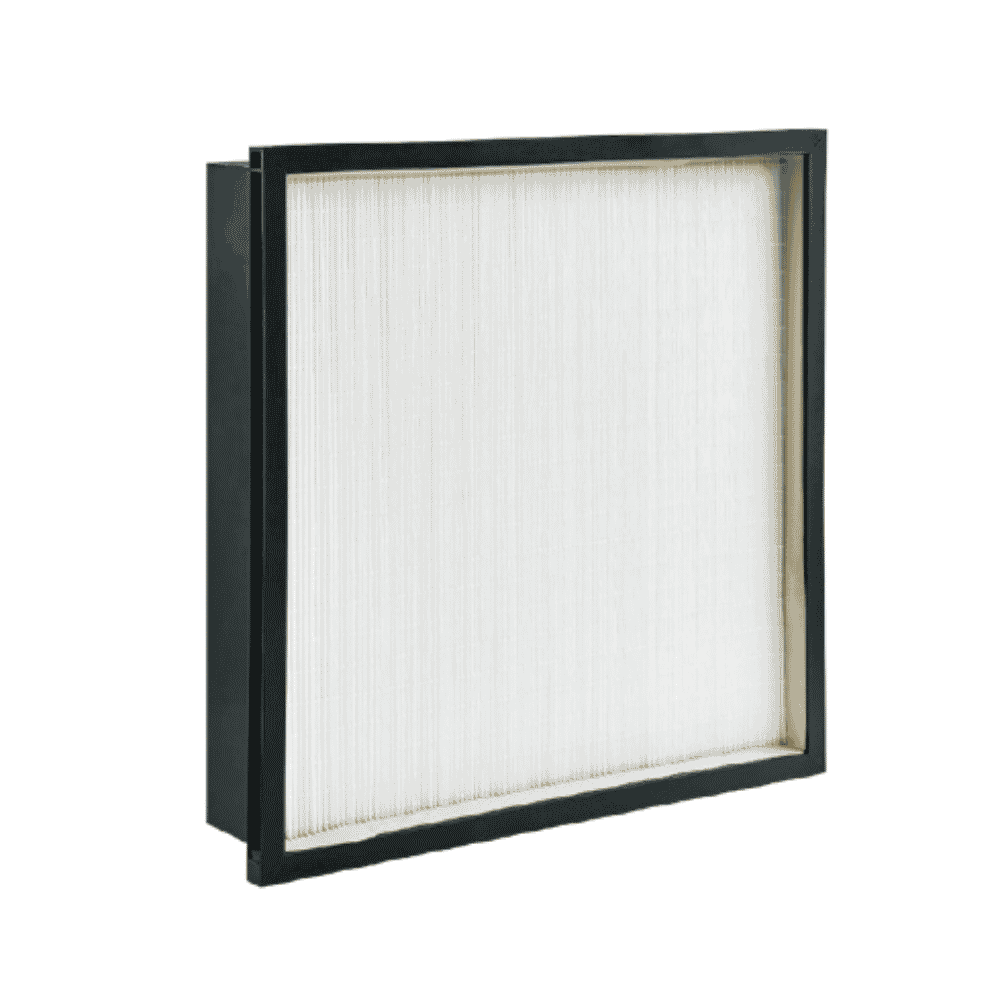

Name: AirHF-PG - Airfiltech
SKU: AirHF-PG-EN

Description

APPLICATION

• Used for high-efficiency air filtration systems.
• Compact size, high airflow.
• Rigid construction delivers excellent filtration performance.
• Protective wire mesh and sealing gasket available on request.

Technical Specifications

Unit filter Compact pleats smaller with Header Frame

Frame: Plastic
Filter media: Fiberglass
Frame depth: simplify (25mm)
Protective mesh surface: grille air out
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Filter media: Synthetic fiber. Dimension high pleats filter media: 48 – 58 – 75 – 100mm.
Type khung HF: simplify 20mm. Protective mesh surface: No mesh, grille air out, both two grille.
Gasket type: No gasket, Polyurethane, Rubber, EPDM. Gasket position: None, grille air out, grille air into, both two grille.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Panel Depth mm	Filter media area m2	Airflow m3/h	Initial pressure drop Pa
AirHF-M6-287x592x130-PG-100	212101M	MC6PRLT1XX	287x592x130	ePM10>60%	M6	100	6.00	1700	100
AirHF-M6-492x592x130-PG-100	212102M	MC6PRLT1XX	490x592x130	ePM10>60%	M6	100	12.00	2800	100
AirHF-M6-592x592x130-PG-100	212103M	MC6PRLT1XX	592x592x130	ePM10>60%	M6	100	14.00	3400	100
AirHF-F7-287x592x130-PG-100	212104M	MC7PRLT1XX	287x592x130	ePM1>50%	F7	100	6.00	1700	130
AirHF-F7-490x592x130-PG-100	212105M	MC7PRLT1XX	490x592x130	ePM1>50%	F7	100	12.00	2800	130
AirHF-F7-592x592x130-PG-100	212106M	MC7PRLT1XX	592x592x130	ePM1>50%	F7	100	14.00	3400	130
AirHF-F8-287x592x130-PG-100	212107M	MC8PRLT1XX	287x592x130	ePM1>65%	F8	100	6.00	1700	150
AirHF-F8-490x592x130-PG-100	212108M	MC8PRLT1XX	490x592x130	ePM1>65%	F8	100	12.00	2800	150
AirHF-F8-592x592x130-PG-100	212109M	MC8PRLT1XX	592x592x130	ePM1>65%	F8	100	14.00	3400	150
AirHF-F9-287x592x130-PG-100	212110M	MC9PRLT1XX	287x592x130	ePM1>80%	F9	100	6.00	1700	170
AirHF-F9-490x592x130-PG-100	212111M	MC9PRLT1XX	490x592x130	ePM1>80%	F9	100	12.00	2800	170
AirHF-F9-592x592x130-PG-100	212112M	MC9PRLT1XX	592x592x130	ePM1>80%	F9	100	14.00	3400	170
AirHF-M6-287x592x130-PG-58	213101M	MC6PRMT1XX	287x592x130	ePM10>60%	M6	58	3.20	1125	60
AirHF-M6-490x592x130-PG-58	213102M	MC6PRMT1XX	490x592x130	ePM10>60%	M6	58	5.20	1800	60
AirHF-M6-592x592x130-PG-58	213103M	MC6PRMT1XX	592x592x130	ePM10>60%	M6	58	6.50	2250	60
AirHF-F7-287x592x130-PG-58	213104M	MC7PRMT1XX	287x592x130	ePM1>50%	F7	58	3.20	1125	80
AirHF-F7-490x592x130-PG-58	213105M	MC7PRMT1XX	490x592x130	ePM1>50%	F7	58	5.20	1800	80
AirHF-F7-592x592x130-PG-58	213106M	MC7PRMT1XX	592x592x130	ePM1>50%	F7	58	6.50	2250	80
AirHF-F8-287x592x130-PG-58	213107M	MC8PRMT1XX	287x592x130	ePM1>65%	F8	58	3.20	1125	110
AirHF-F8-490x592x130-PG-58	213108M	MC8PRMT1XX	490x592x130	ePM1>65%	F8	58	5.20	1800	110
AirHF-F8-592x592x130-PG-58	213109M	MC8PRMT1XX	592x592x130	ePM1>65%	F8	58	6.50	2250	110
AirHF-F9-287x592x130-PG-58	213110M	MC9PRMT1XX	287x592x130	ePM1>80%	F9	58	3.20	1125	150
AirHF-F9-490x592x130-PG-58	213111M	MC9PRMT1XX	490x592x130	ePM1>80%	F9	58	5.20	1800	150
AirHF-F9-592x592x130-PG-58	213112M	MC9PRMT1XX	592x592x130	ePM1>80%	F9	58	6.50	2250	150
