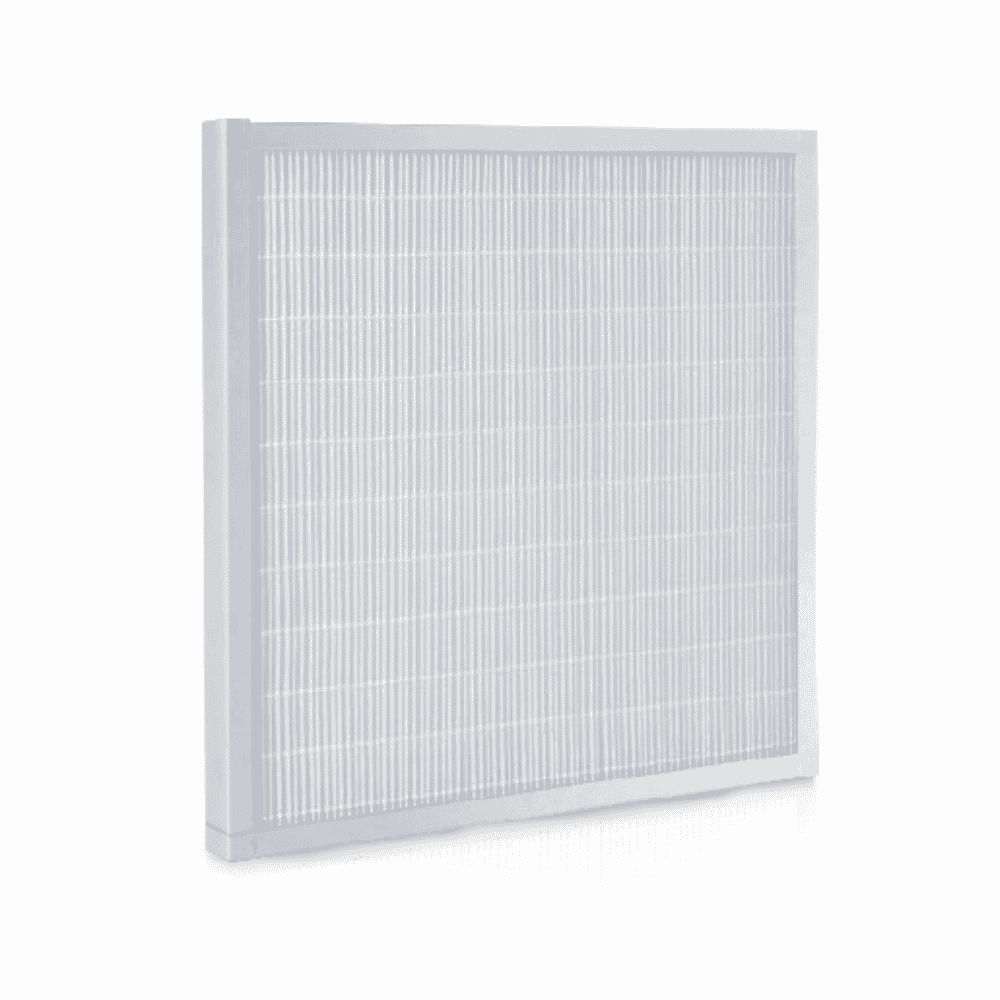

AirPan-GG

In Stock

Compact mini-pleat panel filter for high-efficiency air filtration systems; compact size, high airflow, rigid construction for excellent filtration performance.

Category: Fine Filtration Tag: Air Filtech SKU: AirPan-GG-EN

Description

APPLICATION

• Used for high-efficiency air filtration systems.
• Compact size, high airflow.
• Rigid construction delivers excellent filtration performance.
• Protective wire mesh, gasket, and any frame size/thickness available on request.

Technical Specifications

Unit filter Compact pleats smaller

Frame: Galvanized steel
Filter media: Fiberglass
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Filter media: High-temperature type, Synthetic fiber. Frame: Aluminum, Certificate hardness, SS304.
Protective mesh: No mesh, Protective mesh grille air out, both two grille.
Gasket type: No gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Panel Depth mm	Filter media area m2	Airflow m3/h	Initial pressure drop Pa
AirPan-M6-287x592x048-GG-42	273001M	MN6GRK0XX	287x592x048	ePM10>60%	M6	42	2.85	1000	80
AirPan-M6-492x592x048-GG-42	273002M	MN6GRK0XX	492x592x048	ePM10>60%	M6	42	5.00	1600	80
AirPan-M6-592x592x048-GG-42	273003M	MN6GRK0XX	592x592x048	ePM10>60%	M6	42	6.00	2000	80
AirPan-F7-287x592x048-GG-42	273004M	MN7GRK0XX	287x592x048	ePM1>50%	F7	42	2.85	1000	100
AirPan-F7-492x592x048-GG-42	273005M	MN7GRK0XX	492x592x048	ePM1>50%	F7	42	5.00	1600	100
AirPan-F7-592x592x048-GG-42	273006M	MN7GRK0XX	592x592x048	ePM1>50%	F7	42	6.00	2000	100
AirPan-F8-287x592x048-GG-42	273007M	MN8GRK0XX	287x592x048	ePM1>65%	F8	42	2.85	1000	120
AirPan-F8-492x592x048-GG-42	273008M	MN8GRK0XX	492x592x048	ePM1>65%	F8	42	5.00	1600	120
AirPan-F8-592x592x048-GG-42	273009M	MN8GRK0XX	592x592x048	ePM1>65%	F8	42	6.00	2000	120
AirPan-F9-287x592x048-GG-42	273010M	MN9GRK0XX	287x592x048	ePM1>80%	F9	42	2.85	1000	150
AirPan-F9-492x592x048-GG-42	273011M	MN9GRK0XX	492x592x048	ePM1>80%	F9	42	5.00	1600	150
AirPan-F9-592x592x048-GG-42	273012M	MN9GRK0XX	592x592x048	ePM1>80%	F9	42	6.00	2000	150
AirPan-M6-287x592x096-GG-90	274001M	MN6GRL0XX	287x592x096	ePM10>60%	M6	90	5.50	1450	80
AirPan-M6-492x592x096-GG-90	274002M	MN6GRL0XX	492x592x096	ePM10>60%	M6	90	9.00	2400	80
AirPan-M6-592x592x096-GG-90	274003M	MN6GRL0XX	592x592x096	ePM10>60%	M6	90	11.00	2900	80
AirPan-F7-287x592x096-GG-90	274004M	MN7GRL0XX	287x592x096	ePM1>50%	F7	90	5.50	1450	90
AirPan-F7-492x592x096-GG-90	274005M	MN7GRL0XX	492x592x096	ePM1>50%	F7	90	9.00	2400	90
AirPan-F7-592x592x096-GG-90	274006M	MN7GRL0XX	592x592x096	ePM1>50%	F7	90	11.00	2900	90
AirPan-F8-287x592x096-GG-90	274007M	MN8GRL0XX	287x592x096	ePM1>65%	F8	90	5.50	1450	105
AirPan-F8-492x592x096-GG-90	274008M	MN8GRL0XX	492x592x096	ePM1>65%	F8	90	9.00	2400	105
AirPan-F8-592x592x096-GG-90	274009M	MN8GRL0XX	592x592x096	ePM1>65%	F8	90	11.00	2900	105
AirPan-F9-287x592x096-GG-90	274010M	MN9GRL0XX	287x592x096	ePM1>80%	F9	90	5.50	1450	150
AirPan-F9-492x592x096-GG-90	274011M	MN9GRL0XX	492x592x096	ePM1>80%	F9	90	9.00	2400	150
AirPan-F9-592x592x096-GG-90	274012M	MN9GRL0XX	592x592x096	ePM1>80%	F9	90	11.00	2900	150
