AirPan-PG

In Stock

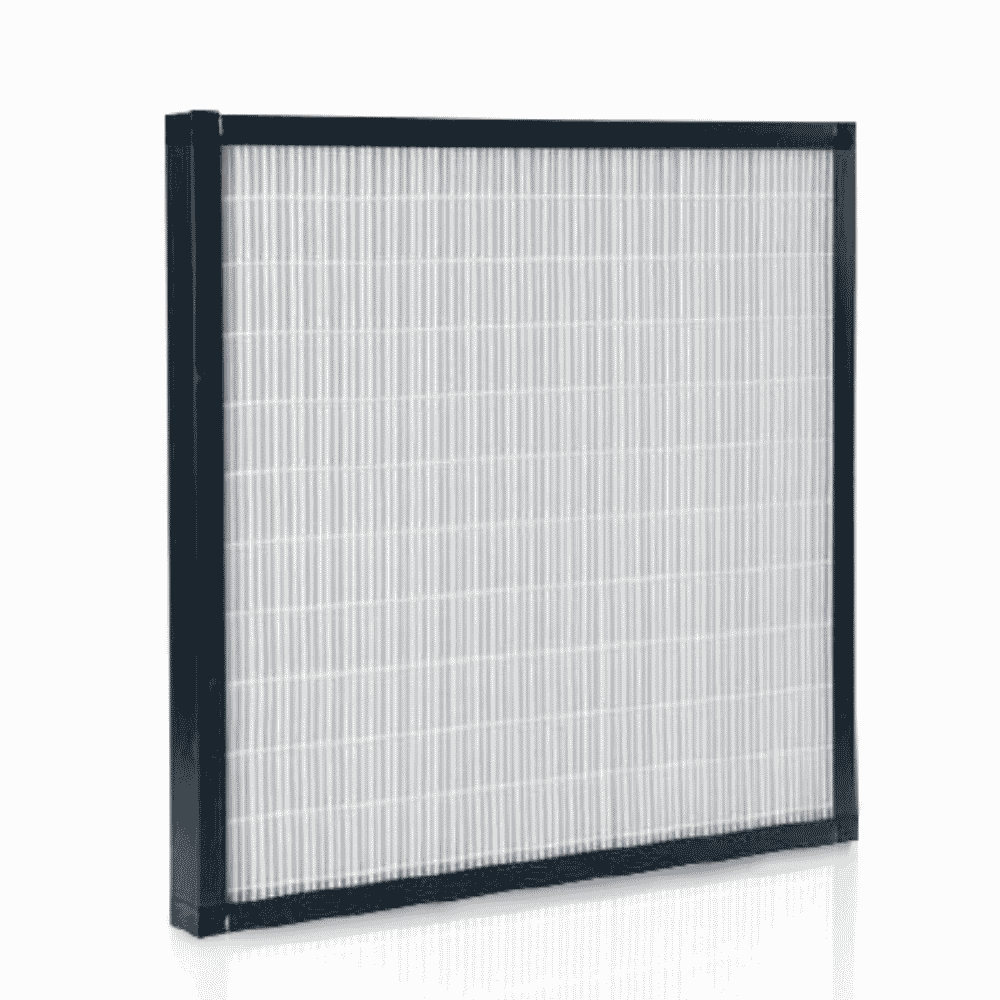

Compact mini-pleat panel filter for high-efficiency air filtration systems; compact size, high airflow, rigid construction for excellent filtration performance.

Category: Fine Filtration Tag: Air Filtech SKU: AirPan-PG-EN

Description

APPLICATION

• Used for high-efficiency air filtration systems.
• Compact size, high airflow.
• Rigid construction delivers excellent filtration performance.
• Protective wire mesh and sealing gasket available on request.

Technical Specifications

Unit filter Compact pleats smaller

Frame: Plastic
Filter media: Fiberglass
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779-2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Filter media: Synthetic fiber. Thickness khung: 48 – 88 – 96mm.
Gasket type: No gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Panel Depth mm	Filter media area m2	Airflow m3/h	Initial pressure drop Pa
AirPan-M6-287x592x048-PG-42	271501M	MN6PRK0XX	287x592x048	ePM10>50%	M6	42	2.85	1000	80
AirPan-M6-492x592x048-PG-42	271502M	MN6PRK0XX	492x592x048	ePM10>50%	M6	42	5.00	1600	80
AirPan-M6-592x592x048-PG-42	271503M	MN6PRK0XX	592x592x048	ePM10>50%	M6	42	6.00	2000	80
AirPan-F7-287x592x048-PG-42	271504M	MN7PRK0XX	287x592x048	ePM1>50%	F7	42	2.85	1000	100
AirPan-F7-492x592x048-PG-42	271505M	MN7PRK0XX	492x592x048	ePM1>50%	F7	42	5.00	1600	100
AirPan-F7-592x592x048-PG-42	271506M	MN7PRK0XX	592x592x048	ePM1>50%	F7	42	6.00	2000	100
AirPan-F8-287x592x048-PG-42	271507M	MN8PRK0XX	287x592x048	ePM1>65%	F8	42	2.85	1000	120
AirPan-F8-492x592x048-PG-42	271508M	MN8PRK0XX	492x592x048	ePM1>65%	F8	42	5.00	1600	120
AirPan-F8-592x592x048-PG-42	271509M	MN8PRK0XX	592x592x048	ePM1>65%	F8	42	6.00	2000	120
AirPan-F9-287x592x048-PG-42	271510M	MN9PRK0XX	287x592x048	ePM1>80%	F9	42	2.85	1000	150
AirPan-F9-492x592x048-PG-42	271511M	MN9PRK0XX	492x592x048	ePM1>80%	F9	42	5.00	1600	150
AirPan-F9-592x592x048-PG-42	271512M	MN9PRK0XX	592x592x048	ePM1>80%	F9	42	6.00	2000	150
AirPan-M6-287x592x096-PG-90	271401M	MN6PRL0XX	287x592x096	ePM10>50%	M6	90	5.50	1250	85
AirPan-M6-492x592x096-PG-90	271402M	MN6PRL0XX	492x592x096	ePM10>50%	M6	90	9.00	2100	85
AirPan-M6-592x592x096-PG-90	271403M	MN6PRL0XX	592x592x096	ePM10>50%	M6	90	11.00	2900	85
AirPan-F7-287x592x096-PG-90	271404M	MN7PRL0XX	287x592x096	ePM1>50%	F7	90	5.50	1250	100
AirPan-F7-492x592x096-PG-90	271405M	MN7PRL0XX	492x592x096	ePM1>50%	F7	90	9.00	2100	100
AirPan-F7-592x592x096-PG-90	271406M	MN7PRL0XX	592x592x096	ePM1>50%	F7	90	11.00	2900	100
AirPan-F8-287x592x096-PG-90	271407M	MN8PRL0XX	287x592x096	ePM1>65%	F8	90	5.50	1250	115
AirPan-F8-492x592x096-PG-90	271408M	MN8PRL0XX	492x592x096	ePM1>65%	F8	90	9.00	2100	115
AirPan-F8-592x592x096-PG-90	271409M	MN8PRL0XX	592x592x096	ePM1>65%	F8	90	11.00	2900	115
AirPan-F9-287x592x096-PG-90	271410M	MN9PRL0XX	287x592x096	ePM1>80%	F9	90	5.50	1250	130
AirPan-F9-492x592x096-PG-90	271411M	MN9PRL0XX	492x592x096	ePM1>80%	F9	90	9.00	2100	130
AirPan-F9-592x592x096-PG-90	271412M	MN9PRL0XX	592x592x096	ePM1>80%	F9	90	11.00	2900	130
