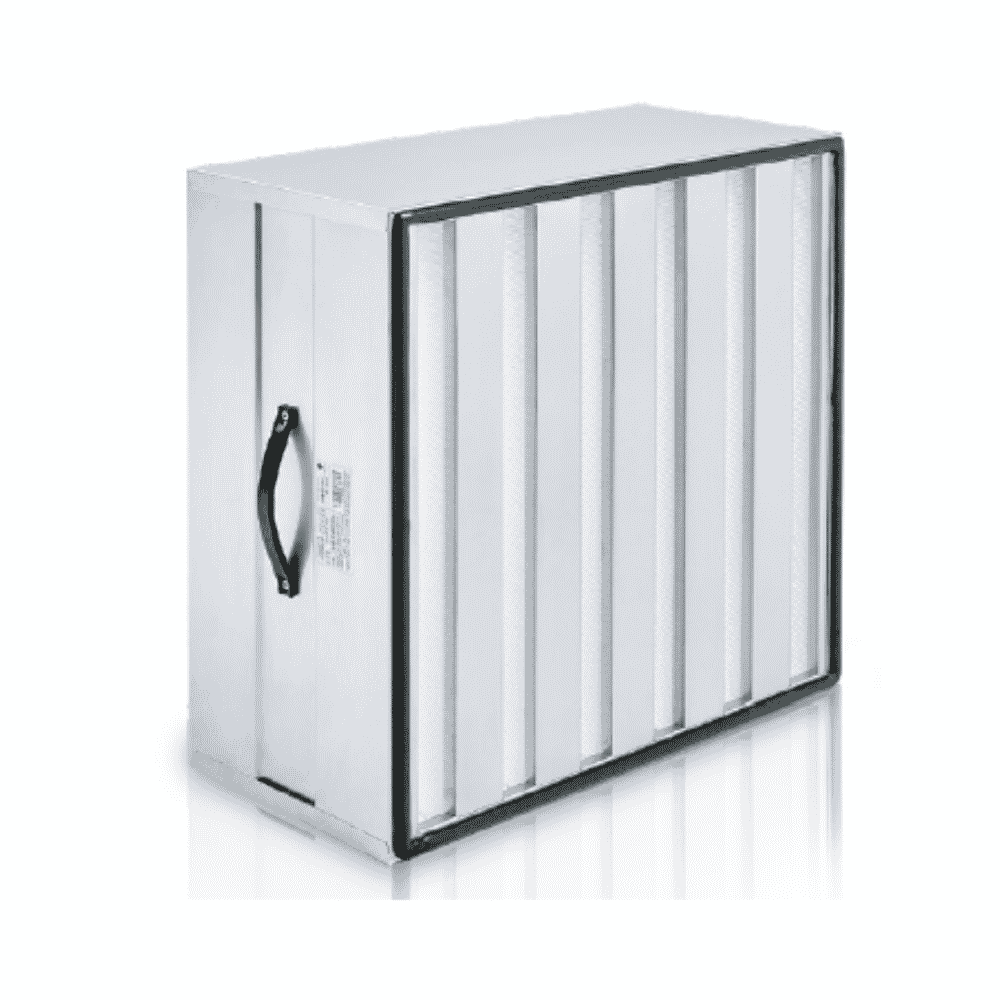

AV-292-GG

Name: AV-292-GG - Airfiltech
SKU: AV-292-GG-EN

In Stock

High-airflow V-bank filter, high-efficiency absolute filtration; used for cleanroom ventilation systems, microelectronics, food processing, data centers, hospitals, and medical device manufacturing.

Download Catalogue

Category: Fine Filtration Tag: Air Filtech SKU: AV-292-GG-EN

Description

APPLICATION

• High-efficiency absolute filtration, high airflow.
• Cleanroom ventilation systems.
• Used in microelectronics, food processing, photographic, data center, hospital and medical device industries.

Technical Specifications

Specification

Filter type V flow quality high
Frame: Galvanized steel
Filter media: Fiberglass
Type khung HF: None
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Final pressure drop:
EN 779:2012: 450 Pa.
ISO 16890: 300 Pa.
Fire classification: K1/F1 according to standard DIN53438

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Frame: Aluminum, SS304, SS316.
Filter media: High-temperature type 120oC.
Type khung HF: None, simplify 20/25 mm, double 20/25 mm, Dimensions upon request.
Protective mesh: No mesh, Air outlet side, Both sides.
Gasket position: None, Air outlet side, Air inlet side.
Gasket type: No gasket, Polyurethane, Rubber, EPDM, High-temperature gasket.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Number quality V-Banks	Filter media area m2	Airflow m3/h	Initial pressure drop Pa.
AV2V-M6-305x305x292-GG-8	250001M	MV6G2R08N0XX	305x305x292	eePM10>60%	M6	2V	8	800	60
AV2V-M6-305x610x292-GG-16	250002M	MV6G2R16N0XX	305x610x292	ePM10>60%	M6	2V	16	1650	60
AV4V-M6-457x610x292-GG-24	250003M	MV6G4R24N0XX	457x610x292	ePM10>60%	M6	4V	24	2700	60
AV5V-M6-610x610x292-GG-32	250004M	MV6G5R32N0XX	610x610x292	ePM10>60%	M6	5V	32	3400	60
AV6V-M6-610x762x292-GG-40	250005M	MV6G6R40N0XX	610x762x292	ePM10>60%	M6	6V	40	4250	60
AV8V-M6-610x915x292-GG-48	250006M	MV6G8R48N0XX	610x915x292	ePM10>60%	M6	8V	48	5100	60
AV2V-F7-305x305x292-GG-8	250007M	MV7G2R08N0XX	305x305x292	ePM1>50%	F7	2V	8	800	70
AV2V-F7-305x610x292-GG-16	250008M	MV7G2R16N0XX	305x610x292	ePM1>50%	F7	2V	16	1650	70
AV4V-F7-457x610x292-GG-24	250009M	MV7G4R24N0XX	457x610x292	ePM1>50%	F7	4V	24	2700	70
AV5V-F7-610x610x292-GG-32	250010M	MV7G5R32N0XX	610x610x292	ePM1>50%	F7	5V	32	3400	70
AV6V-F7-610x762x292-GG-40	250011M	MV7G6R40N0XX	610x762x292	ePM1>50%	F7	6V	40	4250	70
AV8V-F7-610x915x292-GG-48	250012M	MV7G8R48N0XX	610x915x292	ePM1>50%	F7	8V	48	5100	70
AV2V-F8-305x305x292-GG-8	250013M	MV8G2R08N0XX	305x305x292	ePM1>65%	F8	2V	8	800	80
AV2V-F8-305x610x292-GG-16	250014M	MV8G2R16N0XX	305x610x292	ePM1>65%	F8	2V	16	1650	80
AV4V-F8-457x610x292-GG-24	250015M	MV8G4R24N0XX	457x610x292	ePM1>65%	F8	4V	24	2700	80
AV5V-F8-610x610x292-GG-32	250016M	MV8G5R32N0XX	610x610x292	eePM1>65%	F8	5V	32	3400	80
AV6V-F8-610x762x292-GG-40	250017M	MV8G6R40N0XX	610x762x292	ePM1>65%	F8	6V	40	4250	80
AV8V-F8-610x915x292-GG-48	250018M	MV8G8R48N0XX	610x915x292	ePM1>65%	F8	8V	48	5100	80
AV2V-F9-305x305x292-GG-8	250019M	MV9G2R08N0XX	305x305x292	ePM1>80%	F9	2V	8	800	90
AV2V-F9-305x610x292-GG-16	250020M	MV9G2R16N0XX	305x610x292	ePM1>80%	F9	2V	16	1650	90
AV4V-F9-457x610x292-GG-24	250021M	MV9G4R24N0XX	457x610x292	ePM1>80%	F9	4V	24	2700	90
AV5V-F9-610x610x292-GG-32	250022M	MV9G5R32N0XX	610x610x292	ePM1>80%	F9	5V	32	3400	90
AV6V-F9-610x762x292-GG-40	250023M	MV9G6R40N0XX	610x762x292	ePM1>80%	F9	6V	40	4250	90
AV8V-F9-610x915x292-GG-48	250024M	MV9G8R48N0XX	610x915x292	ePM1>80%	F9	8V	48	5100	90
