AV-292-PG

Name: AV-292-PG - Airfiltech
SKU: AV-292-PG-EN

In Stock

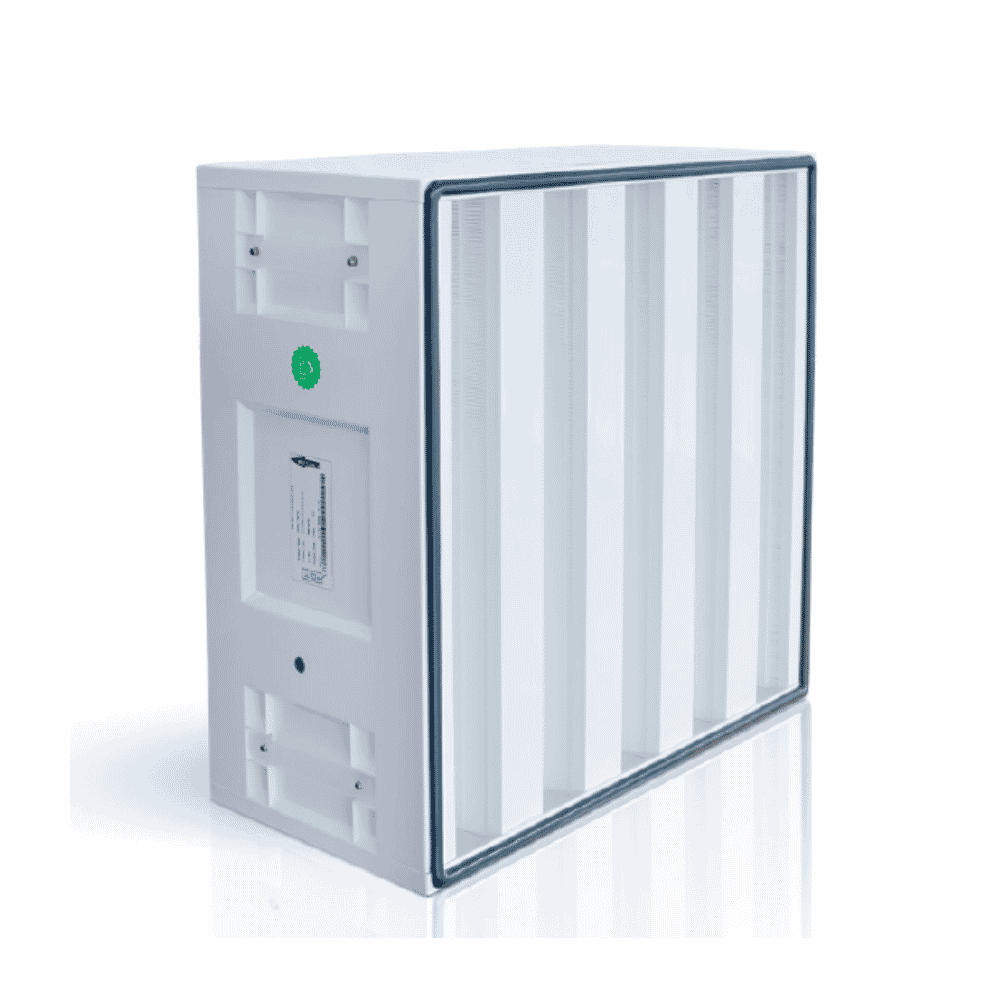

High-airflow V-bank filter, high-efficiency absolute filtration; used for cleanroom ventilation systems, microelectronics, food processing, data centers, hospitals, and medical device manufacturing.

Download Catalogue

Category: Fine Filtration Tag: Air Filtech SKU: AV-292-PG-EN

Description

APPLICATION

• High-efficiency absolute filtration, high airflow.
• Cleanroom ventilation systems.
• Used in microelectronics, food processing, photographic, data center, hospital and medical device industries.

Technical Specifications

Specification

Filter type V flow quality high
Frame: Plastic
Filter media: Fiberglass
Type khung HF: None
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Final pressure drop:
EN 779:2012: 450 Pa.
ISO 16890: 300 Pa.
Fire classification: K1/F1 according to standard DIN53438

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: VDI 6022 Blatt 1:2018, VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Filter media: High-temperature type 120oC.
Protective mesh: No mesh, Air outlet side, Both sides.
Gasket type: No gasket, Polyurethane, Rubber, EPDM, High-temperature gasket.
Gasket position: None, Air outlet side, Air inlet side.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Number quality V-Banks	Filter media area m2	Airflow m3/h	Initial pressure drop Pa.
AV2V-M6-305x610x292-PG-16	251001M	MV6P2R16N0XX	305x610x292	ePM10>60%	M6	2V	16	1650	60
AV5V-M6-610x610x292-PG-32	251002M	MV6P5R32N0XX	610x610x292	ePM10>60%	M6	5V	32	3400	60
AV2V-M6-287x592x292-PG-16	251003M	MV6P2R16N0XX	287x592x292	ePM10>60%	M6	2V	16	1650	60
AV5V-M6-592x592x292-PG-32	251004M	MV6P5R32N0XX	592x592x292	ePM10>60%	M6	5V	32	3400	60
AV2V-F7-305x610x292-PG-16	251005M	MV7P2R16N0XX	305x610x292	ePM1>50%	F7	2V	16	1650	70
AV5V-F7-610x610x292-PG-32	251006M	MV7P5R32N0XX	610x610x292	ePM1>50%	F7	5V	32	3400	70
AV2V-F7-287x592x292-PG-16	251007M	MV7P2R16N0XX	287x592x292	ePM1>50%	F7	2V	16	1650	70
AV5V-F7-592x592x292-PG-32	251008M	MV7P5R32N0XX	592x592x292	ePM1>50%	F7	5V	32	3400	70
AV2V-F8-305x610x292-PG-16	251009M	MV8P2R16N0XX	305x610x292	ePM1>65%	F8	2V	16	1650	80
AV5V-F8-610x610x292-PG-32	251010M	MV8P5R32N0XX	610x610x292	ePM1>65%	F8	5V	32	3400	80
AV2V-F8-287x592x292-PG-16	251011M	MV8P2R16N0XX	287x592x292	ePM1>65%	F8	2V	16	1650	80
AV5V-F8-592x592x292-PG-32	251012M	MV8P5R32N0XX	592x592x292	ePM1>65%	F8	5V	32	3400	80
AV2V-F9-305x610x292-PG-16	251013M	MV9P2R16N0XX	305x610x292	ePM1>80%	F9	2V	16	1650	90
AV5V-F9-610x610x292-PG-32	251014M	MV9P5R32N0XX	610x610x292	ePM1>80%	F9	5V	32	3400	90
AV2V-F9-287x592x292-PG-16	251015M	MV9P2R16N0XX	287x592x292	ePM1>80%	F9	2V	16	1650	90
AV5V-F9-592x592x292-PG-32	251016M	MV9P5R32N0XX	592x592x292	ePM1>80%	F9	5V	32	3400	90
