AV4V-292-420-GG

Name: AV4V-292-420-GG - Airfiltech
SKU: AV4V-292-420-GG-EN

In Stock

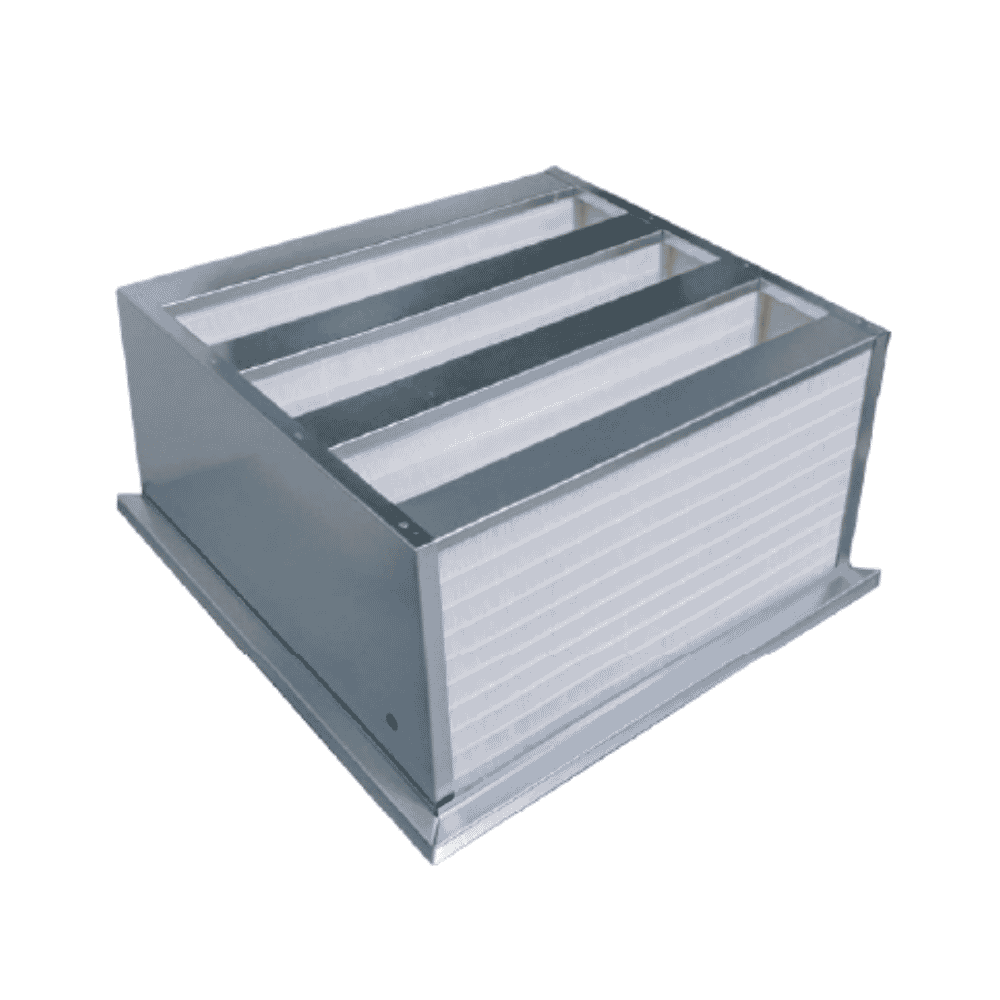

Rigid V-bank filter (4V Rigid Bank), V-shaped design increases surface area, high airflow, low initial pressure drop, long service life.

Download Catalogue

Category: Fine Filtration Tag: Air Filtech SKU: AV4V-292-420-GG-EN

Description

• Used for high-efficiency air filtration systems.
• Compact size, high airflow.
• Rigid construction delivers excellent filtration performance.
• V-shaped design increases surface area, delivering high airflow and low initial pressure drop.
• Long service life.
• Frame: Galvanized steel, 25mm depth | Filter media: Glass fiber.
• Two depths: 292mm and 420mm.
• Made in Turkey – Manufacturer: MGT.

Technical Specifications

Rigid V-bank filter

Frame: Galvanized steel
Filter media: Fiberglass
Type block: 4V Rigid Bank
Frame depth: 25mm
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: Filter Rigid V Bank | VDI 6022 Blatt 1:2018,VDI 3803 Blatt 1:2020, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
Food-contact compliant materials: Filter Rigid V Bank | (EC) No 1935/2004, (EC) No 2002/72, (EU) No 10/2011, (EU) No 2020/1245, U.S. FDA-Determining the Regulatory Status of Components of a Food Contact Material.

Other options available upon request

Frame: Aluminum, SS304, SS316. Filter media: High-temperature type 120oC.
Type khung HF: None, simplify 20/25mm, double 20/25mm, Dimensions upon request.
Protective mesh: No mesh, Air outlet side, Both sides. Gasket position: None, Air outlet side, Air inlet side.
Gasket type: No gasket, Polyurethane, Rubber, EPDM, High-temperature gasket.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD	Filter class ISO 16890	Filter class EN 779:2012	Filter media area m2	Airflow m3/h	Initial pressure drop Pa	Weight kg
AV4V-M6-287x592x292-GG-9	270001M	MV6G4R09T0XX	287x592x292	ePM10>60%	M6	9	1650	70	6
AV4V-M6-490x592x292-GG-15	270002M	MV6G4R15T0XX	490x592x292	ePM10>60%	M6	15	2700	70	10
AV4V-M6-592x592x292-GG-18	270003M	MV6G4R18T0XX	592x592x292	ePM10>60%	M6	18	3400	70	12
AV4V-F7-287x592x292-GG-9	270004M	MV7G4R09T0XX	287x592x292	ePM1>50%	F7	9	1650	80	6
AV4V-F7-490x592x292-GG-15	270005M	MV7G4R15T0XX	490x592x292	ePM1>50%	F7	15	2700	80	10
AV4V-F7-592x592x292-GG-18	270006M	MV7G4R18T0XX	592x592x292	ePM1>50%	F7	18	3400	80	12
AV4V-F8-287x592x292-GG-9	270007M	MV8G4R09T0XX	287x592x292	ePM1>65%	F8	9	1650	90	6
AV4V-F8-490x592x292-GG-15	270008M	MV8G4R15T0XX	490x592x292	ePM1>65%	F8	15	2700	90	10
AV4V-F8-592x592x292-GG-18	270009M	MV8G4R18T0XX	592x592x292	ePM1>65%	F8	18	3400	90	12
AV4V-F9-287x592x292-GG-9	270010M	MV9G4R09T0XX	287x592x292	ePM1>80%	F9	9	1650	110	6
AV4V-F9-490x592x292-GG-15	270011M	MV9G4R15T0XX	490x592x292	ePM1>80%	F9	15	2700	110	10
AV4V-F9-592x592x292-GG-18	270012M	MV9G4R18T0XX	592x592x292	ePM1>80%	F9	18	3400	110	12
AV4V-M6-287x592x420-GG-15	270013M	MV6G4R15T0XX	287x592x420	ePM10>60%	M6	15	1650	60	5
AV4V-M6-490x592x420-GG-24	270014M	MV6G4R24T0XX	490x592x420	ePM10>60%	M6	24	2700	60	8.5
AV4V-M6-592x592x420-GG-32	270015M	MV6G4R32T0XX	592x592x420	ePM10>60%	M6	32	3400	60	9
AV4V-F7-287x592x420-GG-15	270016M	MV7G4R15T0XX	287x592x420	ePM1>50%	F7	15	1650	70	5
AV4V-F7-490x592x420-GG-24	270017M	MV7G4R24T0XX	490x592x420	ePM1>50%	F7	24	2700	70	8.5
AV4V-F7-592x592x420-GG-32	270018M	MV7G4R32T0XX	592x592x420	ePM1>50%	F7	32	3400	70	9
AV4V-F8-287x592x420-GG-15	270019M	MV8G4R15T0XX	287x592x420	ePM1>65%	F8	15	1650	80	5
AV4V-F8-490x592x420-GG-24	270020M	MV8G4R24T0XX	490x592x420	ePM1>65%	F8	24	2700	80	8.5
AV4V-F8-592x592x420-GG-32	270021M	MV8G4R32T0XX	592x592x420	ePM1>65%	F8	32	3400	80	9
AV4V-F9-287x592x420-GG-15	270022M	MV9G4R15T0XX	287x592x420	ePM1>80%	F9	15	1650	90	5
AV4V-F9-490x592x420-GG-24	270023M	MV9G4R24T0XX	490x592x420	ePM1>80%	F9	24	2700	90	8.5
AV4V-F9-592x592x420-GG-32	270024M	MV9G4R32T0XX	592x592x420	ePM1>80%	F9	32	3400	90	9
