Name: Hi-Ca - Airfiltech
SKU: Hi-Ca-EN

Hi-Ca

In Stock

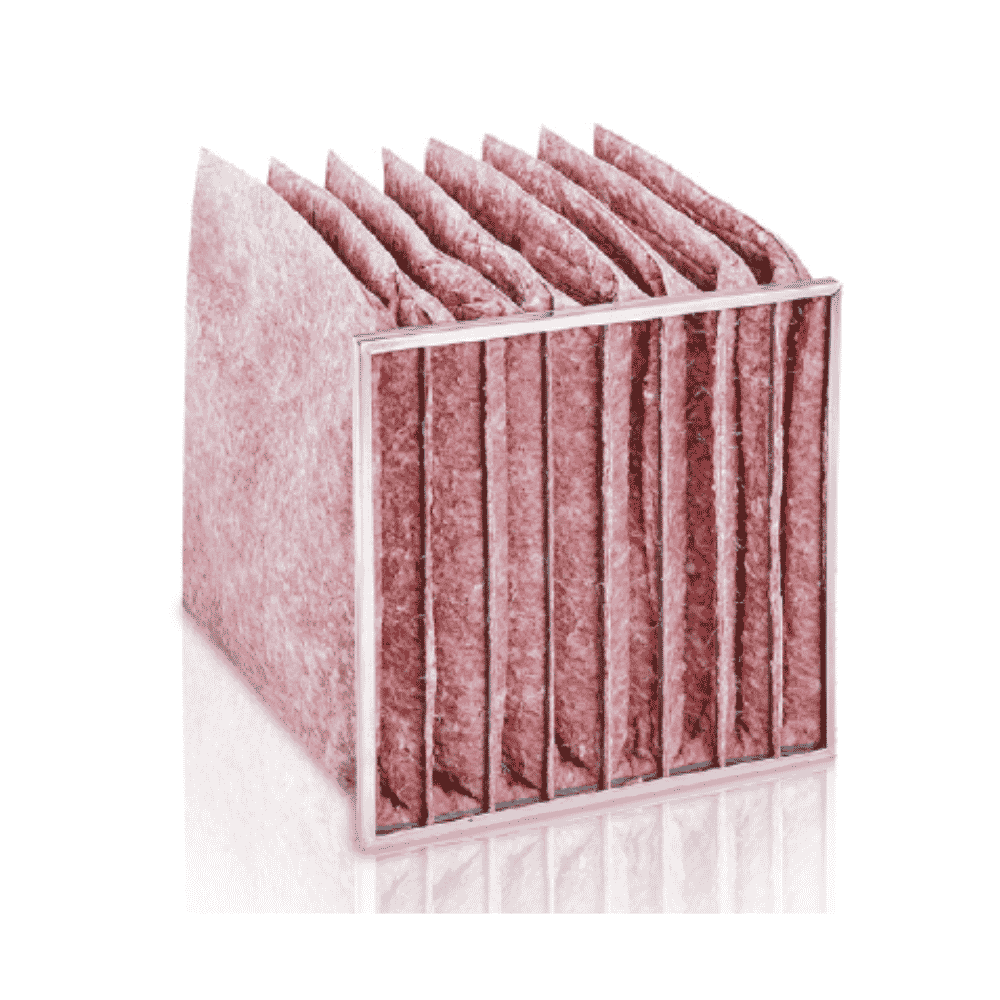

Glass fiber bag filter for ventilation and air conditioning systems; fine filtration of fine dust and aerosols, large surface area, reduced operating costs.

Description

APPLICATION

• Used in ventilation and air conditioning systems.
• Fine filtration, retaining suspended fine dust particles and aerosols.
• Large filtration surface area, high airflow, low initial pressure drop.
• Reduced operating costs.

Technical Specifications

Unit filter bag fiber glass tinh

Frame: Galvanized steel (Galvanized)
Filter media: Fiberglass
Frame depth: 25mm
Maximum temperature: 80oC
Fire classification: K1/F1 according to standard DIN53438
Relative humidity: 100%
Filtration stage: II-III
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: Filter bag | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Degree deep filter: 360mm.
Frame: Plastic cast raw block (25mm) / Plastic (Black – 25mm) / SS304 / SS316.
Frame depth: 20mm.
Gasket type: None gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD (mm)	Filter class ISO 16890	Filter class EN 779:2012	Number bag	Filter media area (m²)	Airflow (m³/h)	Initial pressure drop (Pa)
HC-M6-287x592x635-4P	311001M	MB6G25F04XX	287x592x635	ePM10>60%	M6	4	3.1	1700	70
HC-M6-287x592x635-5P	311002M	MB6G25F05XX	287x592x635	ePM10>60%	M6	5	4	1700	60
HC-M6-490x592x635-6P	311003M	MB6G25F06XX	490x592x635	ePM10>60%	M6	6	4.8	2800	70
HC-M6-490x592x635-8P	311004M	MB6G25F08XX	490x592x635	ePM10>60%	M6	8	6.4	2800	60
HC-M6-592x592x635-8P	311005M	MB6G25F08XX	592x592x635	ePM10>60%	M6	8	6.4	3400	70
HC-M6-592x592x635-10P	311006M	MB6G25F10XX	592x592x635	ePM10>60%	M6	10	8	3400	60
HC-F7-287x592x635-4P	311007M	MB7G25F04XX	287x592x635	ePM1>50%	F7	4	3.1	1700	95
HC-F7-287x592x635-5P	311008M	MB7G25F05XX	287x592x635	ePM1>50%	F7	5	4	1700	90
HC-F7-490x592x635-6P	311009M	MB7G25F06XX	490x592x635	ePM1>50%	F7	6	4.8	2800	95
HC-F7-490x592x635-8P	311010M	MB7G25F08XX	490x592x635	ePM1>50%	F7	8	6.4	2800	90
HC-F7-592x592x635-8P	311011M	MB7G25F08XX	592x592x635	ePM1>50%	F7	8	6.4	3400	95
HC-F7-592x592x635-10P	311012M	MB7G25F10XX	592x592x635	ePM1>50%	F7	10	8	3400	90
HC-F8-287x592x635-4P	311013M	MB8G25F04XX	287x592x635	ePM1>65%	F8	4	3.1	1700	150
HC-F8-287x592x635-5P	311014M	MB8G25F05XX	287x592x635	ePM1>65%	F8	5	4	1700	145
HC-F8-490x592x635-6P	311015M	MB8G25F06XX	490x592x635	ePM1>65%	F8	6	4.8	2800	155
HC-F8-490x592x635-8P	311016M	MB8G25F08XX	490x592x635	ePM1>65%	F8	8	6.4	2800	145
HC-F8-592x592x635-8P	311017M	MB8G25F08XX	592x592x635	ePM1>65%	F8	8	6.4	3400	150
HC-F8-592x592x635-10P	311018M	MB8G25F10XX	592x592x635	ePM1>65%	F8	10	8	3400	145
