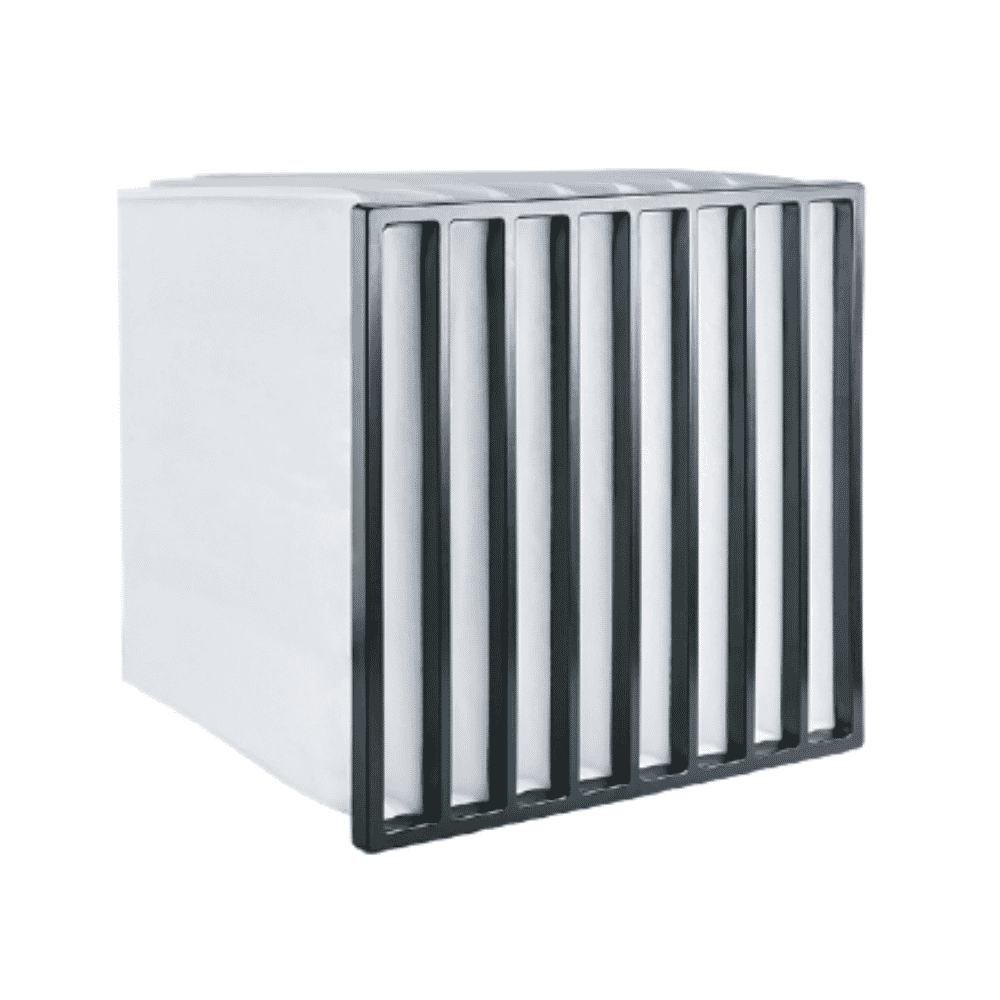

Rigid Bag

In Stock

Rigid synthetic fiber bag filter for ventilation and air conditioning systems; fine filtration retaining fine dust particles and aerosols, large surface area, low initial pressure drop.

Rigid Synthetic Fiber Bag Filter

Frame: Black plastic, 25mm thickness – P / One-piece molded plastic (25mm) – V
Filter media: High-frequency rigid type
Frame thickness: 25mm
Max. temperature: 80oC
Fire resistance class: K1/F1 per DIN53438 standard
Relative humidity: 100%
Filtration stage: II-III
Final pressure drop: EN 779-2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for air filters suitable for hazardous areas Zone 1, 2, 21 and 22.
Hygiene certification: Bag filter | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available on request

Filter depth: 360mm.
Frame: One-piece molded plastic (25mm) / Plastic (Black – 25mm) / Galvanized steel / Stainless steel 304 / Stainless steel 316.
Frame thickness: 20mm.
Gasket type: No gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet face, Air inlet face, Both faces.

Categories: Fine Filtration, Gas Turbine Filters, Second Filter Tag: Air Filtech SKU: Rigid Bag-EN

Description

APPLICATION

• Used in ventilation and air conditioning systems.
• Fine filtration, retaining suspended fine dust particles and aerosols.
• Large filtration surface area, high airflow, low initial pressure drop.
• Rigid bag structure delivers high filtration efficiency.

Technical Specifications

Unit filter bag hardness fiber total compound

Frame: Plastic Black surface thick 25mm – P / Plastic cast raw block (25mm) – V
Filter media: Type hardness high frequency
Frame depth: 25mm
Maximum temperature: 80oC
Fire classification: K1/F1 according to standard DIN53438
Relative humidity: 100%
Filtration stage: II-III
Final pressure drop: EN 779-2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: Filter bag | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Degree deep filter: 360mm.
Frame: Plastic cast raw block (25mm) / Plastic (Black – 25mm) / Galvanized steel / SS304 / SS316.
Frame depth: 20mm.
Gasket type: None gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD (mm)	Filter class ISO 16890	Filter class EN 779:2012	Number bag	Filter media area (m²)	Airflow (m³/h)	Initial pressure drop (Pa)
RS-M5-287x592x600-3P	350001M	MB5P25R03XX	287x592x600	ePM10>50%	M5	3	2.40	1700	45
RS-M5-287x592x600-4P	350002M	MB5P25R04XX	287x592x600	ePM10>50%	M5	4	3.20	1700	45
RS-M5-592x592x600-6P	350003M	MB5P25R06XX	592x592x600	ePM10>50%	M5	6	4.80	3400	45
RS1-M5-592x592x600-6P	350004M	MB5V25R06XX	592x592x600	ePM10>50%	M5	6	4.80	3400	45
RS-M5-592x592x600-8P	350005M	MB5P25R08XX	592x592x600	ePM10>50%	M5	8	6.40	3400	45
RS1-M5-592x592x600-8P	350006M	MB5V25R08XX	592x592x600	ePM10>50%	M5	8	6.40	3400	45
RS-M6-287x592x600-3P	350007M	MB6P25R03XX	287x592x600	ePM10>60%	M6	3	2.40	1700	50
RS-M6-287x592x600-4P	350008M	MB6P25R04XX	287x592x600	ePM10>60%	M6	4	3.20	1700	50
RS-M6-592x592x600-6P	350009M	MB6P25R06XX	592x592x600	ePM10>60%	M6	6	4.80	3400	50
RS1-M6-592x592x600-6P	350010M	MB6V25R06XX	592x592x600	ePM10>60%	M6	6	4.80	3400	50
RS-M6-592x592x600-8P	350011M	MB6P25R08XX	592x592x600	ePM10>60%	M6	8	6.40	3400	50
RS1-M6-592x592x600-8P	350012M	MB6V25R08XX	592x592x600	ePM10>60%	M6	8	6.40	3400	50
