Name: S-Ca - Airfiltech
SKU: S-Ca-EN

S-Ca

In Stock

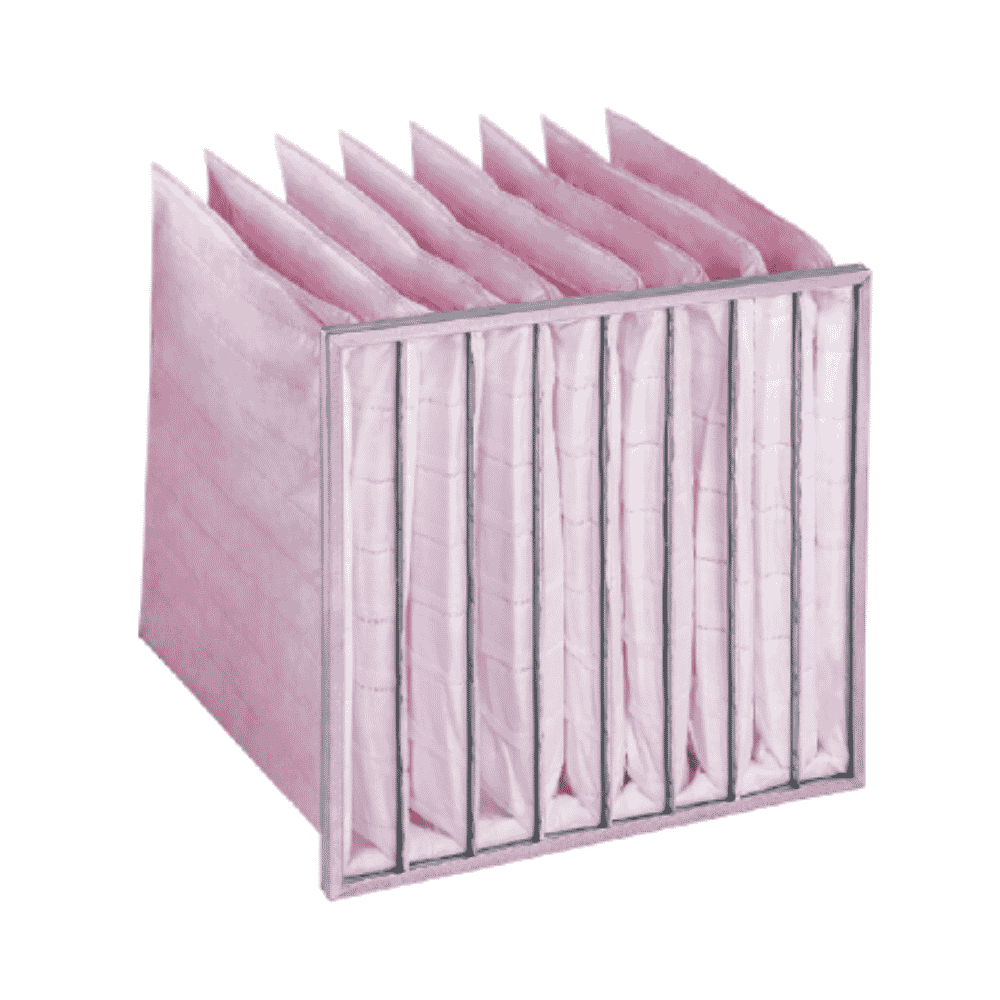

Synthetic fiber bag filter for ventilation and air conditioning systems; fine filtration of fine dust and aerosols, large surface area, reduced operating costs.

Description

APPLICATION

• Used in ventilation and air conditioning systems.
• Fine filtration, retaining suspended fine dust particles and aerosols.
• Large filtration surface area, high airflow, low initial pressure drop.
• Reduced operating costs.

Technical Specifications

Unit filter bag fiber total compound

Frame: Galvanized steel (Galvanized)
Filter media: Synthetic fiber
Frame depth: 25mm
Fire classification: K1/F1 according to standard DIN53438
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: Filter bag | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Degree deep filter: 360mm.
Frame: Plastic cast raw block (25mm) / Plastic (Black – 25mm) / SS304 / SS316.
Frame depth: 20mm.
Gasket type: None gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD (mm)	Filter class ISO 16890	Filter class EN 779:2012	Number bag	Filter media area (m²)	Airflow (m³/h)	Initial pressure drop (Pa)
SC-M6-287x592x635-3P	330001M	MB6G25S03XX	287x592x635	ePM10>60%	M6	3	2.40	850	60
SC-M6-287x592x635-4P	330002M	MB6G25S04XX	287x592x635	ePM10>60%	M6	4	3.20	1100	55
SC-M6-490x592x635-5P	330003M	MB6G25S05XX	490x592x635	ePM10>60%	M6	5	4.00	1400	50
SC-M6-490x592x635-6P	330004M	MB6G25S06XX	490x592x635	ePM10>60%	M6	6	4.80	1700	60
SC-M6-592x592x635-6P	330005M	MB6G25S06XX	592x592x635	ePM10>60%	M6	6	4.80	1700	60
SC-M6-592x592x635-8P	330006M	MB6G25S08XX	592x592x635	ePM10>60%	M6	8	6.40	2550	55
SC-M6-592x592x635-10P	330007M	MB6G25S10XX	592x592x635	ePM10>60%	M6	10	8.00	3000	60
SC-F7-287x592x635-3P	330008M	MB7G25S03XX	287x592x635	ePM1>50%	F7	3	2.40	850	90
SC-F7-287x592x635-4P	330009M	MB7G25S04XX	287x592x635	ePM1>50%	F7	4	3.20	1100	85
SC-F7-490x592x635-5P	330010M	MB7G25S05XX	490x592x635	ePM1>50%	F7	5	4.00	1400	90
SC-F7-490x592x635-6P	330011M	MB7G25S06XX	490x592x635	ePM1>50%	F7	6	4.80	1700	90
SC-F7-592x592x635-6P	330012M	MB7G25S06XX	592x592x635	ePM1>50%	F7	6	4.80	1700	90
SC-F7-592x592x635-8P	330013M	MB7G25S08XX	592x592x635	ePM1>50%	F7	8	6.40	2550	85
SC-F7-592x592x635-10P	330014M	MB7G25S10XX	592x592x635	ePM1>50%	F7	10	8.00	3000	90
SC-F8-287x592x635-3P	330015M	MB8G25S03XX	287x592x635	ePM1>65%	F8	3	2.40	850	110
SC-F8-287x592x635-4P	330016M	MB8G25S04XX	287x592x635	ePM1>65%	F8	4	3.20	1100	100
SC-F8-490x592x635-5P	330017M	MB8G25S05XX	490x592x635	ePM1>65%	F8	5	4.00	1400	110
SC-F8-490x592x635-6P	330018M	MB8G25S06XX	490x592x635	ePM1>65%	F8	6	4.80	1700	100
SC-F8-592x592x635-6P	330019M	MB8G25S06XX	592x592x635	ePM1>65%	F8	6	4.80	1700	100
SC-F8-592x592x635-8P	330020M	MB8G25S08XX	592x592x635	ePM1>65%	F8	8	6.40	2550	100
SC-F8-592x592x635-10P	330021M	MB8G25S10XX	592x592x635	ePM1>65%	F8	10	8.00	3000	110
