SNano-Ca

In Stock

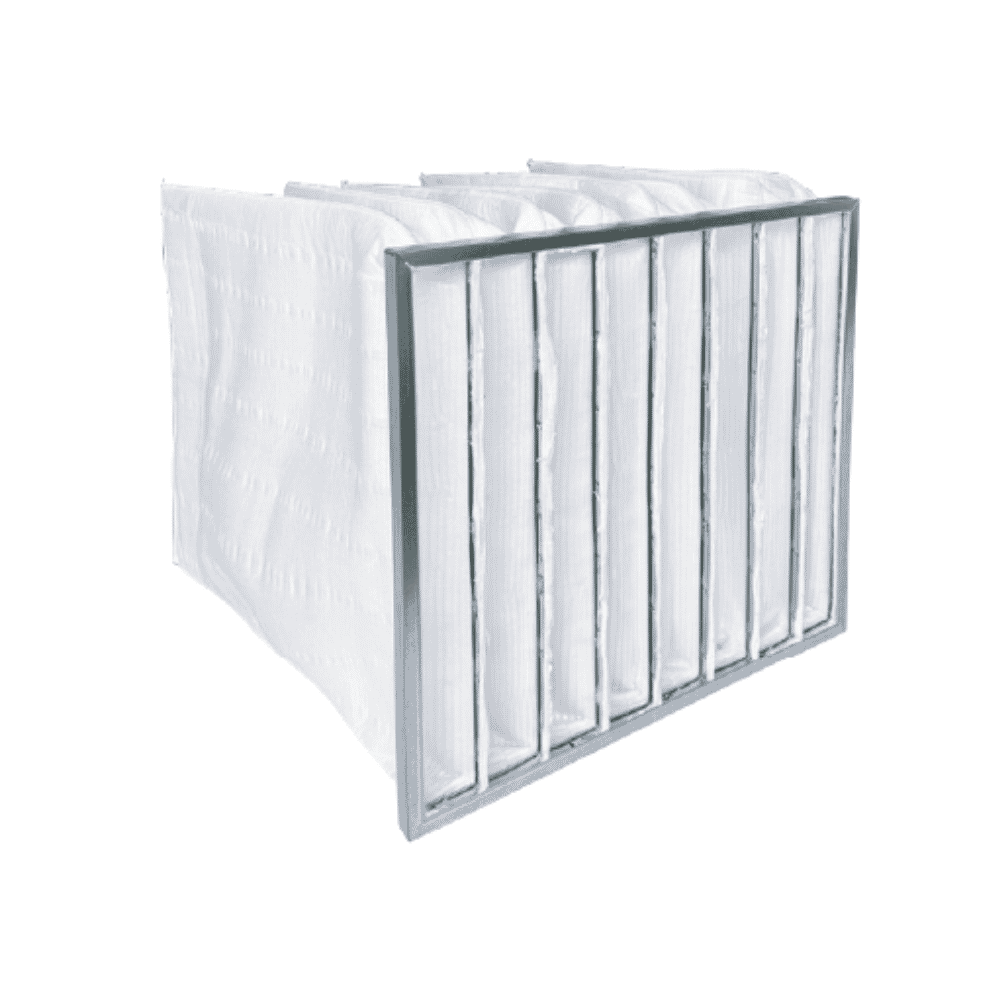

Nanowave synthetic fiber bag filter for ventilation and air conditioning systems; fine filtration of fine dust and aerosols, large surface area, reduced operating costs.

Category: Fine Filtration Tag: Air Filtech SKU: SNano-Ca-EN

Description

APPLICATION

• Used in ventilation and air conditioning systems.
• Fine filtration, retaining suspended fine dust particles and aerosols.
• Large filtration surface area, high airflow, low initial pressure drop.
• Reduced operating costs.

Technical Specifications

Unit filter bag fiber total compound Nanowave

Frame: Galvanized steel
Material material: Synthetic fiber Nanowave
Frame depth: 25mm
Maximum temperature: 80oC
Relative humidity: 100%
Filtration stage: II-III
Fire classification: K1/F1 according to standard DIN53438
Final pressure drop: EN 779:2012: 450 Pa. | ISO 16890: 300 Pa.

Certification

ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
Hygiene certification: Filter bag | VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.

Other options available upon request

Degree deep filter: 360mm.
Frame: Plastic cast raw block (25mm) / Plastic (Black – 25mm) / SS304 / SS316.
Frame depth: 20mm.
Gasket type: None gasket, Polyurethane, Rubber, EPDM.
Gasket position: None, Air outlet side, Air inlet side, Both sides.

Specification Table

Model	Code	MGT Code	Dimensions WxLxD (mm)	Filter class ISO 16890	Filter class EN 779:2012	Number bag	Filter media area (m²)	Airflow (m³/h)	Initial pressure drop (Pa)
SN-M6-287x592x635-4P	331001M	MB6G25N04	287x592x635	ePM10>60%	M6	4	3.00	1700	55
SN-M6-490x592x635-6P	331002M	MB6G25N06	490x592x635	ePM10>60%	M6	6	4.50	2800	55
SN-M6-592x592x635-8P	331003M	MB6G25N08	592x592x635	ePM10>60%	M6	8	6.00	3400	55
SN-M6-592x592x635-10P	331004M	MB6G25N10	592x592x635	ePM10>60%	M6	10	7.50	3400	50
SN-F7-287x592x635-4P	331005M	MB7G25N04	287x592x635	ePM1>50%	F7	4	3.80	1700	75
SN-F7-490x592x635-6P	331006M	MB7G25N06	490x592x635	ePM1>50%	F7	6	6.00	2800	75
SN-F7-592x592x635-8P	331007M	MB7G25N08	592x592x635	ePM1>50%	F7	8	6.00	3400	75
SN-F7-592x592x635-10P	331008M	MB7G25N10	592x592x635	ePM1>50%	F7	10	7.50	3400	70
SN-F8-287x592x635-4P	331009M	MB8G25N04	287x592x635	ePM1>65%	F8	4	3.80	1700	80
SN-F8-490x592x635-6P	331010M	MB8G25N06	490x592x635	ePM1>65%	F8	6	6.00	2800	80
SN-F8-592x592x635-8P	331011M	MB8G25N08	592x592x635	ePM1>65%	F8	8	7.50	3400	80
SN-F8-592x592x635-10P	331012M	MB8G25N10	592x592x635	ePM1>65%	F8	10	7.50	3400	75
SN-F9-287x592x635-4P	331013M	MB9G25N04	287x592x635	ePM1>80%	F9	4	3.80	1700	120
SN-F9-490x592x635-6P	331014M	MB9G25N06	490x592x635	ePM1>80%	F9	6	6.00	2800	120
SN-F9-592x592x635-8P	331015M	MB9G25N08	592x592x635	ePM1>80%	F9	8	7.50	3400	120
SN-F9-592x592x635-10P	331016M	MB9G25N10	592x592x635	ePM1>80%	F9	10	7.50	3400	115
