Description
APPLICATION
• Used in the automotive industry, heat-resistant up to 350oC.
• Silicone-free.
• High filtration efficiency, energy-saving.

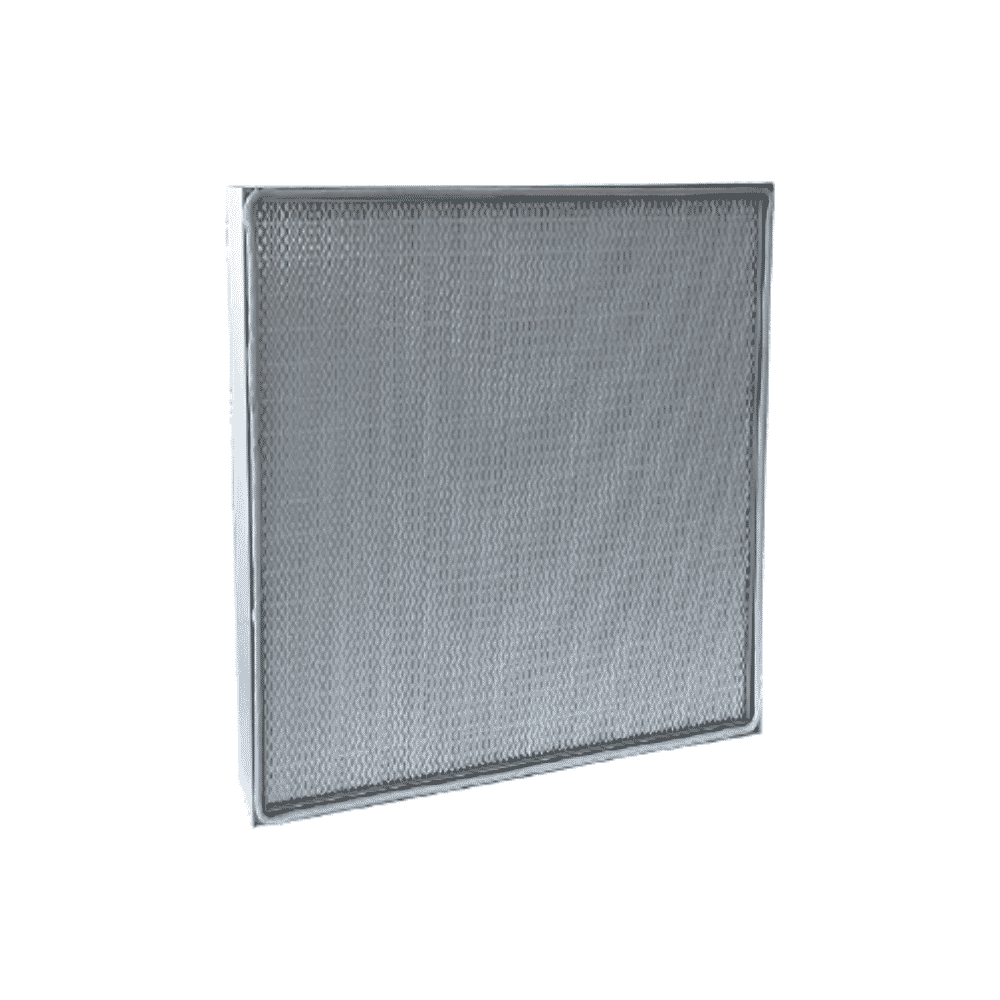

AirPanHT350-A
High-temperature panel filter (350°C), silicone-free, for the automotive industry; high efficiency, energy-saving.
Description
Technical Specifications
Technical Specifications
- Unit filter panel heavy-duty temperature air high
- Frame: Aluminum
- Filter media: Resistant temperature to 350oC
- Degree deep material: 26-48mm
- Type khung HF: space
- Gasket position: grille air out
- Type Gasket gasket: Cord Gasket
- Maximum temperature: 350oC
- Relative humidity: 100%
- Filtration stage: II-III
- Final pressure drop: EN 779-2012: 450 Pa. | ISO 16890: 300 Pa.
- Certification
- ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
- Hygiene certification: VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
- Other options available upon request
- Filter media: heavy-duty temperature to 270oC.
- Type khung HF: Dimensions depending options.
- Gasket position: None, grille air into, grille air out.
Specification Table
Specification Table
| Model | Code | MGT Code | Filter class ISO 16890 | Filter class EN 779-2012 | Dimensions WxLxD | Airflow/Differential pressure m3/h/Pa | Filter media area m2 |
| AirPanHT350-M6-457x915x30-A | 279901M | HTM6AYKNCC | ISO ePM10 60% | M6 | 457x915x30 | 2130/60 | 4 |
| AirPanHT350-M6-480x480x30-A | 279902M | HTM6AYKNCC | ISO ePM10 60% | M6 | 480x480x30 | 1180/60 | 2.3 |
| AirPanHT350-M6-610x610x30-A | 279903M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x610x30 | 1900/60 | 3.6 |
| AirPanHT350-M6-610x915x30-A | 279904M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x915x30 | 2850/60 | 5.4 |
| AirPanHT350-F8-457x915x30-A | 279905M | HTM8AYKNCC | ISO ePM1 65% | F8 | 457x915x30 | 1800/100 | 4 |
| AirPanHT350-F8-480x480x30-A | 279906M | HTM8AYKNCC | ISO ePM1 65% | F8 | 480x480x30 | 990/100 | 2.3 |
| AirPanHT350-F8-610x610x30-A | 279907M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x610x30 | 1600/100 | 3.6 |
| AirPanHT350-F8-610x915x30-A | 279908M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x915x30 | 2400/100 | 5.4 |
| AirPanHT350-M6-457x915x40-A | 279909M | HTM6AYKNCC | ISO ePM10 60% | M6 | 457x915x40 | 2130/60 | 6.05 |
| AirPanHT350-M6-480x480x40-A | 279910M | HTM6AYKNCC | ISO ePM10 60% | M6 | 480x480x40 | 1180/60 | 3.3 |
| AirPanHT350-M6-610x610x40-A | 279911M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x610x40 | 1900/60 | 5.4 |
| AirPanHT350-M6-610x915x40-A | 279912M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x915x40 | 2850/60 | 8.1 |
| AirPanHT350-F8-457x915x40-A | 279913M | HTM8AYKNCC | ISO ePM1 65% | F8 | 457x915x40 | 1800/100 | 6.05 |
| AirPanHT350-F8-480x480x40-A | 279914M | HTM8AYKNCC | ISO ePM1 65% | F8 | 480x480x40 | 990/100 | 3.3 |
| AirPanHT350-F8-610x610x40-A | 279915M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x610x40 | 1600/100 | 5.4 |
| AirPanHT350-F8-610x915x40-A | 279916M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x915x40 | 2400/100 | 8.1 |
| AirPanHT350-M6-457x915x48-A | 279917M | HTM6AYKNCC | ISO ePM10 60% | M6 | 457x915x48 | 2465/75 | 7.3 |
| AirPanHT350-M6-480x480x48-A | 279918M | HTM6AYKNCC | ISO ePM10 60% | M6 | 480x480x48 | 1365/75 | 4 |
| AirPanHT350-M6-610x610x48-A | 279919M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x610x48 | 2200/75 | 6.5 |
| AirPanHT350-M6-610x915x48-A | 279920M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x915x48 | 3300/75 | 9.7 |
| AirPanHT350-F8-457x915x48-A | 279921M | HTM8AYKNCC | ISO ePM1 65% | F8 | 457x915x48 | 2025/100 | 7.3 |
| AirPanHT350-F8-480x480x48-A | 279922M | HTM8AYKNCC | ISO ePM1 65% | F8 | 480x480x48 | 1115/100 | 4 |
| AirPanHT350-F8-610x610x48-A | 279923M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x610x48 | 1800/100 | 6.5 |
| AirPanHT350-F8-610x915x48-A | 279924M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x915x48 | 2700/100 | 9.7 |
| AirPanHT350-M6-457x915x55-A | 279925M | HTM6AYKNCC | ISO ePM10 60% | M6 | 457x915x55 | 2800/90 | 8.5 |
| AirPanHT350-M6-480x480x55-A | 279926M | HTM6AYKNCC | ISO ePM10 60% | M6 | 480x480x55 | 1550/90 | 4.6 |
| AirPanHT350-M6-610x610x55-A | 279927M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x610x55 | 2500/90 | 7.5 |
| AirPanHT350-M6-610x915x55-A | 279928M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x915x55 | 3750/90 | 11.25 |
| AirPanHT350-F8-457x915x55-A | 279929M | HTM8AYKNCC | ISO ePM1 65% | F8 | 457x915x55 | 2250/100 | 8.5 |
| AirPanHT350-F8-480x480x55-A | 279930M | HTM8AYKNCC | ISO ePM1 65% | F8 | 480x480x55 | 1240/100 | 4.6 |
| AirPanHT350-F8-610x610x55-A | 279931M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x610x55 | 2000/100 | 7.5 |
| AirPanHT350-F8-610x915x55-A | 279932M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x915x55 | 3000/100 | 11.25 |
| AirPanHT350-M6-457x915x78-A | 279933M | HTM6AYKNCC | ISO ePM10 60% | M6 | 457x915x78 | 2800/90 | 8.5 |
| AirPanHT350-M6-480x480x78-A | 279934M | HTM6AYKNCC | ISO ePM10 60% | M6 | 480x480x78 | 1550/90 | 4.6 |
| AirPanHT350-M6-610x610x78-A | 279935M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x610x78 | 2500/90 | 7.5 |
| AirPanHT350-M6-610x915x78-A | 279936M | HTM6AYKNCC | ISO ePM10 60% | M6 | 610x915x78 | 3750/90 | 11.25 |
| AirPanHT350-F8-457x915x78-A | 279937M | HTM8AYKNCC | ISO ePM1 65% | F8 | 457x915x78 | 2250/100 | 8.5 |
| AirPanHT350-F8-480x480x78-A | 279938M | HTM8AYKNCC | ISO ePM1 65% | F8 | 480x480x78 | 1240/100 | 4.6 |
| AirPanHT350-F8-610x610x78-A | 279939M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x610x78 | 2000/100 | 7.5 |
| AirPanHT350-F8-610x915x78-A | 279940M | HTM8AYKNCC | ISO ePM1 65% | F8 | 610x915x78 | 3000/100 | 11.25 |
