Description
APPLICATION
• Used in the automotive industry, heat-resistant up to 350oC.
• Silicone-free.
• High filtration efficiency, large surface area.
AV-HT350-292-G

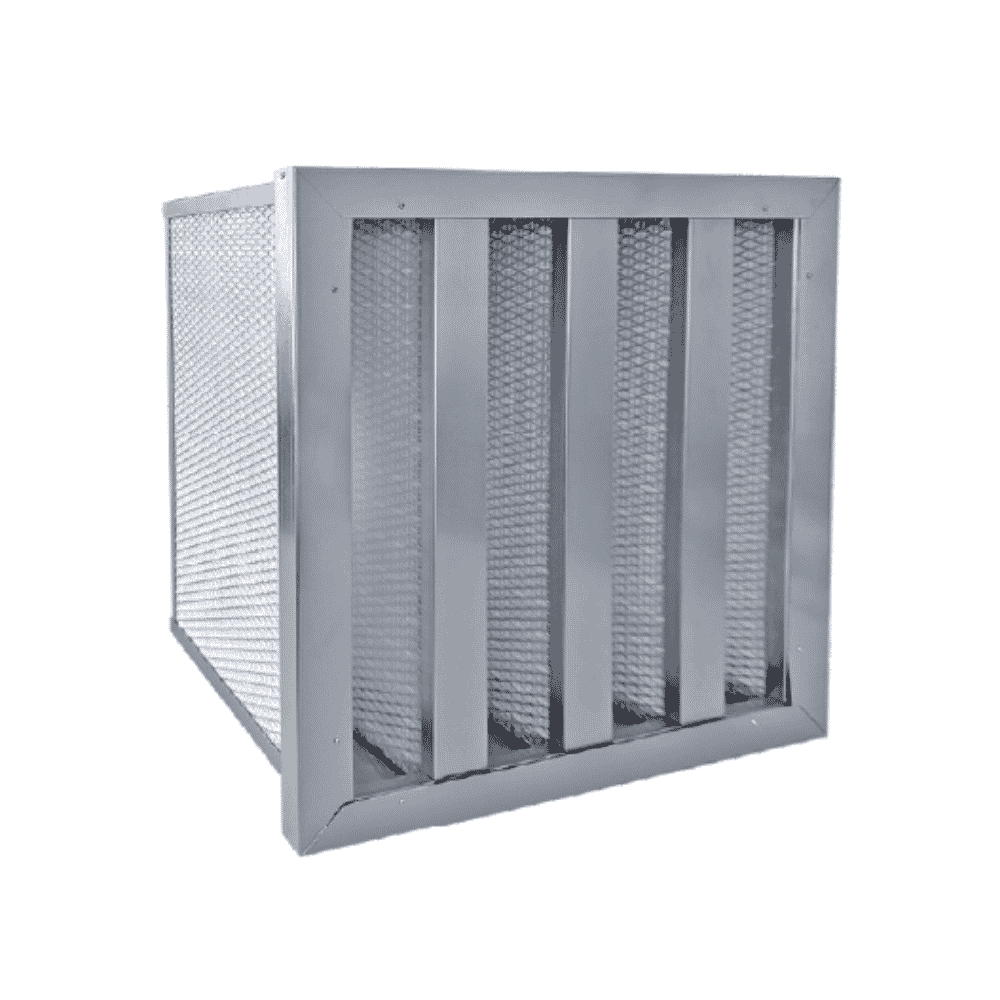

High-temperature V-bank filter (350°C), silicone-free, for the automotive industry; high efficiency, large surface area.
Description
Technical Specifications
Technical Specifications
- Unit filter block V heavy-duty temperature air high
- Frame: Galvanized steel
- Filter media: heavy-duty temperature to 350oC
- Surface: 15m2
- Type khung HF: simplify 25mm
- Type Gasket: Cord Gasket
- Maximum temperature: 350oC
- Relative humidity: 100%
- Filtration stage: II-III
- Final pressure drop: EN779-2012: 450 Pa. | ISO 16890: 300 Pa.
- Certification
- ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
- Hygiene certification: VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
- Other options available upon request
- Frame: Aluminum, SS304, SS316.
- Filter media: heavy-duty temperature to 270oC.
- Type khung HF: simplify 20mm, Dimensions depending options.
- Gasket position: None, grille air out, grille air into.
Specification Table
Specification Table
| Model | Code | MGT Code | Filter class ISO 16890 | Filter class EN 779:2012 | Dimensions WxLxD | Airflow/Differential pressure m3/h/Pa | Filter media area m2 | Weight kg |
| AV6-HT350-287x592x292-G | 279001M | HTV6GY15TCC | ISO ePM10 60% | M6 | 287x592x292 | 1700/75 | 7 | 5 |
| AV6-HT350-492x592x292-G | 279002M | HTV6GY15TCC | ISO ePM10 60% | M6 | 492x592x292 | 2500/75 | 12 | 8.5 |
| AV6-HT350-592x592x292-G | 279003M | HTV6GY15TCC | ISO ePM10 60% | M6 | 592x592x292 | 3400/75 | 15 | 10 |
| AV8-HT350-287x592x292-G | 279004M | HTV8GY15TCC | ISO ePM1 65% | F8 | 287x592x292 | 1700/100 | 7 | 5 |
| AV8-HT350-492x592x292-G | 279005M | HTV8GY15TCC | ISO ePM1 65% | F8 | 492x592x292 | 2500/100 | 12 | 8.5 |
| AV8-HT350-592x592x292-G | 279006M | HTV8GY15TCC | ISO ePM1 65% | F8 | 592x592x292 | 3400/100 | 15 | 10 |
