Description
APPLICATION
• High-temperature-resistant aluminum separators.
• Used in high-airflow filtration equipment.
• Low initial pressure drop.
• Gasket, frame, and protective wire mesh available on request.

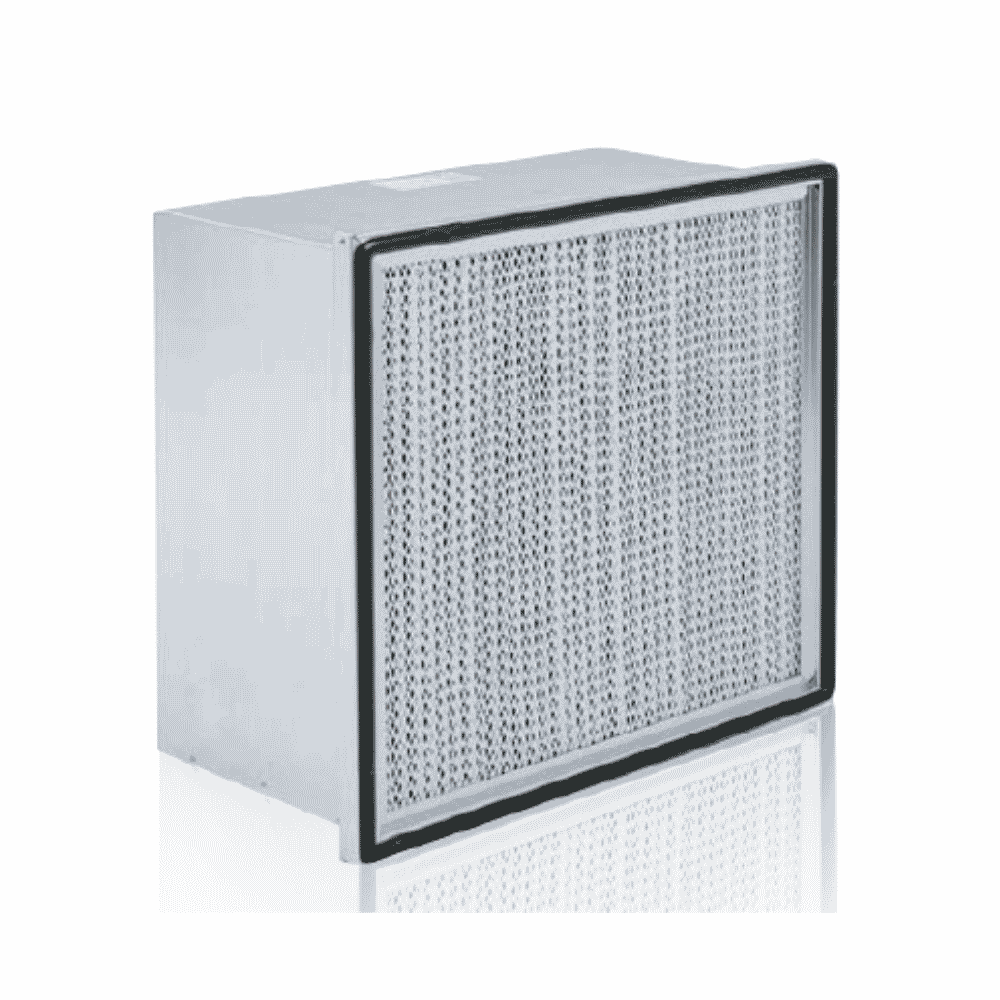

HT250-HF
Filter with high-temperature-resistant aluminum separators (250-350°C); used in high-airflow filtration equipment, low initial pressure drop.
Description
Technical Specifications
Technical Specifications
- Unit filter with baffle baffle aluminum heavy-duty temperature
- Frame: Galvanized steel
- Filter media: Fiberglass
- Type khung HF: simplify 25mm
- Protective mesh: No mesh
- Gasket type: High-temperature gasket
- Gasket position: Air outlet side
- Maximum temperature: 250-350oC
- Relative humidity: 100%
- Filtration stage: II-III
- Fire classification: K1/F1 according to standard DIN53438
- Final pressure drop: EN 779-2012: 450 Pa. | ISO 16890: 300 Pa.
- Certification
- ATEX certification: for filter air suitable compound for area area with risk facility fire explosion zone 1, 2, 21 and 22.
- Hygiene certification: VDI 6022 Blatt 1:2018, DIN 1946-4:2018, ISO 846:2019 Plastics, BS EN 17141:2020.
- Other options available upon request
- Frame: Galvanized steel, Aluminum, SS304, SS316. Filter media: High-temperature type. Degree deep blade baffle: 3-5-8mm.
- Type khung HF: None, simplify 20/25mm, double 20/25mm, Dimensions upon request.
- Protective mesh: No mesh, Mesh grille air out, Mesh both two grille.
- Gasket type: No gasket, Polyurethane, Rubber, EPDM, High-temperature gasket, Cord gasket (Cord gasket).
- Gasket position: None, Air outlet side, Air inlet side, Both sides.
Specification Table
Specification Table
| Model | Code | MGT Code | Dimensions WxLxD | Filter class ISO 16890 | Filter class EN 779:2012 | Degree deep blade chia mm | Filter media area m2 | Airflow m3/h | Initial pressure drop Pa |
| HT250-HF-M6-287x592x292-01/00-GAL-6 | 213501M | MA6GR8T0YC | 287x592x292 | ePM10>60% | M6 | 8 | 6.00 | 1700 | 120 |
| HT250-HF-M6-592x592x292-01/00-GAL-13 | 213502M | MA6GR8T0YC | 592x592x292 | ePM10>60% | M6 | 8 | 13.00 | 3400 | 120 |
| HT250-HF-F7-287x592x292-01/00-GAL-6 | 213503M | MA7GR8T0YC | 287x592x292 | ePM1>50% | F7 | 8 | 6.00 | 1700 | 140 |
| HT250-HF-F7-592x592x292-01/00-GAL-13 | 213504M | MA7GR8T0YC | 592x592x292 | ePM1>50% | F7 | 8 | 13.00 | 3400 | 140 |
| HT250-HF-F8-287x592x292-01/00-GAL-6 | 213505M | MA8GR8T0YC | 287x592x292 | ePM1>65% | F8 | 8 | 6.00 | 1700 | 150 |
| HT250-HF-F8-592x592x292-01/00-GAL-13 | 213506M | MA8GR8T0YC | 592x592x292 | ePM1>65% | F8 | 8 | 13.00 | 3400 | 150 |
| HT250-HF-M6-287x592x150-01/00-GAL-3 | 213507M | MA6GR8T0YC | 287x592x150 | ePM10>60% | M6 | 8 | 3.00 | 750 | 35 |
| HT250-HF-M6-592x592x150-01/00-GAL-6 | 213508M | MA6GR8T0YC | 592x592x150 | ePM10>60% | M6 | 8 | 5.50 | 1500 | 35 |
| HT250-HF-F7-287x592x150-01/00-GAL-3 | 213509M | MA7GR8T0YC | 287x592x150 | ePM1>50% | F7 | 8 | 3.00 | 750 | 45 |
| HT250-HF-F7-592x592x150-01/00-GAL-6 | 213510M | MA7GR8T0YC | 592x592x150 | ePM1>50% | F7 | 8 | 5.50 | 1500 | 45 |
| HT250-HF-F8-287x592x150-01/00-GAL-3 | 213511M | MA8GR8T0YC | 287x592x150 | ePM1>65% | F8 | 8 | 3.00 | 750 | 55 |
| HT250-HF-F8-592x592x150-01/00-GAL-6 | 213512M | MA8GR8T0YC | 592x592x150 | ePM1>65% | F8 | 8 | 5.50 | 1500 | 55 |
| HT250-HF-M6-287x592x292-01/00-GAL-8 | 213513M | MA6GR5T0YC | 287x592x292 | ePM10>60% | M6 | 5 | 8.00 | 1700 | 110 |
| HT250-HF-M6-592x592x292-01/00-GAL-17 | 213514M | MA6GR5T0YC | 592x592x292 | ePM10>60% | M6 | 5 | 17.00 | 3400 | 110 |
| HT250-HF-F7-287x592x292-01/00-GAL-8 | 213515M | MA7GR5T0YC | 287x592x292 | ePM1>50% | F7 | 5 | 8.00 | 1700 | 130 |
| HT250-HF-F7-592x592x292-01/00-GAL-17 | 213516M | MA7GR5T0YC | 592x592x292 | ePM1>50% | F7 | 5 | 17.00 | 3400 | 130 |
| HT250-HF-F8-287x592x292-01/00-GAL-8 | 213517M | MA8GR5T0YC | 287x592x292 | ePM1>65% | F8 | 5 | 8.00 | 1700 | 140 |
| HT250-HF-F8-592x592x292-01/00-GAL-17 | 213518M | MA8GR5T0YC | 592x592x292 | ePM1>65% | F8 | 5 | 17.00 | 3400 | 140 |
| HT250-HF-M6-287x592x150-01/00-GAL-4 | 213519M | MA6GR5T0YC | 287x592x150 | ePM10>60% | M6 | 5 | 4.00 | 750 | 30 |
| HT250-HF-M6-592x592x150-01/00-GAL-9 | 213520M | MA6GR5T0YC | 592x592x150 | ePM10>60% | M6 | 5 | 9.00 | 1500 | 30 |
| HT250-HF-F7-287x592x150-01/00-GAL-4 | 213521M | MA7GR5T0YC | 287x592x150 | ePM1>50% | F7 | 5 | 4.00 | 750 | 40 |
| HT250-HF-F7-592x592x150-01/00-GAL-9 | 213522M | MA7GR5T0YC | 592x592x150 | ePM1>50% | F7 | 5 | 9.00 | 1500 | 40 |
| HT250-HF-F8-287x592x150-01/00-GAL-4 | 213523M | MA8GR5T0YC | 287x592x150 | ePM1>65% | F8 | 5 | 4.00 | 750 | 50 |
| HT250-HF-F8-592x592x150-01/00-GAL-9 | 213524M | MA8GR5T0YC | 592x592x150 | ePM1>65% | F8 | 5 | 9.00 | 1500 | 50 |
