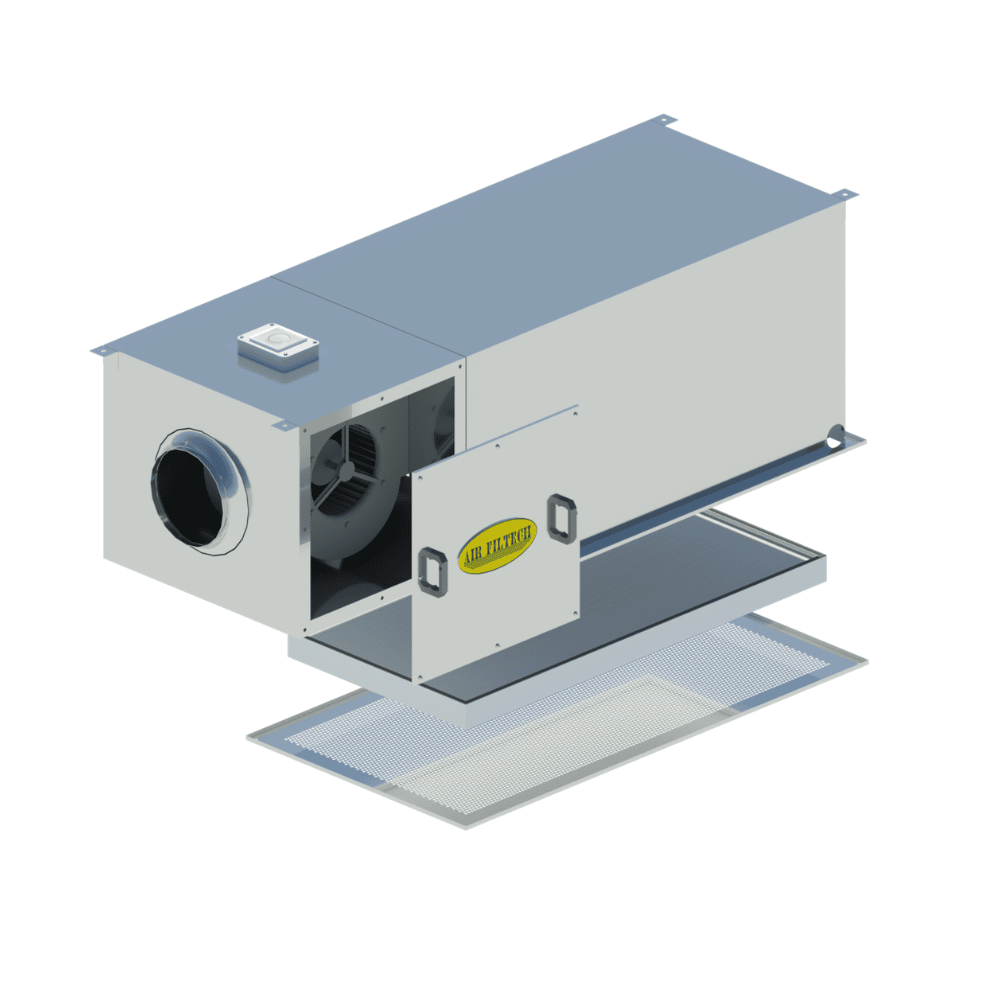

Integrated high-power blower filter unit (Blower Filter Unit), combining a high-efficiency fan with HEPA/ULPA filtration to supply ultra-clean air to a designated area.
• A device integrating a high-efficiency fan and a HEPA/ULPA filtration system, supplying ultra-clean air for high-standard environments.
• Draws in ambient air, effectively removing suspended particles, microorganisms and other contaminants before supplying the filtered air back to the designated area.
• Suitable for the pharmaceutical, electronics manufacturing, food processing and healthcare industries.
• Ideal for areas requiring strict air quality control.
APPLICATIONS:
This integrated unit combines a high-efficiency fan with a HEPA/ULPA filtration system, designed to supply ultra-clean air for high-standard environments. The unit draws in ambient air, effectively removes airborne particles, microorganisms, and other contaminants, then supplies the filtered air back to the designated area. BFU is ideal for industries such as pharmaceuticals, electronics manufacturing, food processing and healthcare, where strict air-quality control is essential.
CONSTRUCTION
AF-BFU-Forward-curved
| Model | Dimensions Filter HEPA/ULPA (WxHxD) mm | Dimensions BFU (AxBxH) mm | Dimensions housing (A1xB1xH1) mm | Dimensions housing fan (A2xB2xH2) mm | Dimensions fan (mm) |
| BFU-2×2*-EC-E | 610x610x69/90/110 | 1080x680x470 | 680x680x470 | 400x680x400 | 160 |
| BFU-2.5×2*-EC-E | 762x610x69/90/110 | 1232x680x470 | 832x680x470 | 400x680x400 | 160 |
| BFU-3×2*-EC-E | 915x610x69/90/110 | 1384x680x470 | 984x680x470 | 400x680x400 | 160 |
| BFU-4×2*-EC-E | 1220x610x69/90/110 | 1689x680x470 | 1289x680x470 | 400x680x400 | 160 |
| BFU-4×4*-EC-E | 1220x1220x69/90/110 | 1739x1289x570 | 1289x1289x570 | 450x1289x500 | 180 |
| BFU-2×2*-AC-E | 610x610x69/90/110 | 1130x680x570 | 680x680x570 | 450x680x500 | 180 |
| BFU-2.5×2*-AC-E | 762x610x69/90/110 | 1282x680x570 | 832x680x570 | 450x680x500 | 180 |
| BFU-3×2*-AC-E | 915x610x69/90/110 | 1434x680x570 | 984x680x570 | 450x680x500 | 180 |
| BFU-4×2*-AC-E | 1220x610x69/90/110 | 1769x680x600 | 1289x680x600 | 480x680x530 | 200 |
| BFU-4×4*-AC-E | 1220x1220x69/90/110 | 1769x1289x600 | 1289x1289x600 | 480x1289x530 | 225 |
| BFU-2×2*-EC-F | 610x610x69/90/110 | 1080x680x470 | 680x680x470 | 400x680x400 | 146 |
| BFU-2.5×2*-EC-F | 762x610x69/90/110 | 1332x680x620 | 832x680x620 | 500x680x550 | 230 |
| BFU-3×2*-EC-F | 915x610x69/90/110 | 1484x680x620 | 984x680x620 | 500x680x550 | 230 |
| BFU-4×2*-EC-F | 1220x610x69/90/110 | 1789x680x620 | 1289x680x620 | 500x680x550 | 230 |
| BFU-4×4*-EC-F | 1220x1220x69/90/110 | 1839x1289x670 | 1289x1289x670 | 550x1289x600 | 255 |
AF-BFU-Backward-curved
| Model | Dimensions Filter HEPA/ULPA (WxHxD) mm | Dimensions BFU (AxBxH) mm | Dimensions housing (A1xB1xH1) mm | Dimensions housing fan (A2xB2xH2) mm | Dimensions fan (mm) |
| BFU-2.5×2*-EC-E | 762x610x69/90/110 | 832x1060x710 | 832x680x710 | 380x832x560 | 400 |
| BFU-3×2*-EC-E | 915x610x69/90/110 | 984x1060x710 | 984x680x710 | 380x832x560 | 400 |
| BFU-3×2.5*-EC-E | 915x762x69/90/110 | 1364x832x710 | 984x832x710 | 380x832x560 | 400 |
| BFU-4×2*-EC-E | 1220x610x69/90/110 | 1289x1060x710 | 1289x680x710 | 380x832x560 | 400 |
| BFU-4×4*-EC-E | 1220x1220x69/90/110 | 1289x1669x710 | 1289x1289x710 | 380x832x560 | 400 |
| BFU-2×2*-EC-L | 610x610x69/90/110 | 1180x680x700 | 680x680x700 | 500x680x550 | 355 |
| BFU-2.5×2*-EC-L | 762x610x69/90/110 | 1332x680x700 | 832x680x700 | 500x680x550 | 355 |
| BFU-3×2*-EC-L | 915x610x69/90/110 | 1484x680x700 | 984x680x700 | 500x680x550 | 355 |
| BFU-4×2*-EC-L | 1220x610x69/90/110 | 1789x680x700 | 1289x680x700 | 500x680x550 | 355 |
